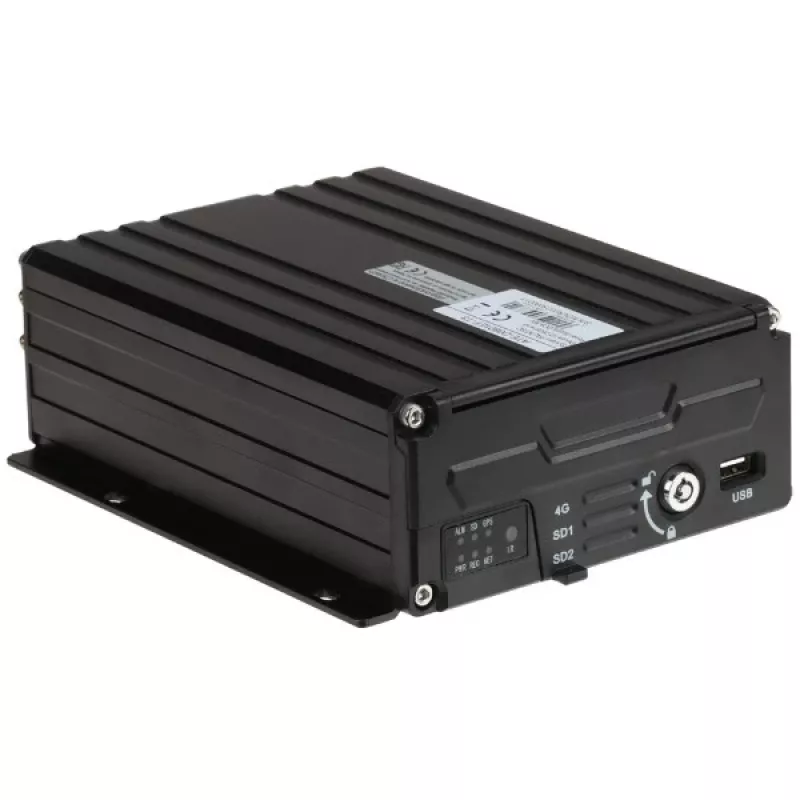

AUTONE ATE-D0801EF-T3 kannettava 8-kanavainen AHD-tallennin

Standard DVRs often fail in the demanding conditions of buses, trucks, and service vehicles, where vibration, voltage fluctuations, and mixed camera types are the norm. The ATE-D0801EF-T3 changes that with an aluminium alloy chassis, 8–36 V DC input, and automatic detection of AHD, TVI, CVI, and CVBS signals. This eight-channel mobile DVR records up to 1080P per channel using efficient H.265 or H.264 compression, ensuring crisp footage without excessive storage use.

Highlights

• 8-channel mobile DVR with AHD/TVI/CVI/CVBS auto-detection
• H.265 and H.264 compression for efficient 1080P recording per channel
• Dual storage: SATA HDD/SSD up to 4 TB plus SD card up to 256 GB
• Built-in 4G LTE, Wi-Fi, and GPS for live tracking and remote access
• 8 alarm inputs and 2 alarm outputs for event-triggered recording
• Wide 8–36 V DC power input with industrial anti-vibration design

In daily use

The DVR records continuously or on alarm, with a built-in G-sensor that flags sudden acceleration, braking, or impact. Footage is stored locally on the SATA drive and mirrored to the SD card if configured, reducing the risk of data loss. Remote monitoring is straightforward through the CMS platform or the iOS/Android app, giving fleet managers live views, GPS position, and playback from any location. The two USB 2.0 ports allow quick backup to external drives, while RS232, RS485, and Ethernet interfaces support integration with existing vehicle systems.

Full specifications

• Video Input: 8 channels, AHD/TVI/CVI/CVBS
• Video Compression: H.265 / H.264
• Recording Resolution: Up to 1080P (1920x1080) per channel
• Storage: 1x SATA HDD/SSD (up to 4TB) + 1x SD Card (up to 256GB)
• Power Input: DC 8-36V
• Connectivity: 4G LTE, Wi-Fi, GPS
• G-Sensor: Built-in
• Alarm Inputs/Outputs: 8x Alarm In, 2x Alarm Out
• Video Output: 1x VGA, 1x CVBS
• Audio Input/Output: 8x Audio In, 1x Audio Out
• Communication Interfaces: 2x RS232, 1x RS485, 1x RJ45 Ethernet
• USB Ports: 2x USB 2.0
• Operating Temperature: -20°C to +70°C
• Housing Material: Aluminum alloy
• Anti-Vibration/Shock: Industrial grade
• Remote Monitoring: CMS Platform, Mobile App (iOS/Android)

Final note

Built for the road, the ATE-D0801EF-T3 delivers reliable, high-quality surveillance in the toughest mobile environments.
