Adapteri HSD Z female - HSD Z female DeLOCK 90485

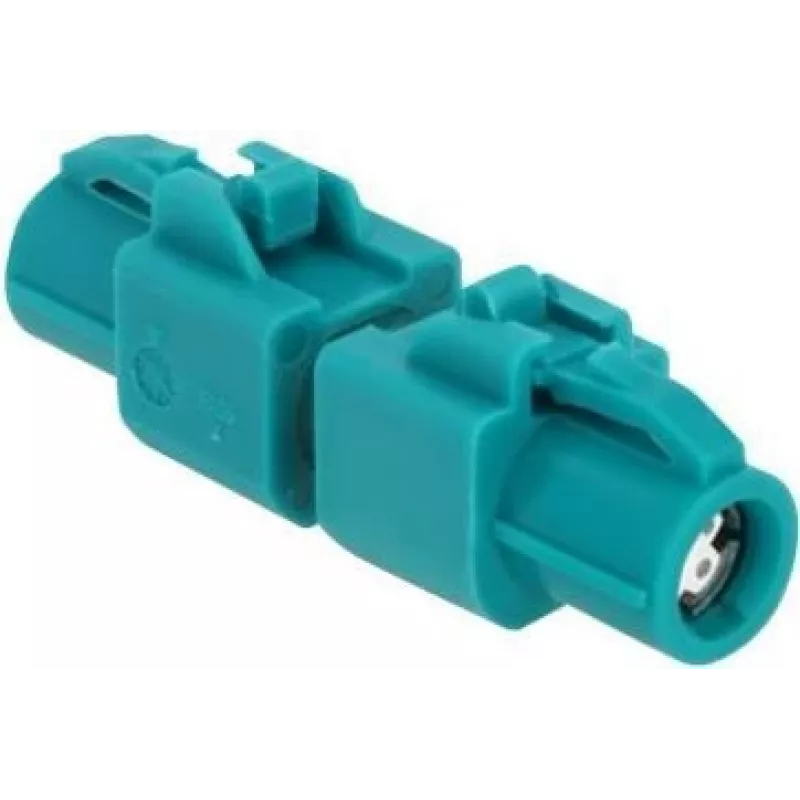

The DeLOCK Adapter HSD Z female to HSD Z female is a compact coupling solution for devices and components that use HSD Z connectors. It provides two female HSD Z ports in a small blue housing and is intended for use in electronic systems, including automotive applications where HSD Z connectivity is required.

Advantages

The adapter offers straightforward inline coupling of two HSD Z female connectors without signal conversion. Its compact dimensions (14 mm × 42.4 mm × 12 mm) and durable blue housing make it easy to install in confined spaces. Supplied in a polybag, the adapter is suitable for professional and personal use and maintains connector polarity and contact alignment.

Suitable for

Key specifications

How to use

Align the mating HSD Z male connector with each female end of the adapter and insert fully until the connector seats. Ensure connectors are oriented correctly to preserve signal alignment. Do not force connectors; if resistance is felt, check orientation and contacts before proceeding.

Recommendations

Use the adapter in environments and systems that match the electrical and mechanical requirements of HSD Z connectors. Avoid exposure to excessive moisture or mechanical stress and verify compatibility with the vehicle or device wiring harness before installation.
