Aerocool LUXRGB550M RGB modulaarinen PC-virtalähde 550W 80Plus Bronze 230V musta

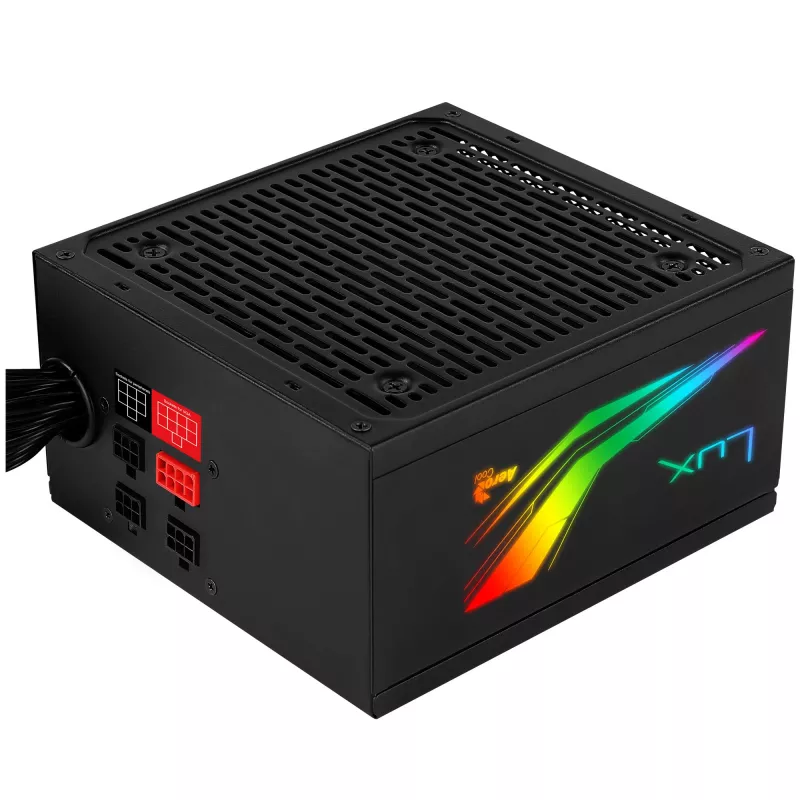

The Aerocool LUXRGB550M 550W is a semi-modular power supply designed for desktop PC builds. It delivers 550 W of continuous power with 80 PLUS Bronze (230V EU) certification and up to 88% efficiency. The unit includes a 20+4 pin ATX motherboard connector, active cooling via a 120 mm fan, and a Prism RGB LED lighting system with 13 selectable effects controlled by an LED switch.

Advantages

The semi-modular design simplifies installation and cable management by allowing the use of only required cables. 80 PLUS Bronze certification ensures efficient power delivery and reduced energy loss. The integrated 120 mm fan provides active cooling for sustained operation under load. Prism RGB LEDs with 13 lighting effects add customizable aesthetics without additional controllers.

Suitable for

• Home and office desktop PC builds
• Mid-range gaming systems
• System upgrades where modular cabling improves airflow
• Cases with RGB lighting or transparent side panels

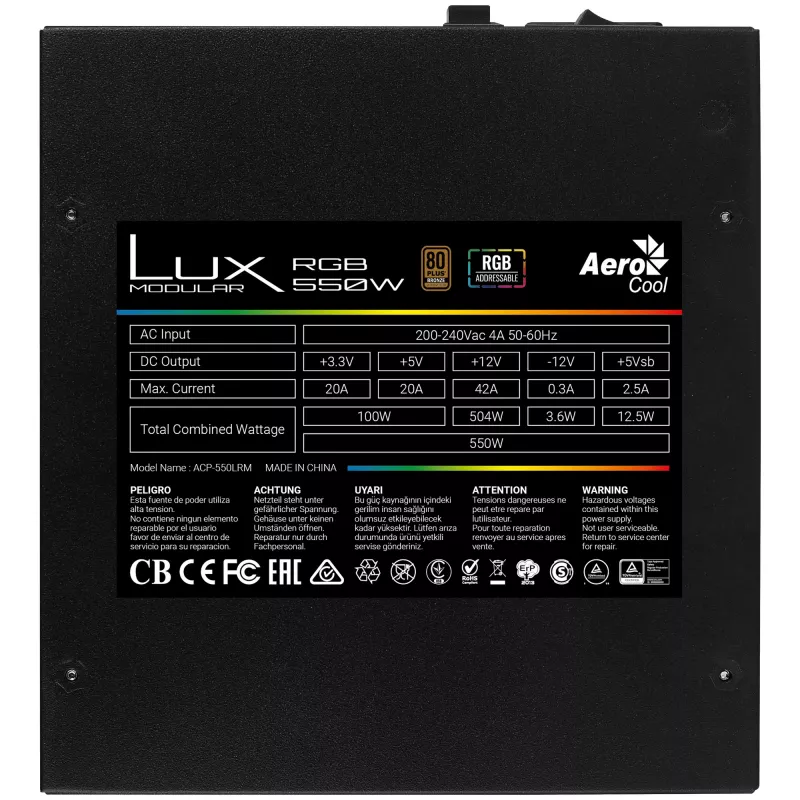

Key specifications

• Total power: 550 W
• Efficiency: up to 88% (80 PLUS Bronze, 230V EU)
• Motherboard connector: 20+4 pin ATX
• Fan diameter: 120 mm
• Input voltage: 200–240 V
• Product colour: Black

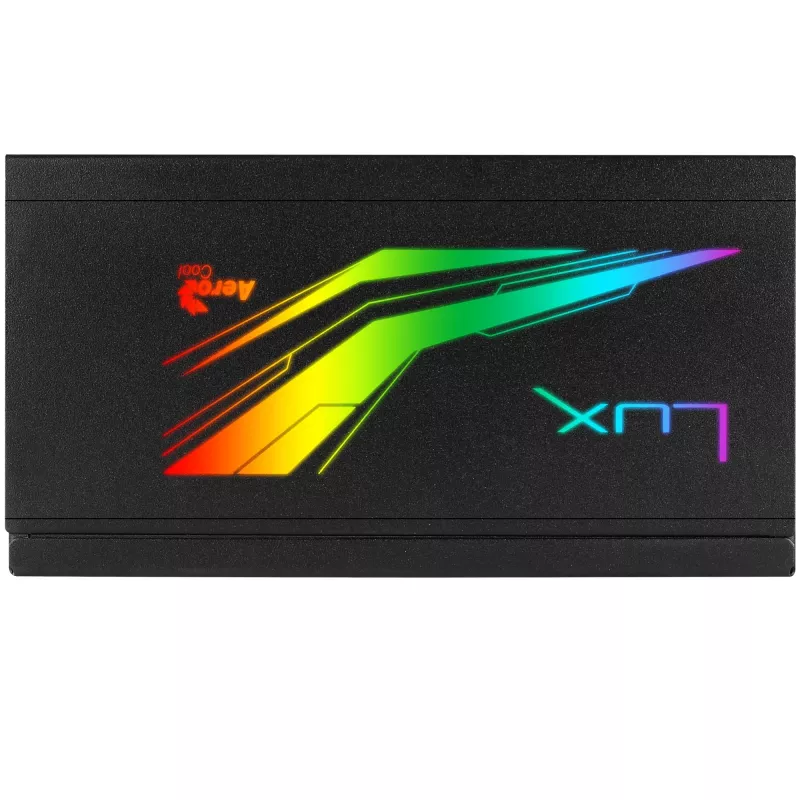

• Lighting: Prism RGB LED, 13 effects, LED control switch

How to use

Install the Aerocool LUXRGB550M into your PC case following standard PSU mounting orientation and secure it with the supplied screws. Connect the 20+4 pin ATX connector to the motherboard and attach only the modular cables required for your drives and GPU to improve airflow. Connect the mains cable to a properly rated outlet (200–240 V). Use the LED control switch on the unit to cycle through the 13 RGB lighting effects.

Recommendations

For stable operation, ensure your system power draw remains within the PSU’s 550 W rating and maintain adequate case ventilation. Use only the supplied or manufacturer-recommended cables and avoid overloading individual rails beyond their specified limits.
