AJA 12G-AMA 12G-SDI audio embedder/disembedder analogisella audiolle

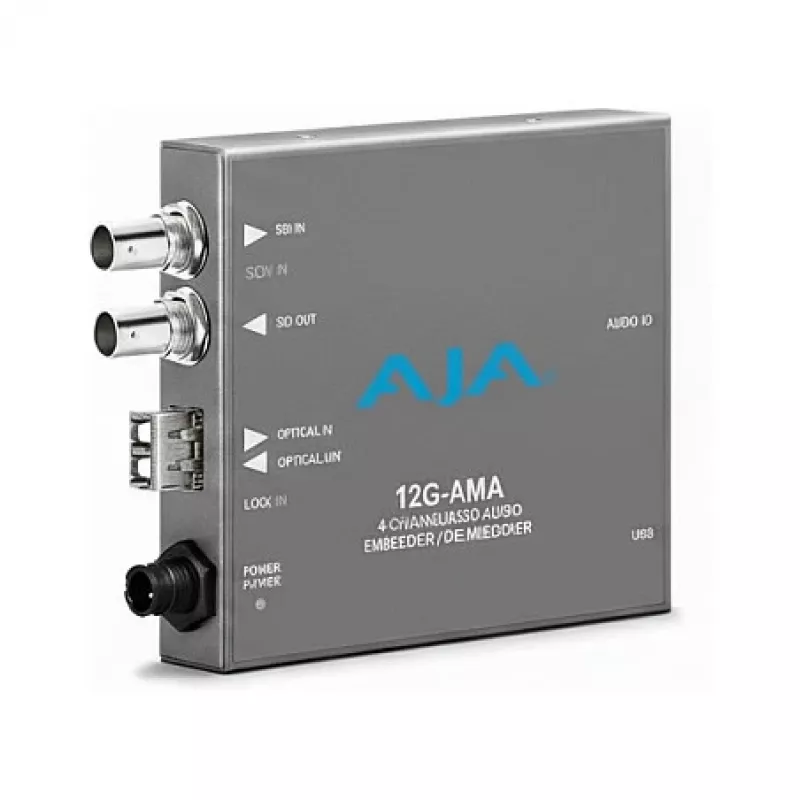

The AJA 12G-AMA is a professional Mini-Converter that embeds or disembeds up to four channels of analog audio over a single 12G-SDI connection. Supporting SDI standards from SD to 12G, it handles video formats up to 4K/UltraHD at 60p. The unit features one 12G-SDI input with a loop-through output and a processed output, plus four balanced XLR analog audio inputs and outputs. Control is via USB 2.0 using AJA Mini-Config software or DIP switches. Powered by +5V DC (AJA DWP-U-R1 universal power supply included), it consumes only 4.5W typical. Ideal for broadcast, production, and post-production environments requiring reliable audio embedding or disembedding.

Advantages

Compact and robust Mini-Converter design ensures easy integration into any setup. Supports the latest 12G-SDI standard for 4K/UltraHD workflows while maintaining backward compatibility with 6G, 3G, HD, and SD-SDI. Four balanced analog audio channels provide high-quality 24-bit/48 kHz audio. Loop-through output allows daisy-chaining without signal degradation. Low power consumption and included universal power supply make it field-ready.

Suitable for

• Broadcast studios requiring audio embedding/disembedding
• Live production and event video systems
• Post-production suites integrating analog audio with SDI
• Remote and mobile production units

Key specifications

• Video Input: 1x 12G-SDI BNC
• Video Output: 1x 12G-SDI BNC (Loop-through), 1x 12G-SDI BNC (Processed)
• Audio Input: 4x Analog Audio XLR (Balanced)
• Audio Output: 4x Analog Audio XLR (Balanced)
• SDI Standards: 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI, SD-SDI
• Audio Channels: 4 (selectable for embedding/disembedding)
• Audio Sample Rate: 48 kHz
• Audio Bit Depth: 24-bit
• Video Formats: Up to 4K/UltraHD (4096x2160/3840x2160) at 60p
• Control: USB 2.0 (via AJA Mini-Config software), DIP switches
• Power Consumption: 4.5W (typical)
• Power Supply: +5V DC (AJA DWP-U-R1 universal power supply included)
• Form Factor: Mini-Converter
• Operating Temperature: 0 to 40°C (32 to 104°F)
• Operating Humidity: 10 to 90% non-condensing

Recommendations

For reliable analog audio integration into SDI workflows, the AJA 12G-AMA offers professional-grade performance in a compact form factor. Its support for 12G-SDI ensures future-proofing for 4K applications.
