Ajastin Brennenstuhl 1506130 analoginen valkoinen 230V 13A

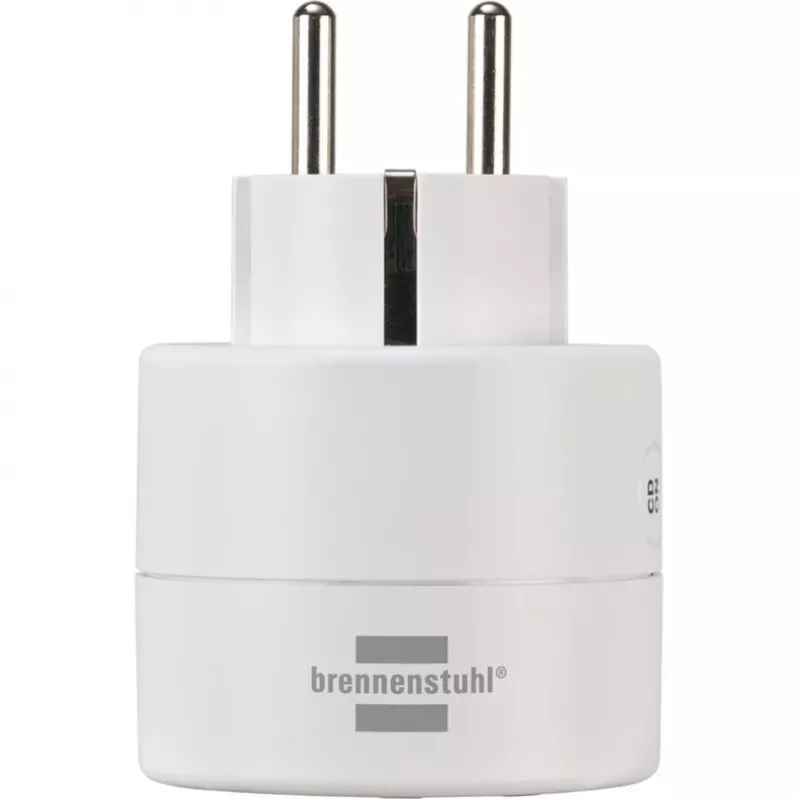

The Brennenstuhl 1506130 Timer is an analog countdown socket designed for indoor use to switch connected electronic devices on and off automatically. It supports a 230 V supply and a maximum load of 13 A. The compact white housing and a red LED display provide a clear status indication while keeping installation and operation straightforward.

Advantages

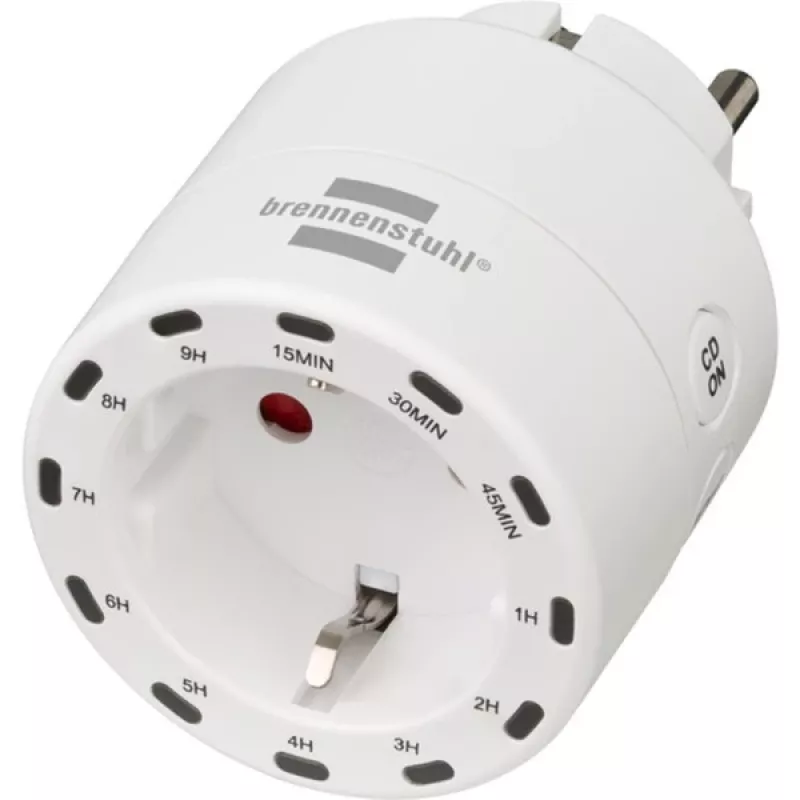

The timer offers selectable countdown intervals in 12 steps from 15 minutes up to 9 hours, with simple control using two buttons for one-time (CD/ON) or daily repeating (Repeat) countdowns. The unit combines easy rotary/button operation with a compact, lightweight design and a visible red LED display. It is rated for standard indoor protection class IP20.

Suitable for

• Switching lamps and lighting circuits on/off for a defined period
• Controlling small household appliances such as fans or heaters (within 13 A limit)
• Automating devices that require timed operation or energy saving

Key specifications

• Model: Brennenstuhl 1506130
• Supply voltage: 230 V AC
• Maximum current: 13 A

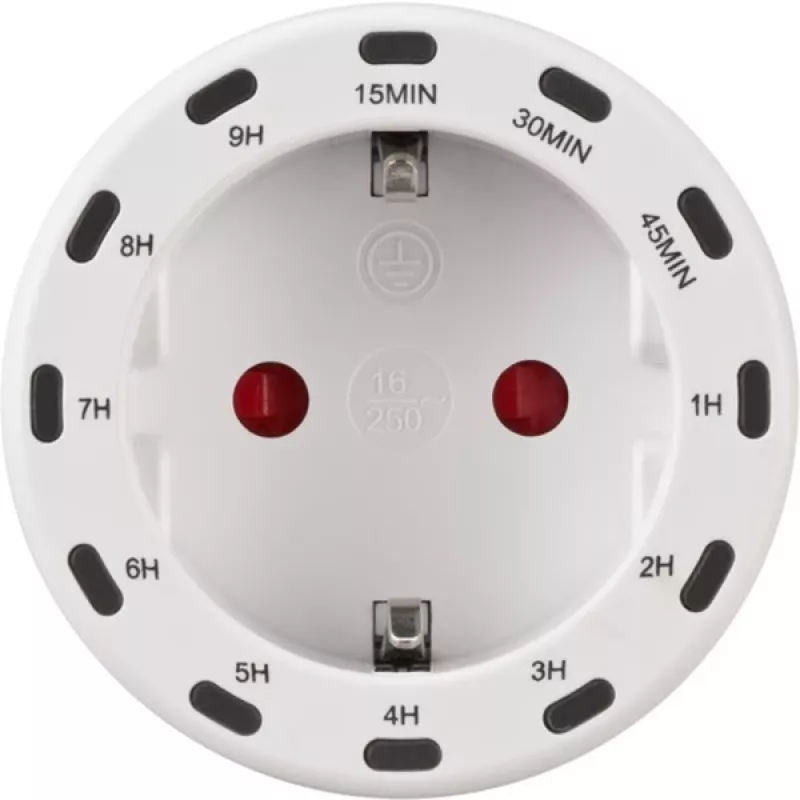

• Countdown range: 15 minutes to 9 hours (12 steps)
• Display: red LED
• Protection class: IP20 (indoor use)
• Colour: White
• Dimensions (approx.): 85 mm depth, 58 mm height
• Weight (approx.): 110 g

How to use

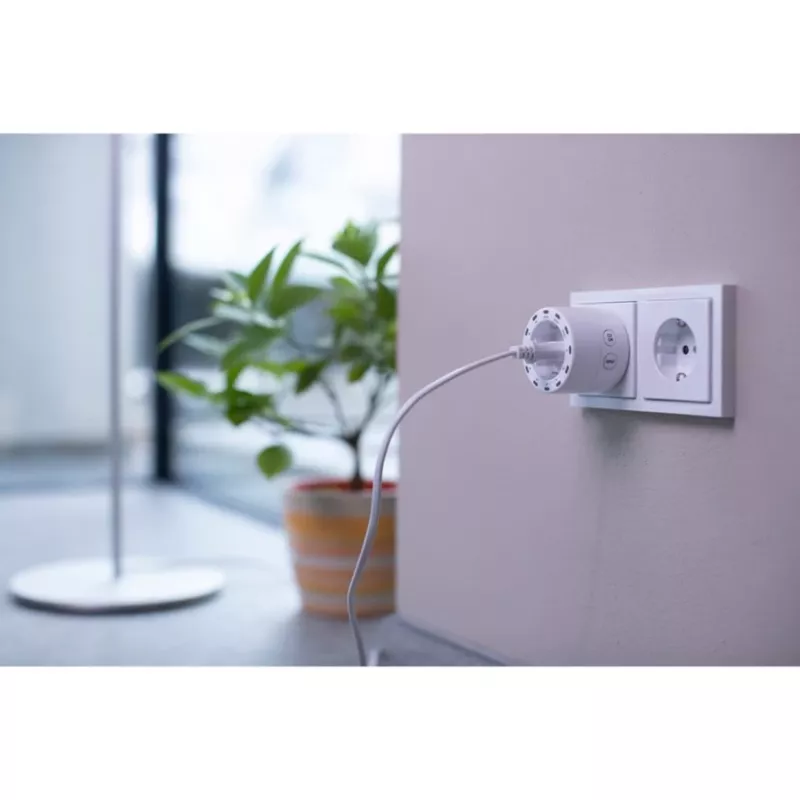

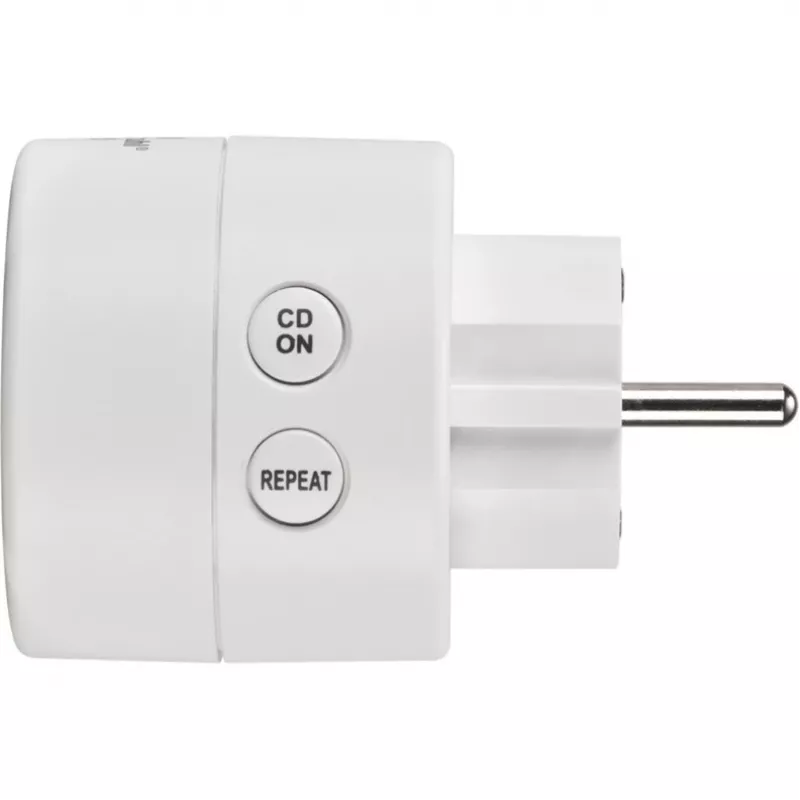

Plug the timer into a standard indoor socket and connect the device to be controlled to the timer outlet. Use the rotary control and the two buttons to set the desired countdown: press CD/ON for a one-time countdown or Repeat for a daily repeating countdown. Select the required countdown duration using the available 12-step settings between 15 minutes and 9 hours. The red LED indicates operation and countdown status.

Recommendations

Use the timer indoors only and ensure the connected load does not exceed 13 A. Avoid exposure to moisture or outdoor conditions due to the IP20 rating. For reliable operation, place the timer in a stable, accessible position and check the connected device’s power rating before use.
