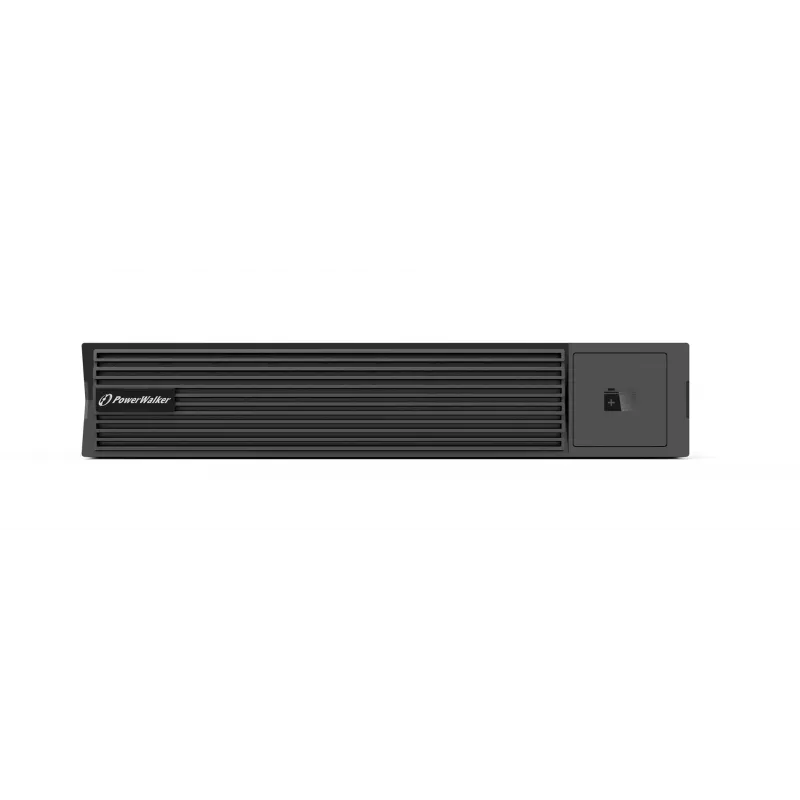

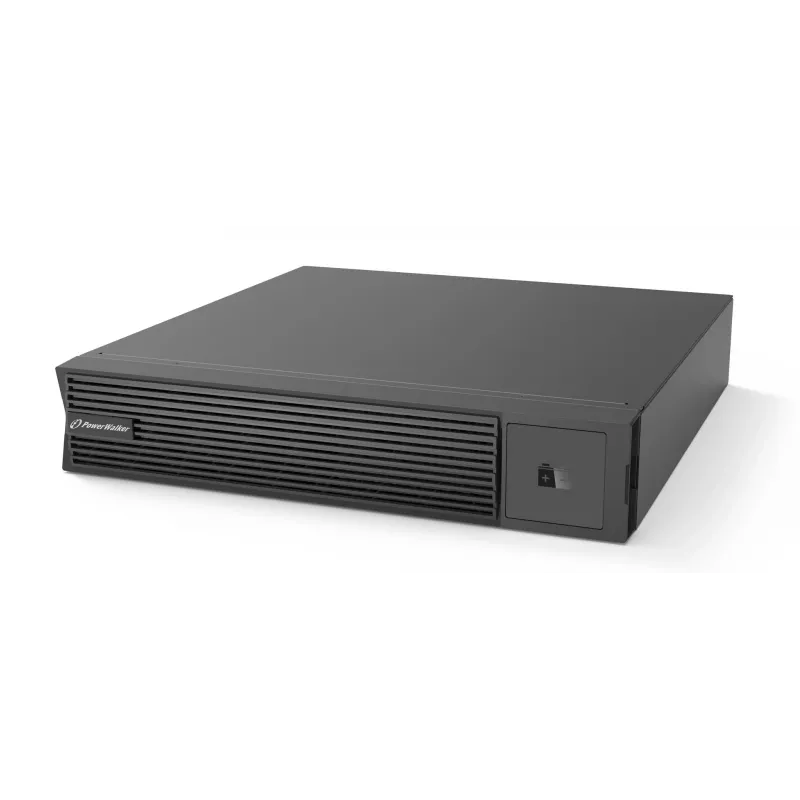

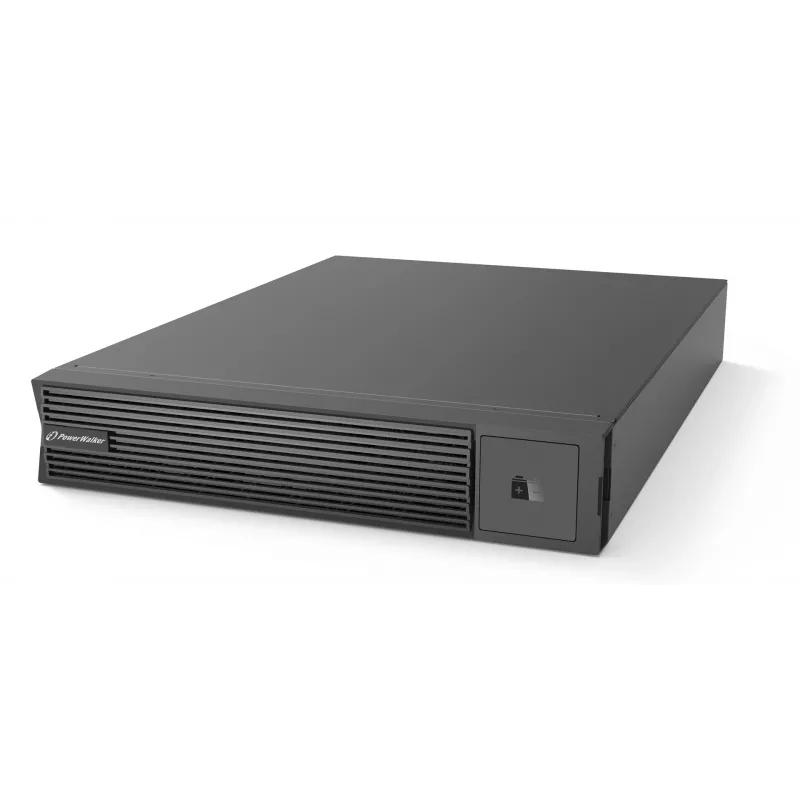

Akku PowerWalker BP I36R-6x9Ah

The PowerWalker BP I36R-6x9Ah is a battery pack designed for use with VFI 1000/1500 ICR IOT UPS systems. It contains six 12V/9Ah batteries arranged as two strings of three batteries to provide a nominal operating voltage of 36VDC. The unit comes in a black housing and has compact dimensions of 85.5 mm (height) × 438 mm (width) × 445 mm (depth).

Advantages

The battery pack provides a straightforward replacement or expansion option for compatible UPS models, offering a standardized 36VDC output from three-series strings. Its compact footprint allows installation in constrained spaces, and the included six 12V/9Ah batteries simplify maintenance and inventory tracking.

Suitable for

• Power backup for VFI 1000/1500 ICR IOT UPS units
• Server closets and small network cabinets
• Office equipment and communications racks requiring 36VDC battery modules

Key specifications

• Model: PowerWalker BP I36R-6x9Ah (MPN: 10134053, EAN: 4260074982930)
• Configuration: 2 strings × 3 batteries
• Individual battery rating: 12V / 9Ah
• Nominal pack voltage: 36VDC
• Number of batteries included: 6 pcs
• Colour: Black
• Dimensions (H×W×D): 85.5 mm × 438 mm × 445 mm

How to use

Install the battery pack in accordance with the UPS manufacturer’s instructions for the VFI 1000/1500 ICR IOT series. Ensure the UPS is powered down or in a safe maintenance state before connecting or disconnecting batteries. Verify correct polarity and secure connections, then power the UPS and allow any internal charging and battery detection procedures to complete before putting the load on the system.

Recommendations

Store and operate the battery pack in a dry, ventilated environment within the temperature range specified by the UPS manufacturer. Do not open or disassemble individual batteries. Replace all batteries in the pack at the same time when end-of-life is reached and follow local regulations for battery disposal or recycling.
