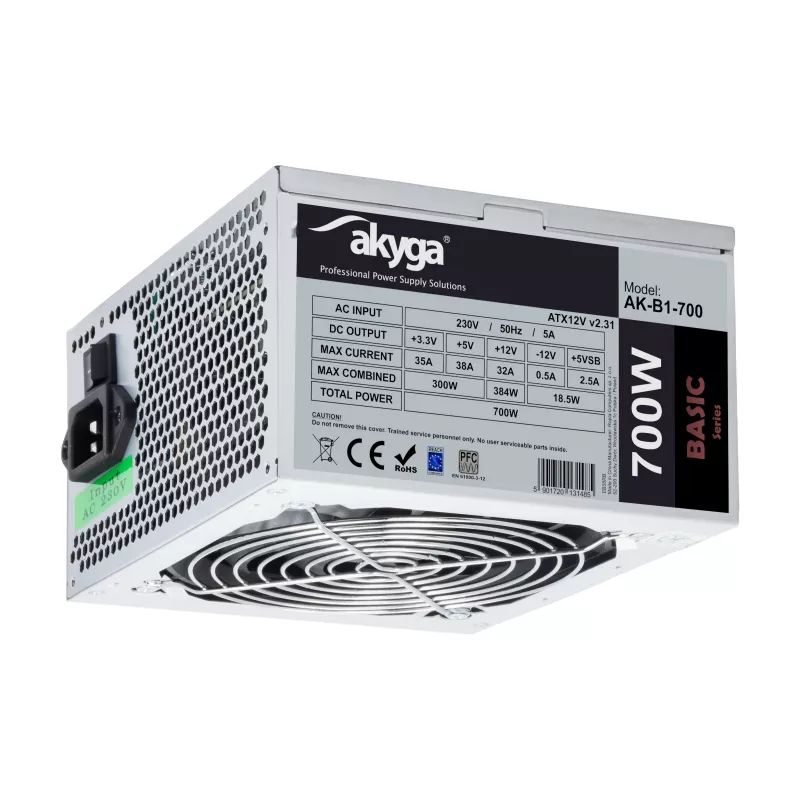

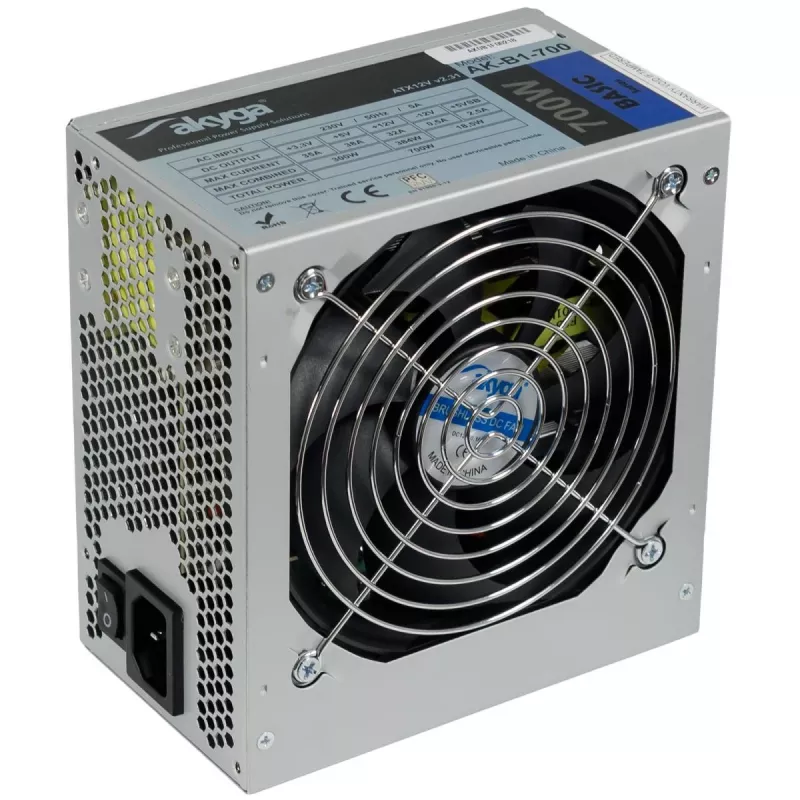

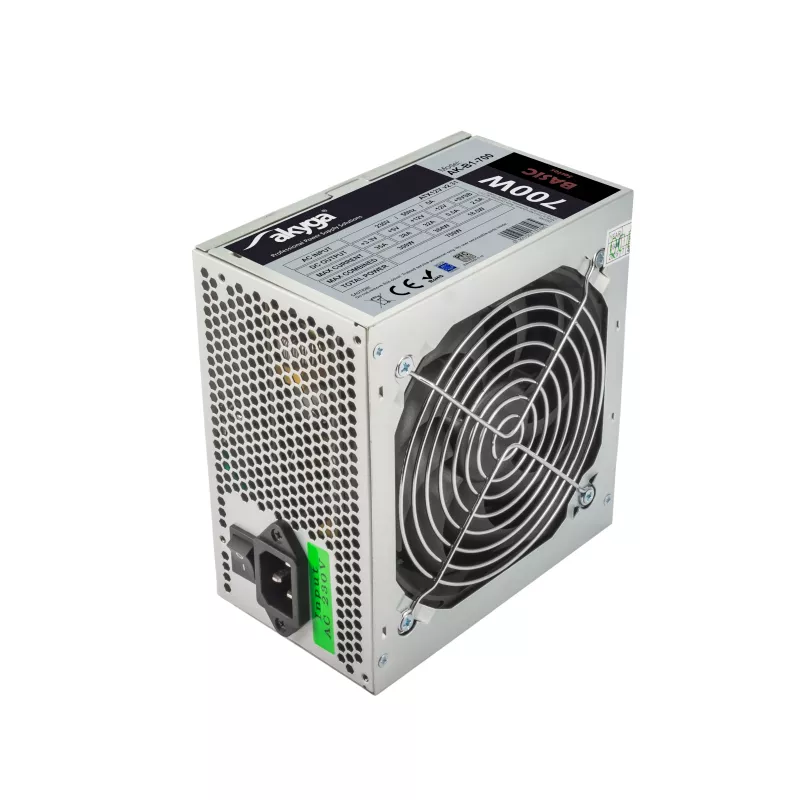

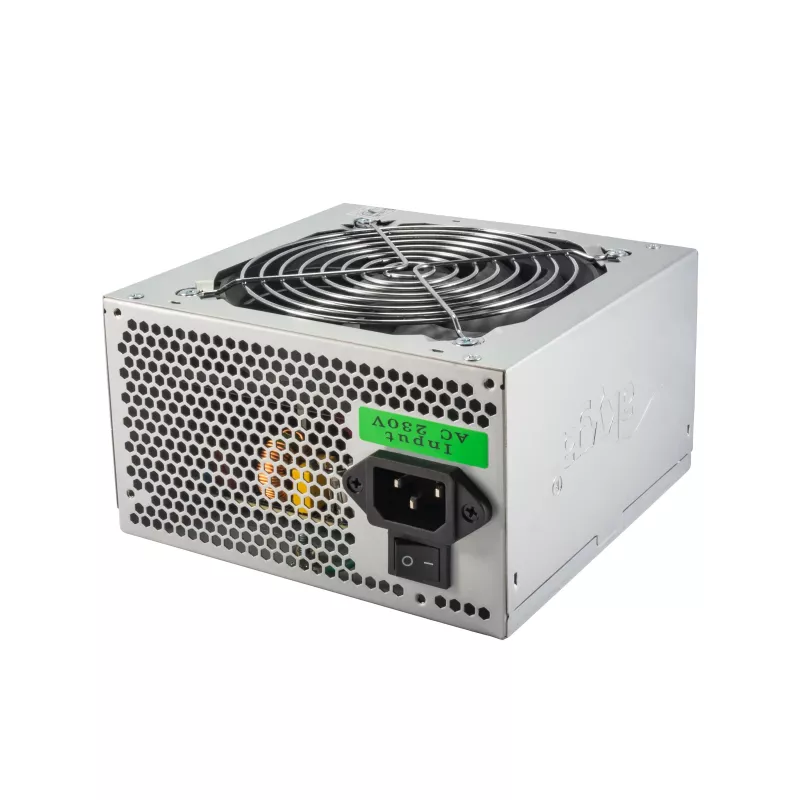

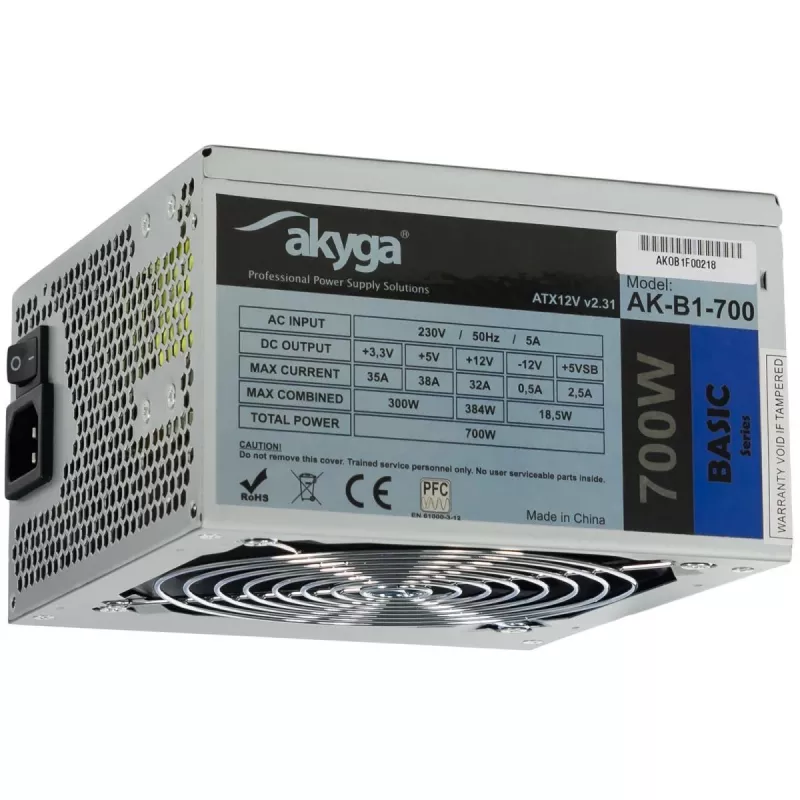

Akyga AK-B1-700 Basic 700 W ATX-virtalähde, passiivinen PFC, 120 mm:n tuuletin, harmaa

The Akyga AK-B1-700 is a 700 W ATX power supply designed for desktop computers. It features a 120 mm fan, passive PFC, and a non-modular cabling design.

Key features

• 700 W total power
• 120 mm fan for cooling
• Passive PFC
• Non-modular cabling
• Manual on/off switch
• Protection features: over current, over power, over voltage, overheating, short circuit
• Galvanized steel construction
• Grey colour

Specifications

• Form factor: ATX
• ATX version: 2.31
• AC input voltage: 220 - 230 V
• AC input frequency: 50 Hz
• Efficiency: 70%
• MTBF: 100000 h
• Operating temperature: 5 - 50 °C
• Dimensions (W x D x H): 150 x 160 x 85 mm
• Weight: 1.26 kg

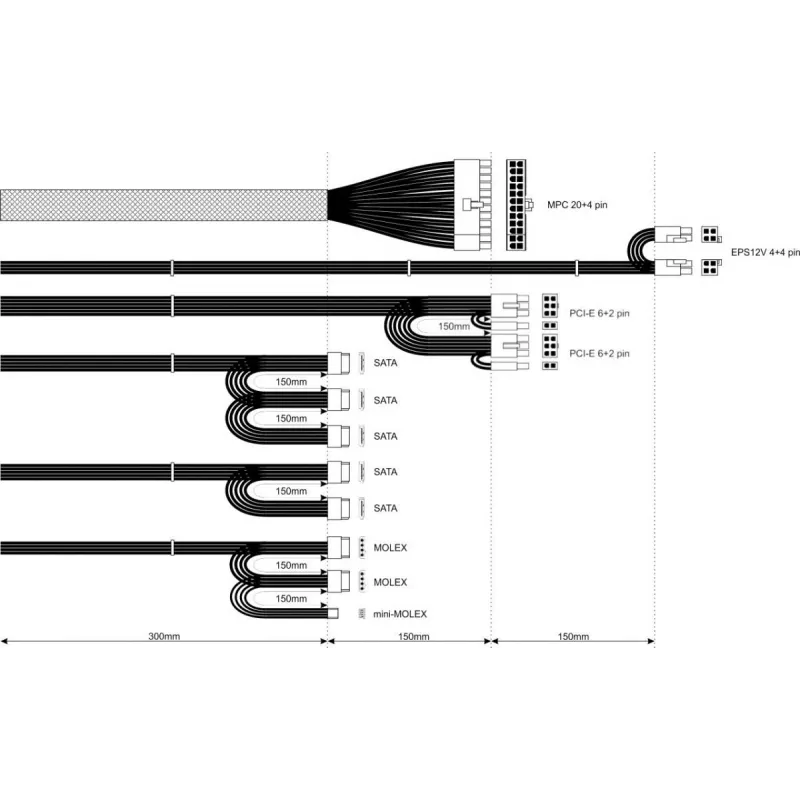

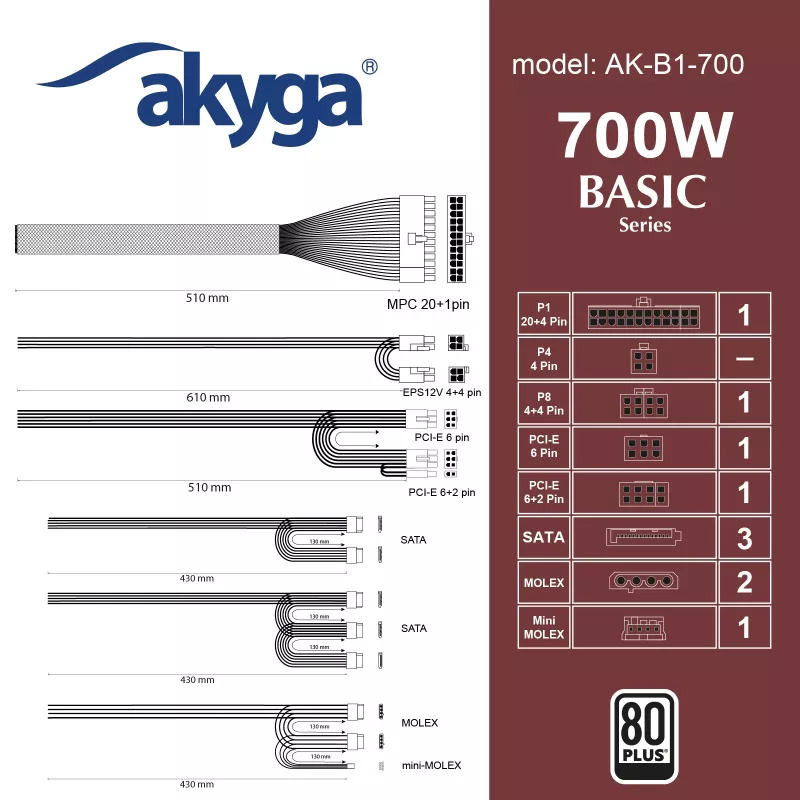

• Motherboard power connector: 20+4 pin ATX
• Motherboard power cable length: 45 cm
• EPS power connector (4+4 pin): Yes
• EPS cable length: 60 cm
• PCI Express power connectors (6+2 pin): 2
• PCI Express power cable length: 45 cm
• SATA power connectors: 5
• SATA power cable length: 150,300 mm
• Peripheral (Molex) power connectors (4-pin): 2
• Peripheral (Molex) power cable length: 150,300 mm

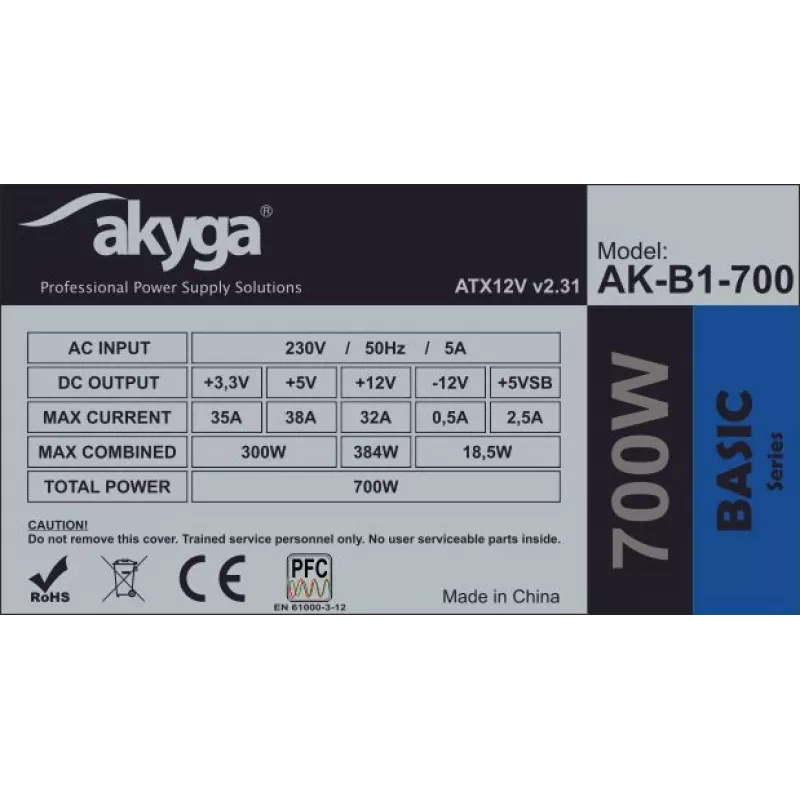

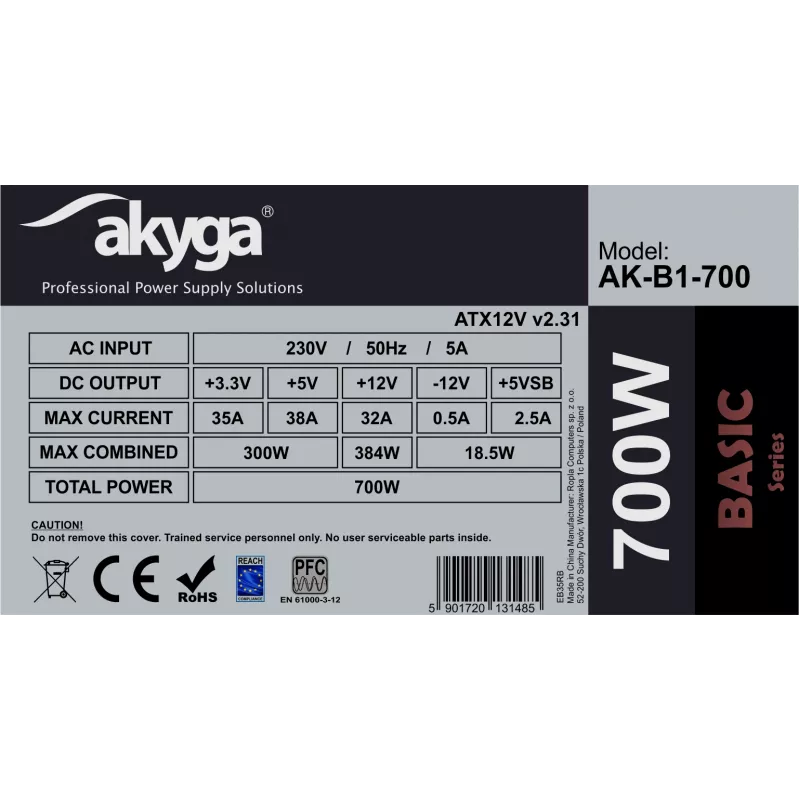

• Combined power (+3.3V): 300 W
• Combined power (+5V): 300 W
• Combined power (+12V): 384 W
• Combined power (-12V): 18.5 W
• Combined power (+5Vsb): 18.5 W
• Max output current (+3.3V): 35 A
• Max output current (+5V): 38 A
• Max output current (+12V): 32 A
• Max output current (-12V): 0.5 A
• Max output current (+5Vsb): 2.5 A
• Certification: CE, FCC, RoHS, REACH
