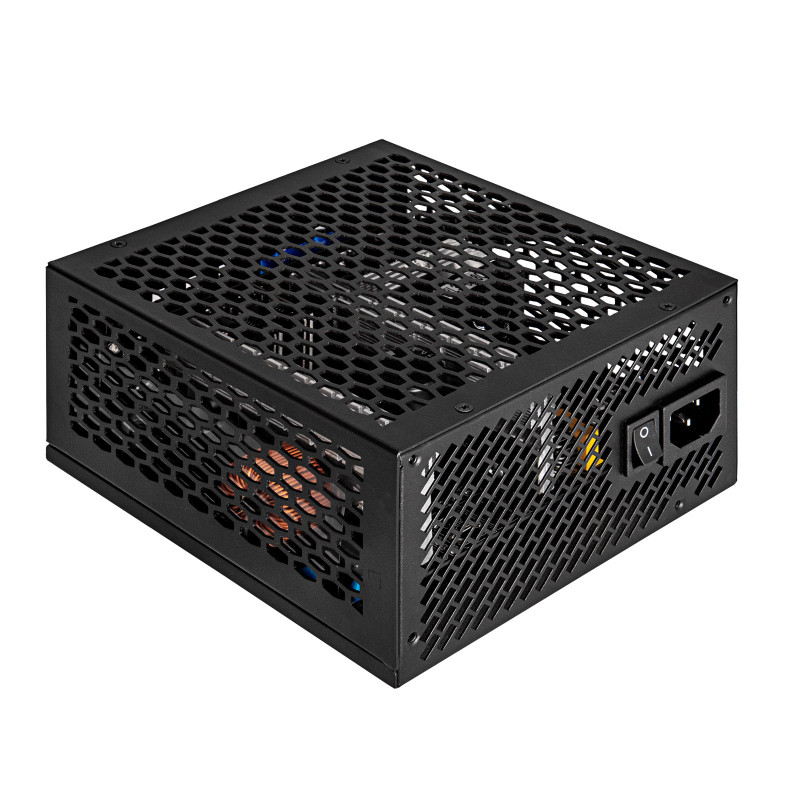

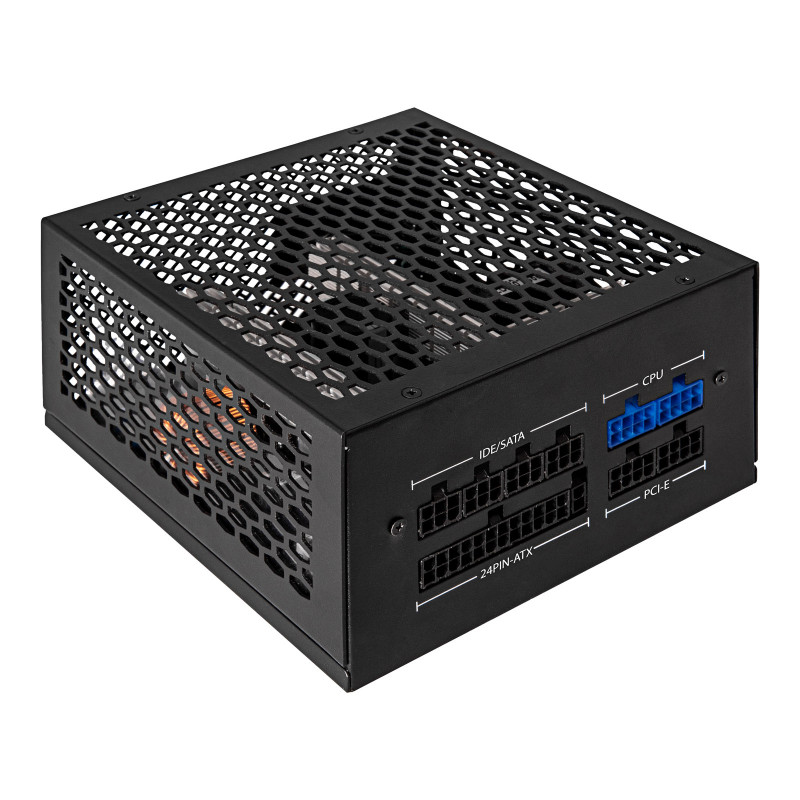

Akyga AK-FL-300 300 W ATX-virtalähde, tuuletinon, täysin modulaarinen, 80 PLUS, aktiivinen PFC

The Akyga AK-FL-300 is a 300 W ATX power supply with a modular construction and no fan, making it completely silent. It provides stable power for most home and office computer configurations and offers various connectors for compatibility with many components.

Key features

• Modular construction for better cable organization
• Fanless design for silent operation
• Active PFC filter
• 80 PLUS compatibility
• Mechanical switch
• Ground wire
• Protection: OVP, OCP, OPP, OTP, SCP, UVP

Specifications

• Product type: Computer power supply
• Format: ATX 2.31
• Series: Fanless
• Supply voltage: 230 V
• Power consumption: 5 A
• Efficiency: > 80 %
• Current on +3.3V rail: 18 A
• Current on +5V rail: 18 A
• Maximum load on +3.3V and +5V line: 75 W
• Current on +12V rail: 25 A
• Maximum load on 12V line: 212 W
• Maximum power: 300 W

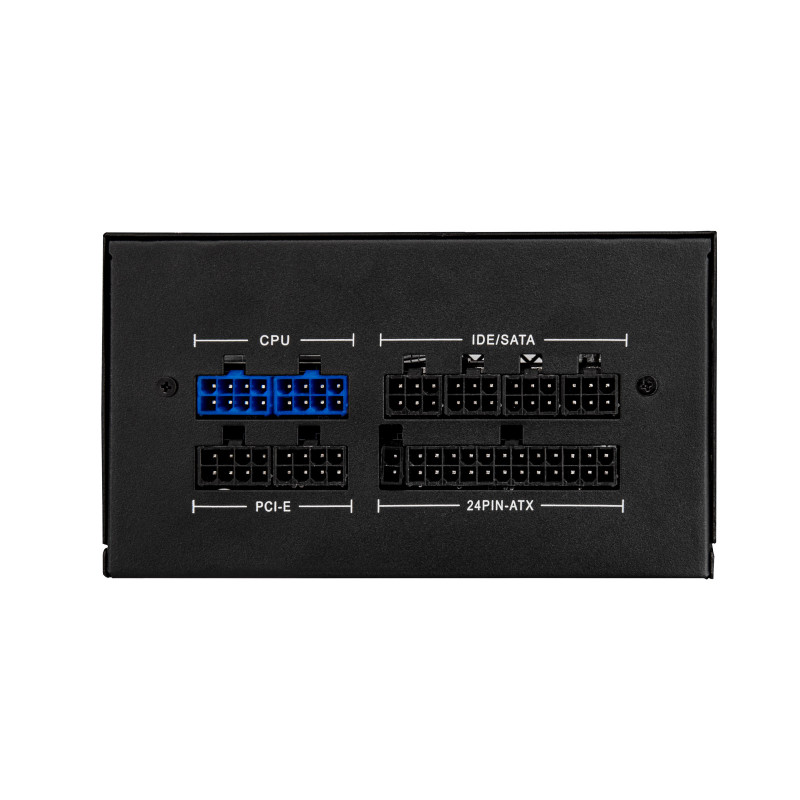

• Mainboard power connector: 24-pin
• Power connector EPS12V 8 pin: 1 pc (4+4-pin)
• Power connector PCI-E 6+2 pin: 1 pc
• Molex connector: 2 pcs
• SATA connector: 4 pcs
• Modular power supply: Yes
• PFC filter: Active
• Mechanical switch: Yes
• Ground wire: Yes

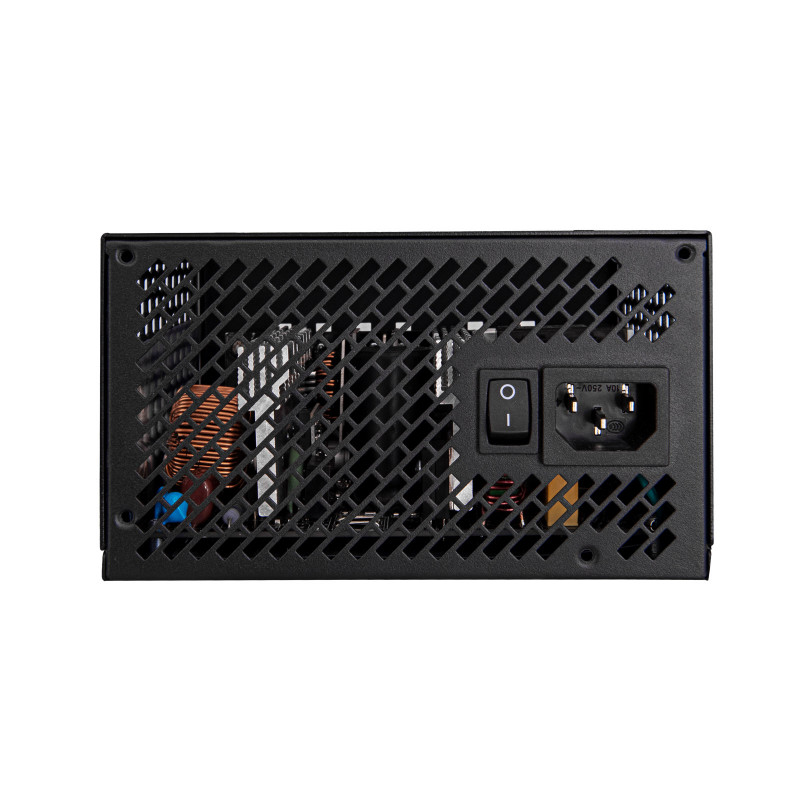

• Power supply connector: IEC C14
• Cable plug #1: Hybrid standard C/E/F (CEE 7/7)
• Cable plug #2: IEC C13
• Power cable included: Yes
• Material: Galvanized steel
• Product color: Black
• MTBF: 100000 h
• Temperature: 0 - 40 °C
• Package: EcoBox
• Product size (L x W x H): 85 x 150 x 160 mm
• Net weight: 1184 g
• CE compatibility: Yes
• RoHS compatibility: Yes
• REACH compatibility: Yes
