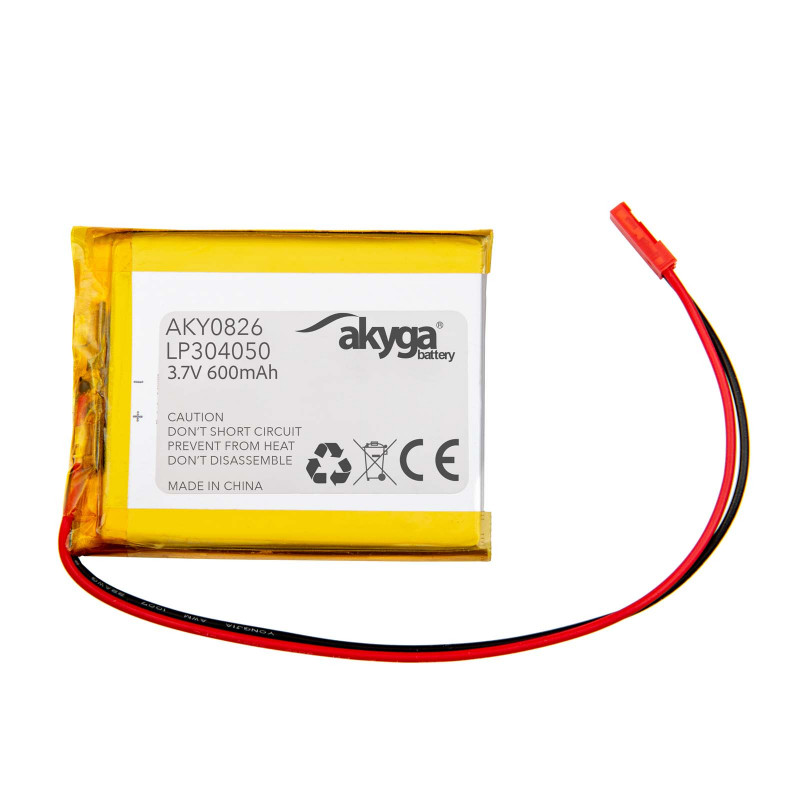

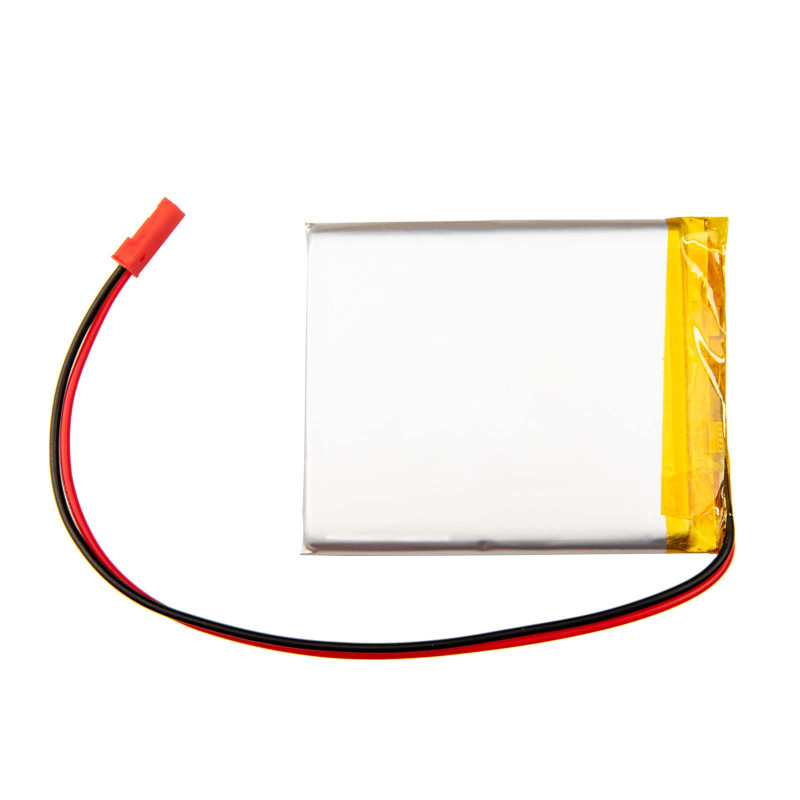

Akyga AKY0826 LP304050 Li-Po-akku 3,7 V 600 mAh PCM:llä, JST 2,54 mm 2-pin-liitin, 150 mm kaapeli

The Akyga AKY0826 is a lithium-polymer battery with a nominal voltage of 3.7 V and a capacity of 600 mAh. It features a PCM module for protection against overcharging, over-discharging and short-circuiting, and comes with 150 mm leads terminated with a 2-pin JST connector.

Key features

• PCM protection against overcharging, over-discharging and short-circuiting
• 150 mm leads with 2-pin JST connector for quick connection without soldering
• Compact dimensions and low weight
• Long service life with up to several hundred charge cycles
• Operates across a wide temperature range

Specifications

• Brand: Akyga
• MPN: AKY0826
• Product type: Polymer Li-Ion Battery
• Cell type: Li-Po
• Rated voltage: 3.7 V
• Battery capacity: 600 mAh
• Protection: PCM
• Leads: wires, connector+socket
• Connector type: 2,54 JST, 2 pins
• Connector part number: JST SYP-02T-1
• Cable length: 150 mm
• Thickness: 3 mm
• Width: 40 mm
• Height: 50 mm
• Product size (L x W x H): 40 x 50 x 3 mm
• Net weight: 14 g
• Package: UniBag
• EAN code: 5903622760527
