Akyga Basic AK-B1-550 ATX-virtalähde 550 W, 120 mm tuuletin, passiivinen PFC, harmaa

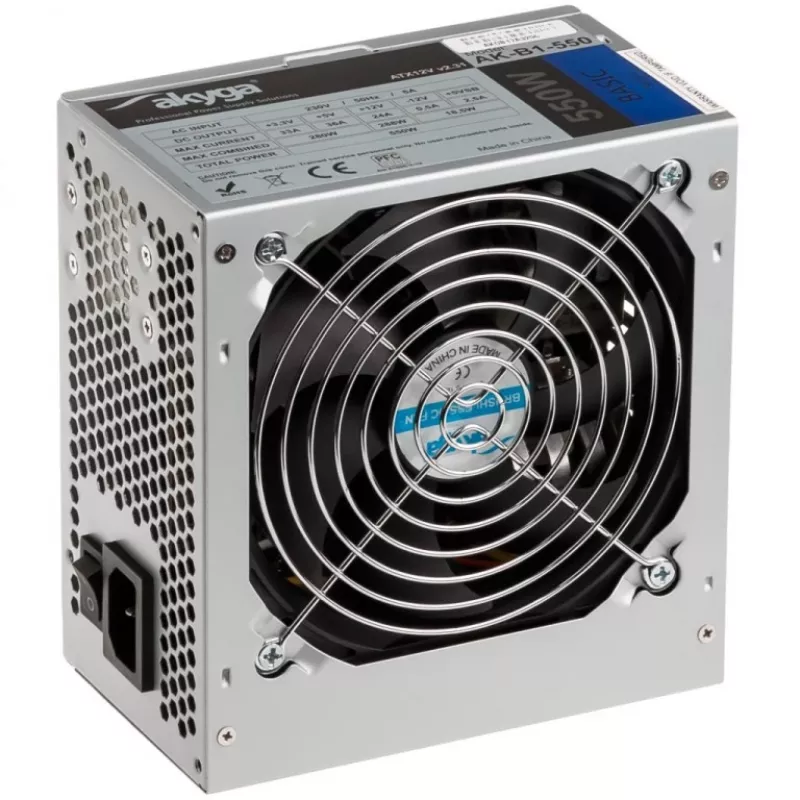

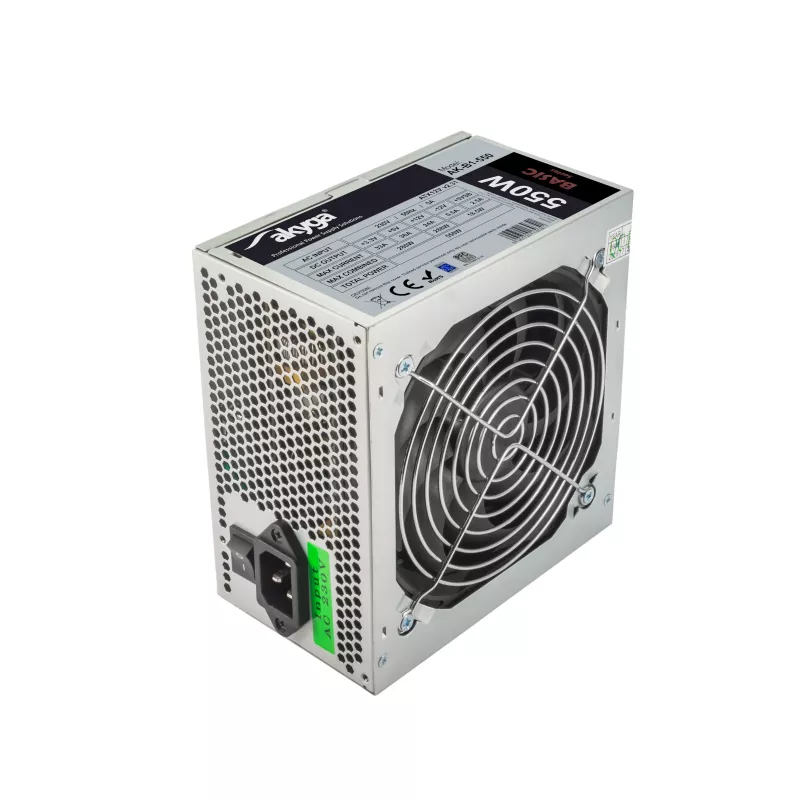

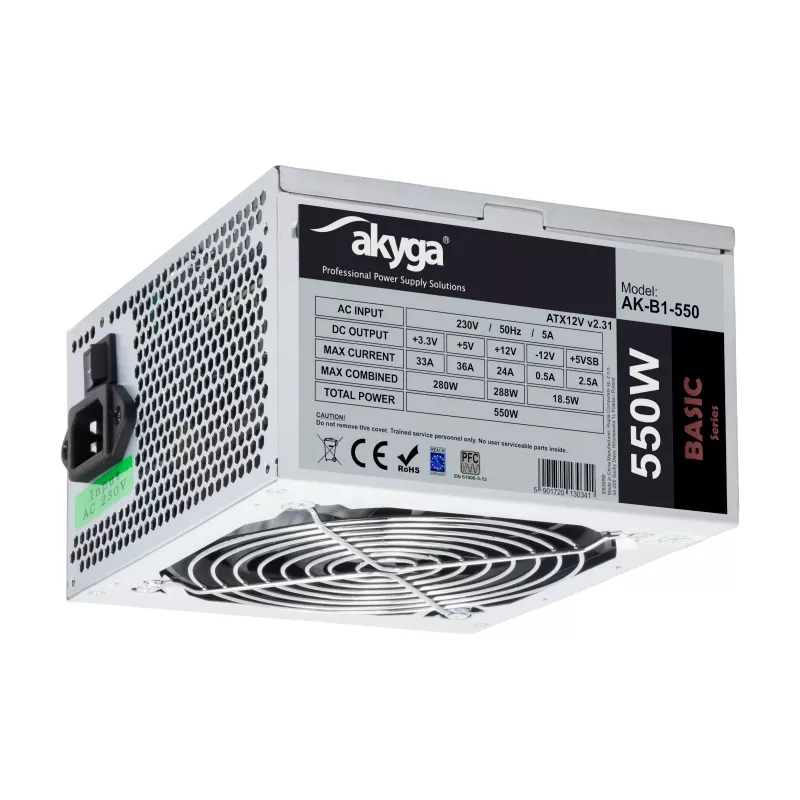

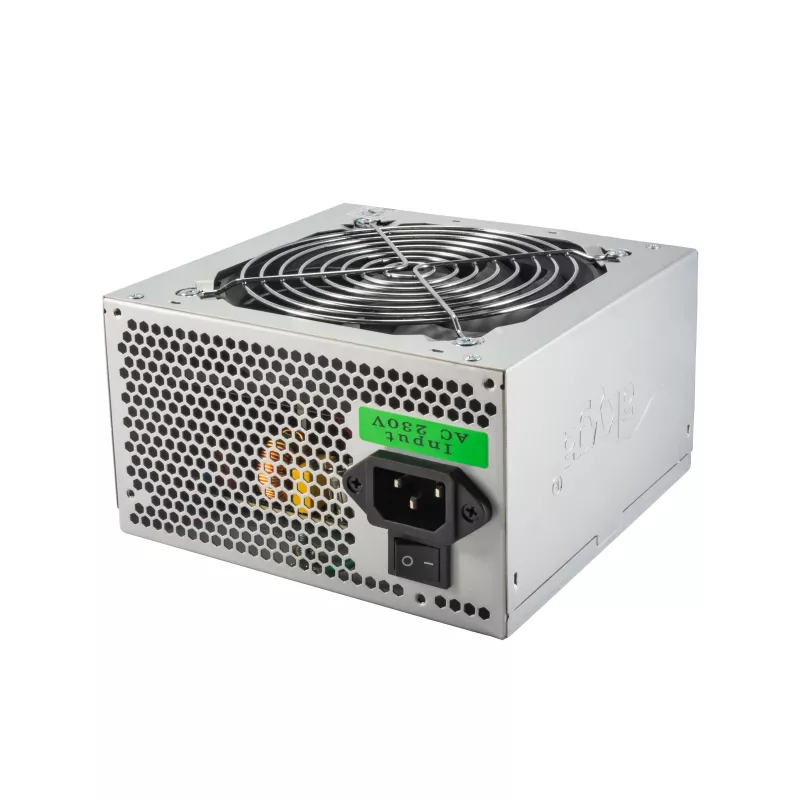

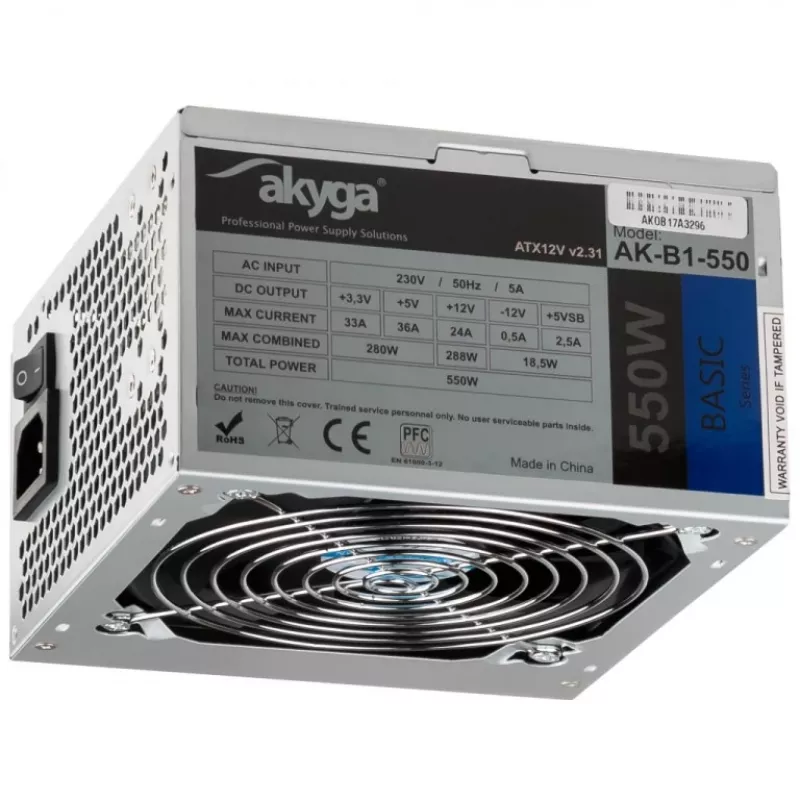

The Akyga Basic AK-B1-550 is a 550 W ATX power supply designed for desktop PCs. It features a 120 mm top-mounted fan and a grey galvanized steel housing.

Key features

• 550 W total power
• 120 mm fan
• ATX 2.31 form factor
• Non-modular cabling
• Passive PFC
• Manual on/off switch
• Protection: OVP, OCP, OPP, OTP, SCP

Specifications

• Purpose: PC
• Supported motherboard form factors: ATX
• Power supply unit (PSU) form factor: ATX
• ATX version: 2.31
• Total power: 550 W
• Peak power: 550 W
• AC input voltage: 230 V
• Input current: 5 A
• Efficiency: 70 %
• Cooling type: Active
• Number of fans: 1
• Fan diameter: 120 mm
• Fan location: Top
• Product colour: Grey
• Material: Galvanized steel

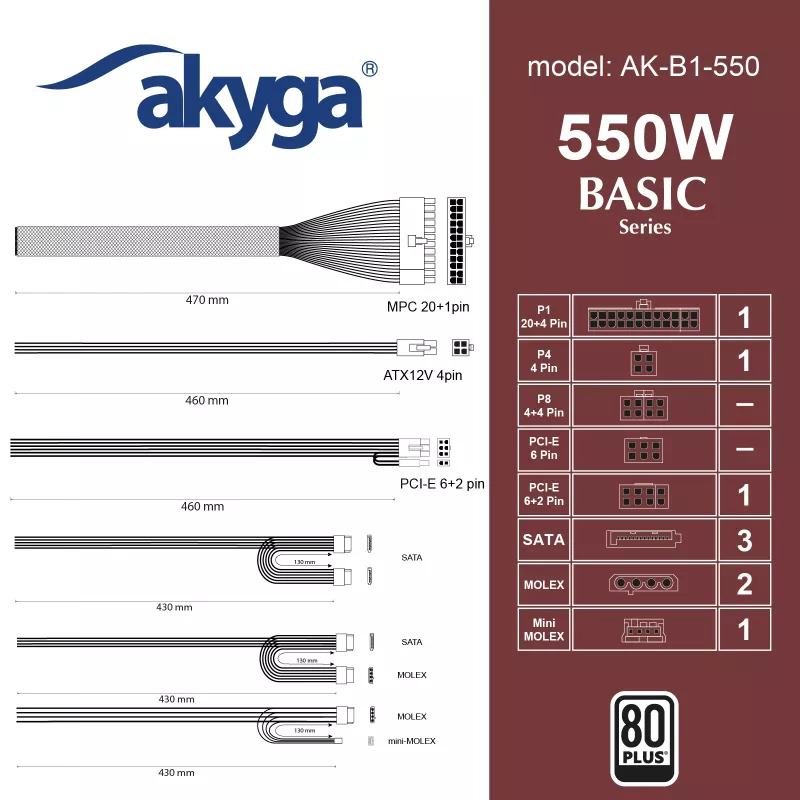

• Motherboard power connector: 20+4 pin ATX
• CPU P4 connector (4-pin): 1
• PCI Express power connectors (6+2 pin): 1
• Number of SATA power connectors: 3
• Peripheral (Molex) power connectors (4-pin): 2
• Mini-Molex connector: 1
• Cabling type: Non-Modular
• CPU power cable length: 450 mm
• SATA power cable length: 300 mm
• Peripheral (Molex) power cable length: 300 mm

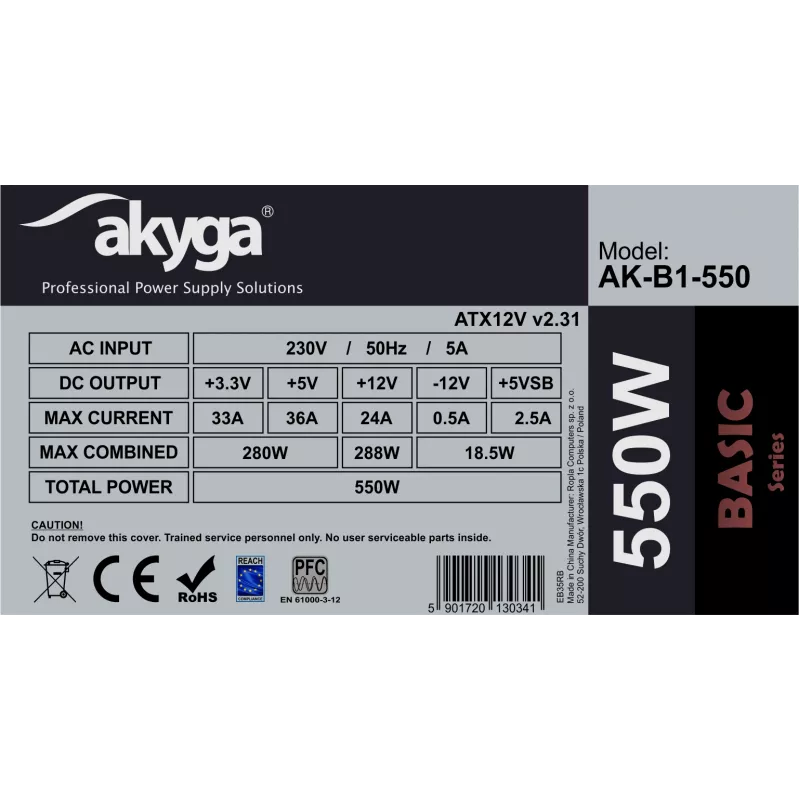

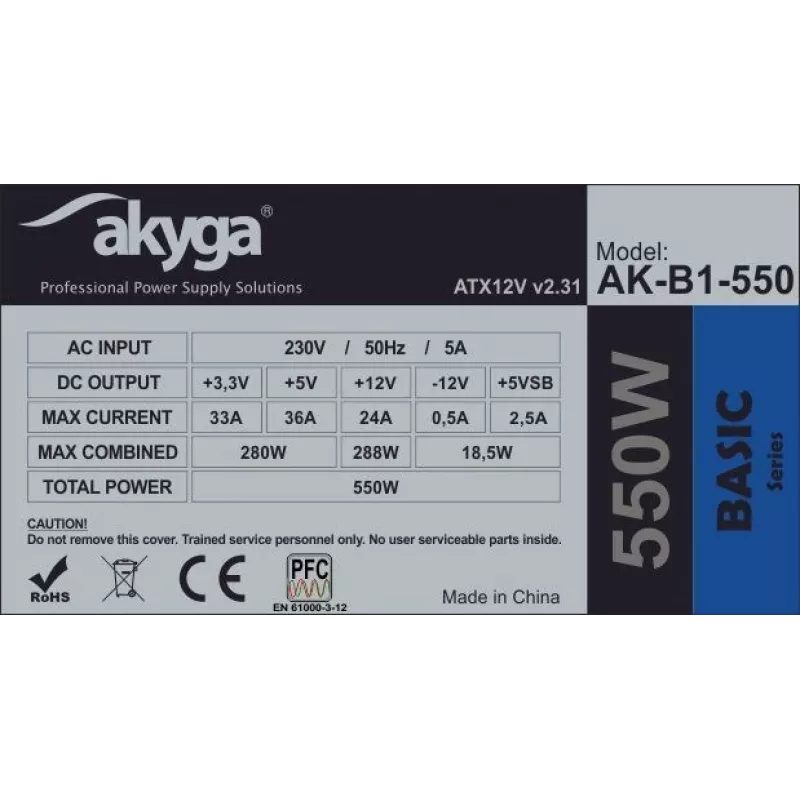

• Combined power (+3.3V): 280 W
• Combined power (+5V): 280 W
• Combined power (+12V): 288 W
• Combined power (-12V): 18.5 W
• Combined power (+5Vsb): 18.5 W
• Max output current (+3.3V): 33 A
• Max output current (+5V): 36 A
• Max output current (+12V): 24 A
• Max output current (-12V): 0.5 A
• Max output current (+5Vsb): 2.5 A
• Power protection features: Short circuit, Overheating, Over voltage, Over power, Over current
• Mean time between failures (MTBF): 100000 h
• Operating temperature (T-T): 5 - 50 °C
• Width: 150 mm
• Depth: 140 mm
• Height: 85 mm
• Weight: 1.04 kg
• Certification: CE, REACH
• Compliance certificates: RoHS
• Country of origin: China
