All-in-One-nestekylmälaite DeepCool LS520 WH

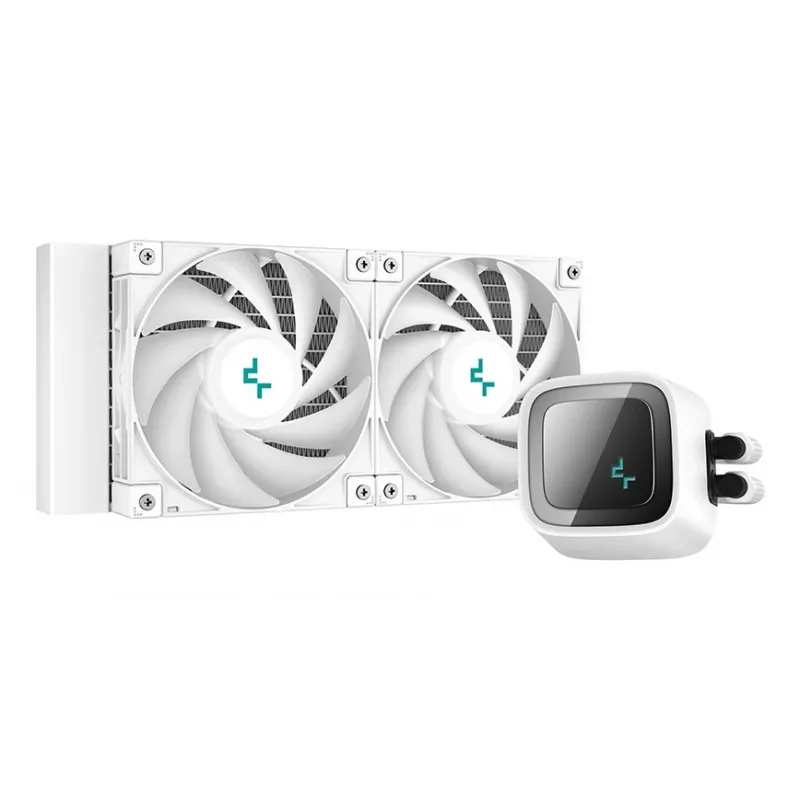

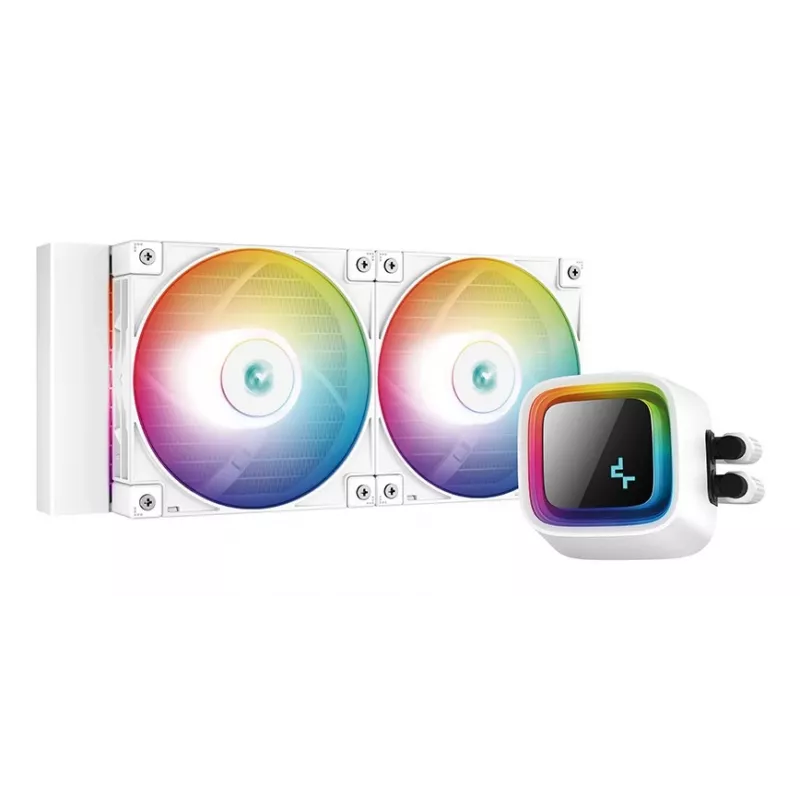

The DeepCool LS520 WH is a 240mm premium liquid CPU cooler designed for efficient thermal management and quiet operation. It includes a 240mm radiator, two FC120 A-RGB PWM fans, and an infinity mirror pump cap with a rotatable logo plate and an extra blank plate for customization. The cooler uses DeepCool's 4th Generation high-performance water pump featuring an improved microchannel design, a three-phase drive motor up to 3100 RPM, and a thick solid copper base for effective heat transfer. The package supports motherboard RGB synchronization and provides a default Auto-RGB rainbow effect when no controller is detected.

Advantages

The LS520 WH offers a balance of cooling performance and low noise thanks to the 240mm radiator and FC120 fans with enhanced static pressure and concentrated airflow. The 4th Generation pump design improves coolant flow and pump power for stable heat dissipation. Installation is simplified by new mounting brackets compatible with both Intel and AMD sockets. The infinity mirror pump face with a rotatable logo plate and an included blank plate enables visual customization and flexible orientation in the system.

Key specifications

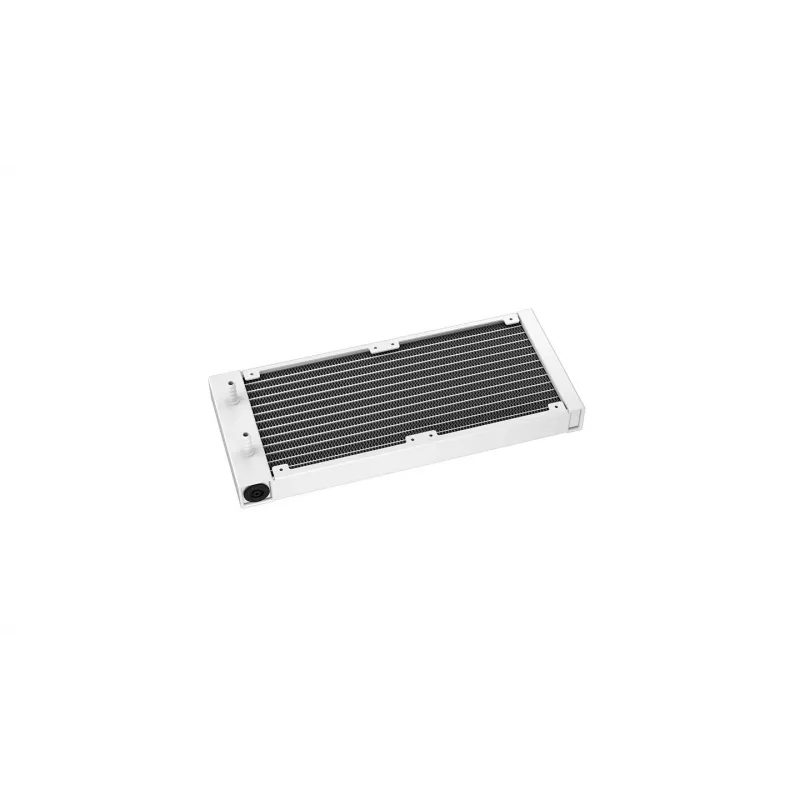

• Radiator size: 240 mm

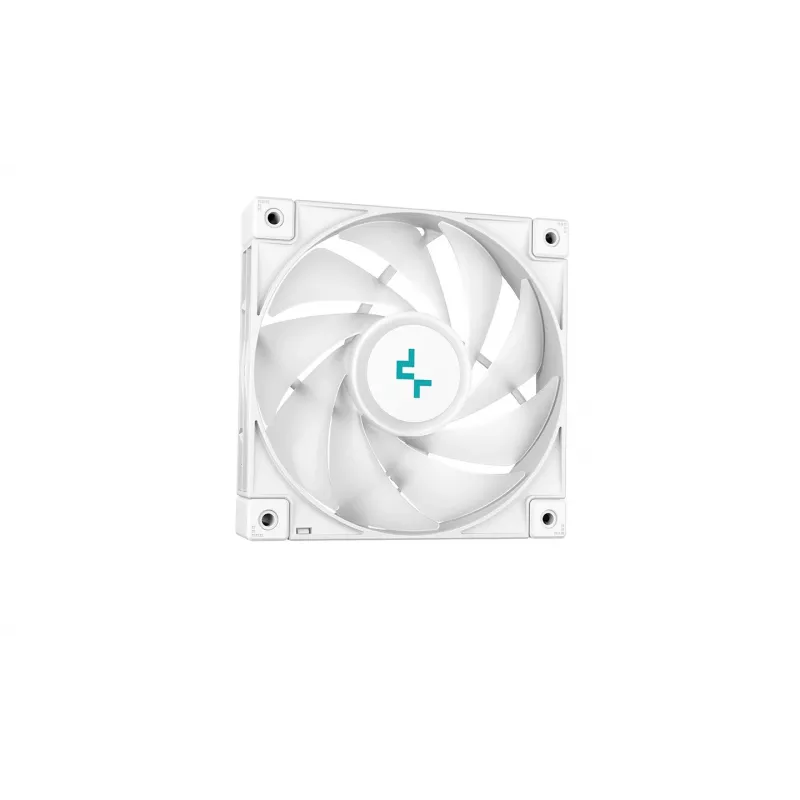

• Fans: 2 × FC120 A-RGB PWM
• Pump: 4th Generation high-performance water pump
• Pump speed: up to 3100 RPM (three-phase drive motor)

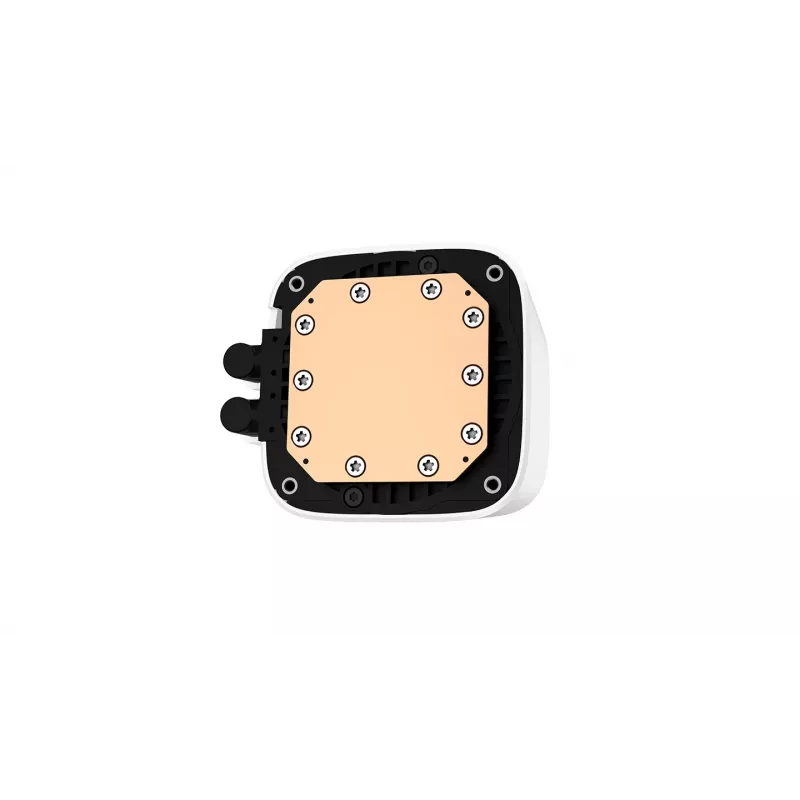

• Base: thick solid copper base

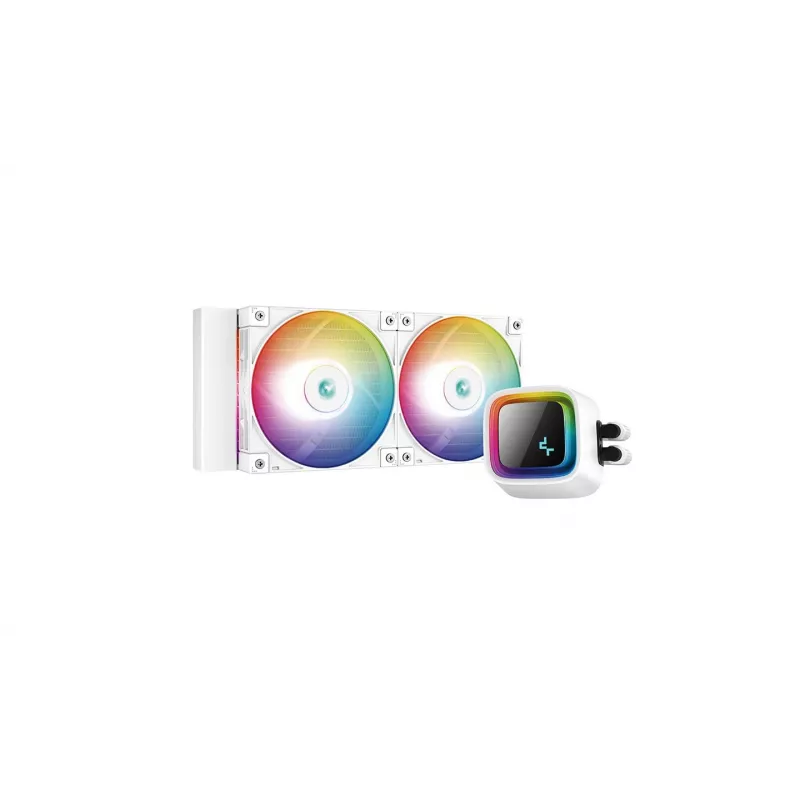

• Lighting: infinity mirror pump cap, A-RGB with motherboard synchronization (5V header)

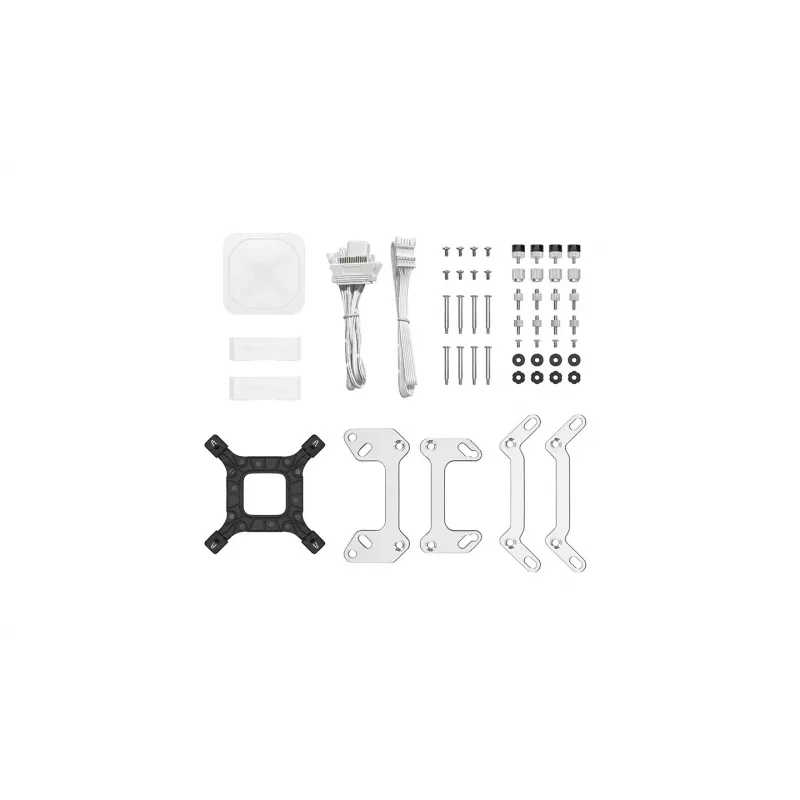

• Compatibility: Intel and AMD platforms (mounting brackets included)

How to use

Install the radiator and fans in a compatible case position for optimal airflow, then mount the pump block onto the CPU using the provided brackets and screws following the included manual. Connect the pump power and fan PWM cables to the motherboard headers and attach the A-RGB cable to a 5V A-RGB header or supported controller for lighting synchronization. If no 5V header or controller is available, the unit will run a default Auto-RGB rainbow effect.

Recommendations

For best results, place the radiator where it can intake cool air or exhaust warm air without restriction, ensure fans are configured for correct airflow direction, and confirm secure mounting on the CPU. Use motherboard RGB software or a compatible controller to customize lighting; if customization is not needed, the default Auto-RGB provides basic lighting effects.
