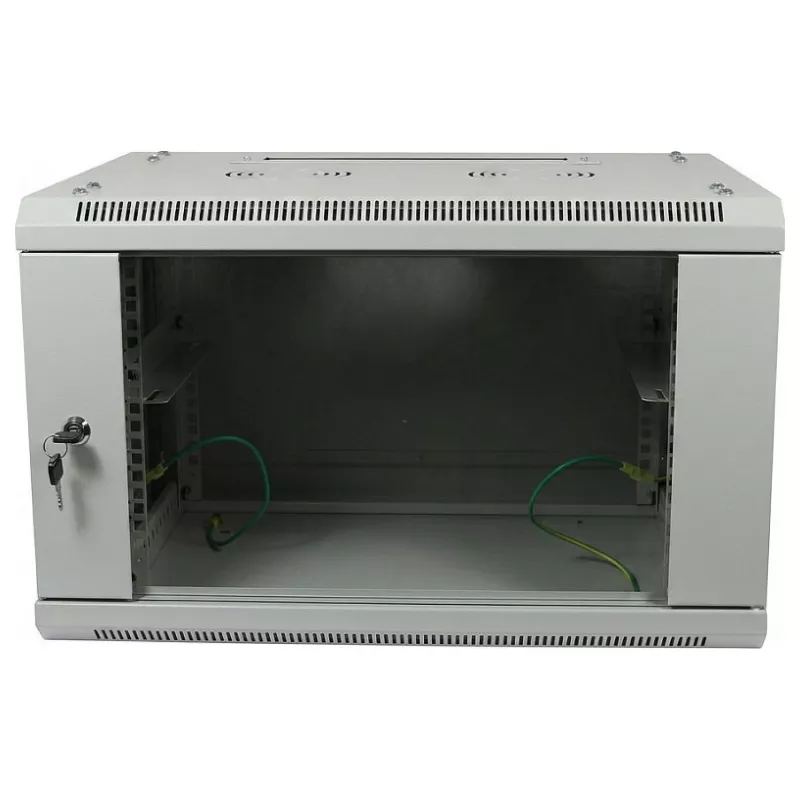

ALLNET 19" seinäkaappi 9U 1-osainen syvyys 450 mm vaaleanharmaa Flat Pack SMA-sarja

The ALLNET SMA-Series 19" wall mount enclosure offers a robust and secure solution for housing your network and IT equipment. Designed for easy installation, this 9U cabinet is supplied as a flat pack for convenient self-assembly. Its light grey (RAL 7035) steel construction ensures durability and a professional appearance in any server room, office, or industrial environment.

Advantages

Space-saving wall mount design ideal for small to medium installations. The single-section (1-part) frame provides a rigid structure, while the safety glass front door with lock protects sensitive equipment from unauthorized access. Removable side panels allow easy maintenance and cable management. Passive ventilation through perforated top and bottom panels ensures adequate airflow without the need for active cooling.

Suitable for

• Network switches, patch panels, and routers
• Small server installations
• Audio/Video equipment
• Industrial control systems

Key specifications

• Rack Units: 9U
• Form Factor: 19-inch
• Cabinet Type: Wall Mount Cabinet
• Construction: Single-section (1-part)
• External Depth: 450 mm
• Usable Depth: Approx. 400 mm
• External Width: 540 mm
• External Height: 460 mm
• Color: Light Grey (RAL 7035)
• Material: Steel
• Front Door: Safety Glass with Lock
• Side Panels: Removable
• Cable Entry: Top and Bottom
• Ventilation: Passive (Perforated Top/Bottom)
• Rack Profiles: 2x 19" Depth-Adjustable
• Load Capacity: Up to 60 kg
• Protection Class: IP20
• Assembly State: Disassembled (Flat Pack)
• Included Accessories: Mounting Material, 2 Keys
• Series: SMA-Series

Recommendations

For optimal cable management, consider using ALLNET cable management panels and accessories. Ensure the wall mounting surface can support the total weight of the enclosure and installed equipment.
