ALLNET 19 tuuman seinäkotelo 18U 1-osainen syvyys 600mm musta Flat Pack SMA-sarja

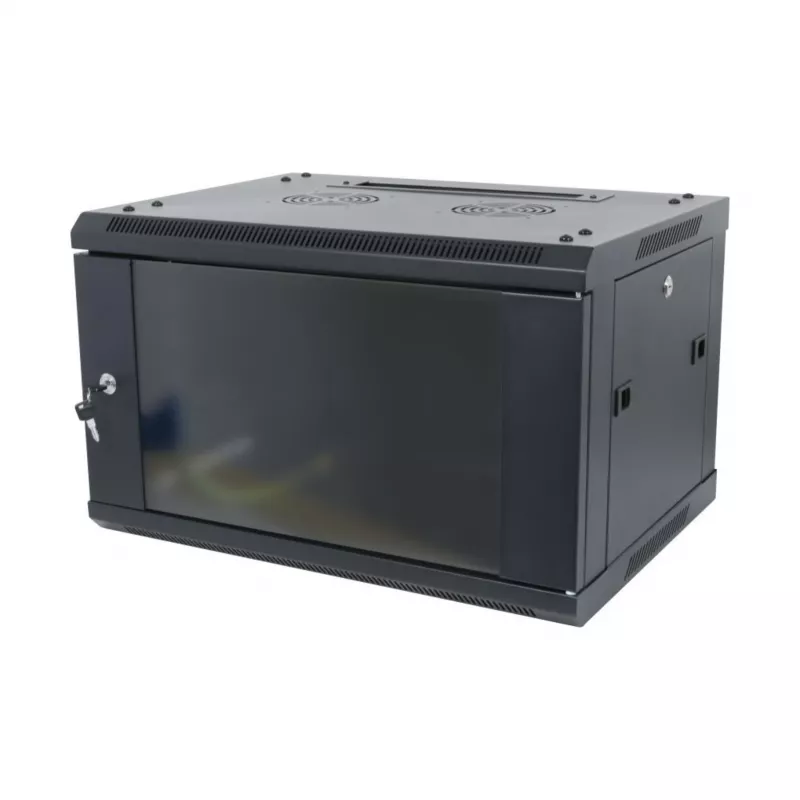

The ALLNET SMA-Series 19" wall mount enclosure offers a robust and space-saving solution for housing 19-inch rack equipment. With 18U of rack space and a depth of 600mm, this single-section cabinet is ideal for network closets, server rooms, or retail environments. Delivered as a flat pack for easy transport and assembly, it features a tempered glass front door, adjustable mounting rails, and cable entry points top and bottom.

Advantages

Space-efficient wall-mounted design saves valuable floor space. The flat pack delivery reduces shipping costs and allows for flexible on-site assembly. The tempered glass door provides visibility of equipment while maintaining security with a lockable front door. Adjustable 19" profile rails accommodate various equipment depths.

Suitable for

• Network switches, patch panels, and routers
• Small to medium server installations
• Audio/visual equipment mounting
• IT infrastructure in offices, schools, and retail spaces

Key specifications

• Rack Type: Wall Mount Enclosure
• Rack Height: 18U
• Rack Width: 19 inch
• External Dimensions (WxDxH): 600 x 600 x 890 mm
• Colour: Black (RAL 9005)
• Material: Steel, powder coated
• Front Door: Tempered glass, lockable
• Side Panels: Removable
• Cable Entry: Top and bottom with brush strips
• Ventilation: Passive ventilation slots
• Max Load Capacity: 60 kg
• Protection Rating: IP20
• Mounting Rails: Adjustable 19" profile rails
• Delivery: Flat pack (disassembled)

Recommendations

For optimal airflow and cable management, consider using blanking panels and cable management accessories. Ensure the wall mounting surface can support the total weight of the enclosure and installed equipment.
