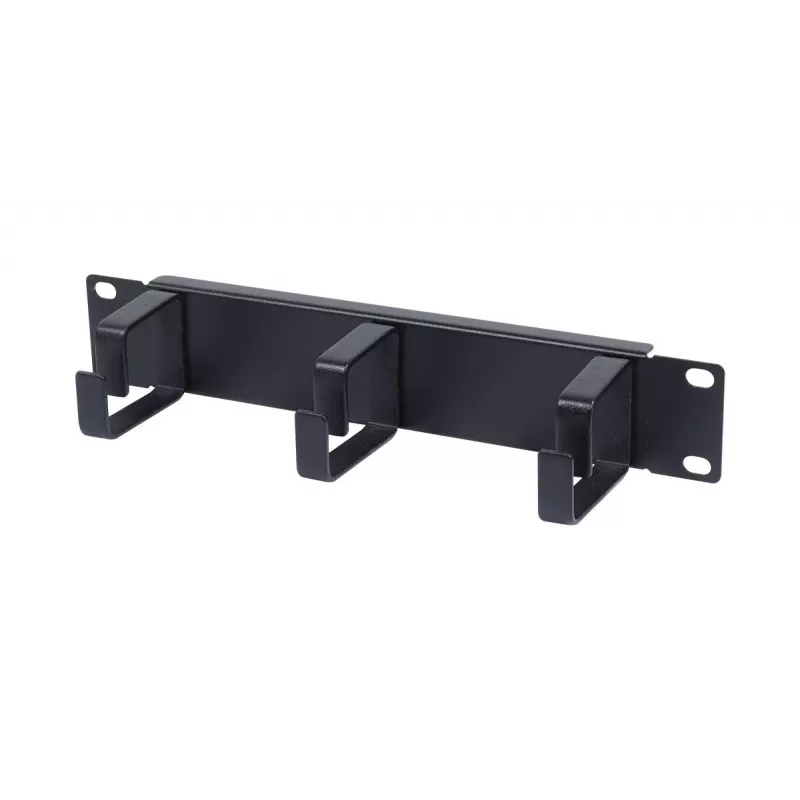

ALLNET ALL-S0002263 10 tuuman kaapelinhallintalevy, 1HE, metalli ja 3 kannatinta, musta

For rack installations where cable chaos is a daily frustration, this ALLNET panel offers a rigid steel solution that keeps every lead exactly where it belongs. Unlike flimsy plastic guides or open brush strips, the powder-coated metal body and three oversized loops provide real strain relief and a clean horizontal path across the full 19-inch width.

Highlights

• 1U height, 19-inch EIA-310-D rack mounting
• Solid steel construction with durable black powder coating
• Three open-ended loops for fast cable insertion and removal
• Front rack mounting for easy access during changes
• 65 mm depth leaves room behind the panel for cable slack

In daily use

Install the panel in seconds with standard rack screws (not included), then route power, network, or console cables through any of the three loops. The open design means you can add or remove a cable without unplugging the entire bundle. Because the loops are formed from the same steel sheet as the panel, they won't bend or snap under the weight of heavier copper or fibre trunks. The black finish blends into most rack environments and resists scratches during routine maintenance.

Full specifications

• Product type: Cable management panel
• Rack compatibility: 19-inch
• Rack units: 1U
• Material: Steel
• Colour: Black
• Number of cable loops: 3
• Mounting position: Horizontal
• Mounting type: Front rack mount
• Finish: Powder coated
• Application: Cable routing, cable organization, strain relief
• Standard compliance: EIA-310-D
• Loop design: Open-ended
• Installation: Screws (not included)
• Overall depth: 65 mm
• Overall width: 482.6 mm (19 inches)
• Overall height: 44.45 mm (1U)

Final note

A no-nonsense metal panel that turns a messy rack into a tidy, serviceable installation — built to last as long as the rack itself.
