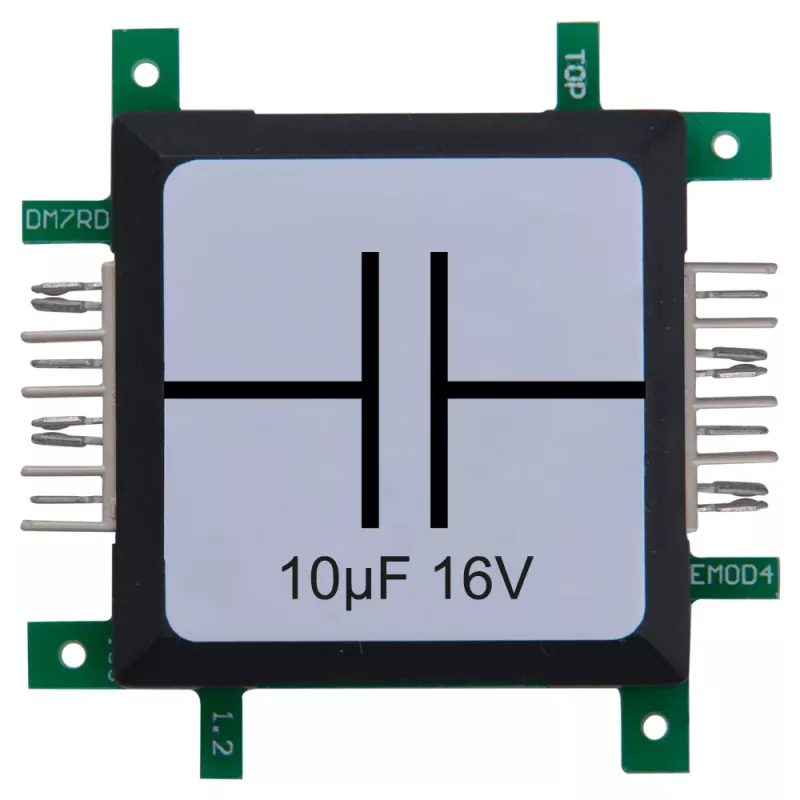

ALLNET Brick'R'knowledge kondensaattori 10µF 16V

The ALLNET Brick'R'knowledge Capacitor 10µF 16V is an aluminum electrolytic capacitor designed for educational and general-purpose applications. Part of the Brick'R'knowledge series, this through-hole radial component offers reliable performance with a capacitance of 10 µF and a voltage rating of 16 V DC. Ideal for breadboard prototyping and learning electronics, it features a compact 5 mm diameter and 11 mm height, with a lead spacing of 2.5 mm.

Advantages

This capacitor provides stable filtering and energy storage in low-voltage circuits. Its polarized design ensures correct orientation, and the PVC insulation sleeve adds safety. With a tolerance of ±20% and an operating temperature range of -40°C to +85°C, it suits a variety of environments. RoHS compliant, it meets environmental standards.

Suitable for

• Educational electronics projects and STEM learning
• Breadboard prototyping and experimentation
• General-purpose DC power supply filtering
• Signal coupling and decoupling in low-frequency circuits

Key specifications

• Capacitance: 10 µF
• Voltage Rating: 16 V DC
• Capacitor Type: Aluminum Electrolytic
• Mounting: Through-hole (Radial)
• Tolerance: ±20%
• Operating Temperature: -40°C to +85°C
• Lead Spacing: 2.5 mm
• Diameter: 5 mm
• Height: 11 mm
• Terminal Type: Wire Leads
• Expected Lifetime: 2000 hours at 85°C
• Dissipation Factor: 0.24 at 120Hz, 20°C
• Leakage Current: 3 µA max after 2 mins

Recommendations

For best results, ensure correct polarity when installing. Suitable for low-voltage DC circuits; not recommended for high-frequency or high-ripple applications. Store in a cool, dry place.
