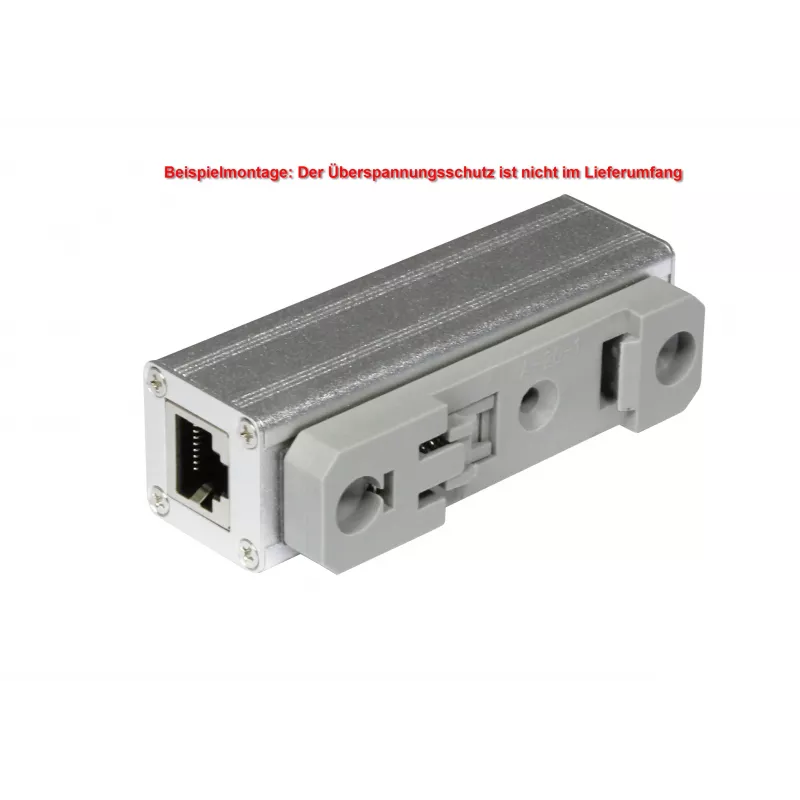

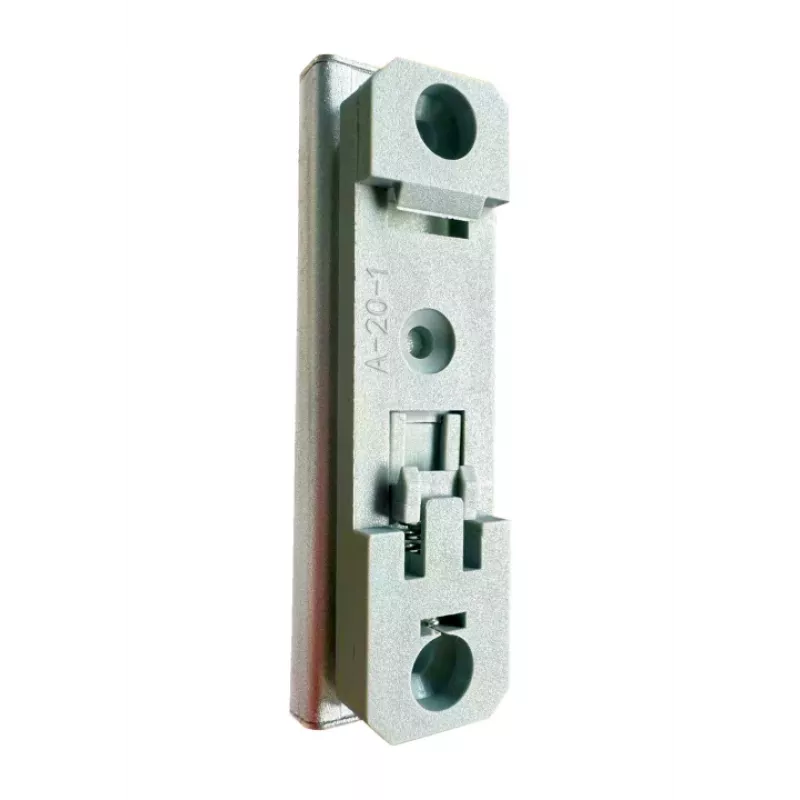

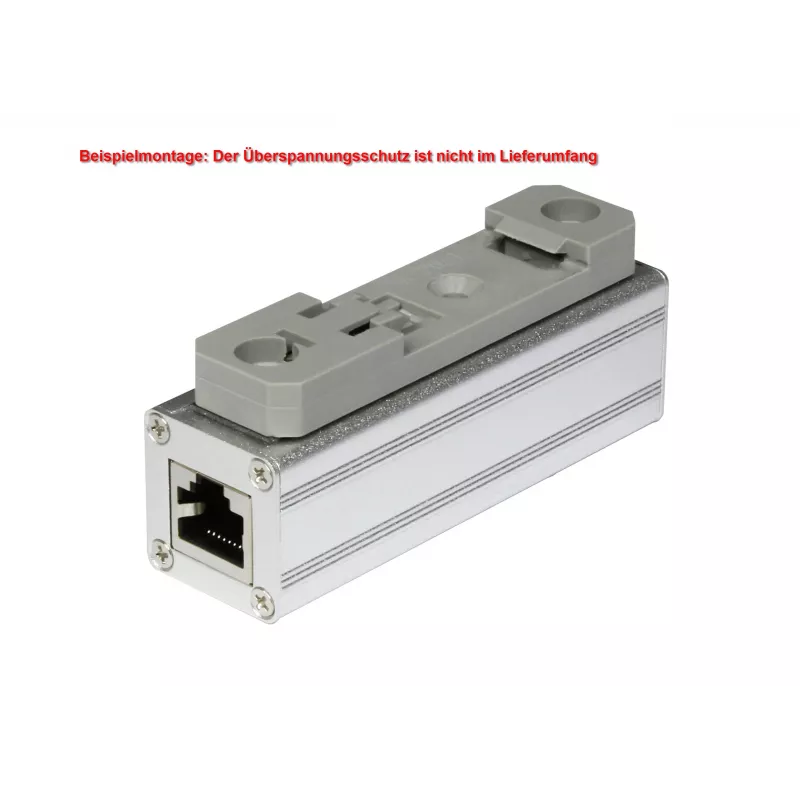

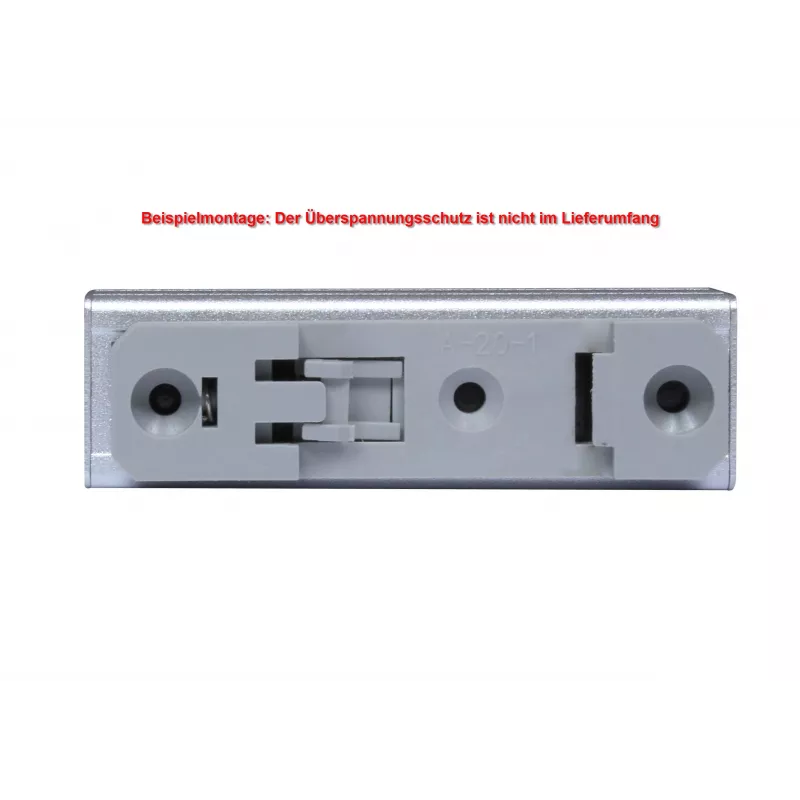

ALLNET Cat.6 Ethernet-ylijännitesuoja DIN-kiskokiinnikkeellä ALL95100:lle (ALL95100-DinRail-Clamp)

Network equipment connected by long Ethernet cables is vulnerable to voltage spikes caused by lightning strikes or switching operations. This surge protector clamps those transients before they reach your sensitive devices, preventing costly damage and downtime.

Who is it for

System integrators, electricians, and network administrators who install ALLNET ALL95100 devices on DIN rails in industrial or outdoor environments where lightning-induced surges are a real risk.

Main features

• Protects all 4 pairs of a Cat.6 twisted-pair cable
• Supports 10 Gigabit Ethernet (10GBASE-T) for high-speed links
• High discharge capacity: 10 kA nominal (8/20 µs), 20 kA maximum
• Fast response time under 1 ns
• Metal housing for durability
• Mounts directly on 35 mm DIN rail
• Operating temperature range -40 °C to +80 °C

Specifications

• Product type: Data line surge protector
• Cable compatibility: Category 6 (Cat.6)
• Connector type: RJ45 (input/output)
• Protected pairs: 4 pairs (8 wires)
• Nominal discharge current (In): 10 kA (8/20 µs)
• Maximum discharge current (Imax): 20 kA (8/20 µs)
• Voltage protection level (Up) L-L: < 600 V
• Voltage protection level (Up) L-PE: < 600 V
• Response time: < 1 ns
• Grounding: Via DIN rail or separate ground terminal
• Housing material: Metal
• Operating temperature: -40 °C to +80 °C
• Mounting: DIN rail (35 mm)

Tips

Install the protector as close as possible to the device you want to protect. Ensure a proper low-impedance ground connection to achieve the specified protection levels.
