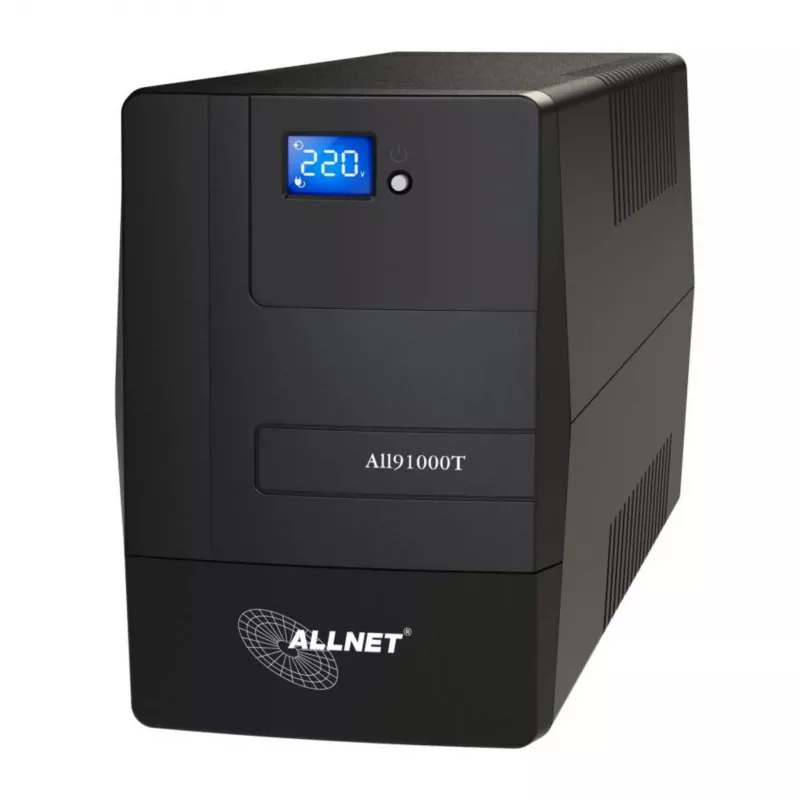

ALLNET UPS 1000VA line-interactive USB LCD-näyttö - (offline) UPS - 26 min (ALL91000T)

The ALLNET ALL91000T is a reliable line-interactive UPS designed to protect your critical equipment from power outages, surges, and fluctuations. With 1000VA / 600W capacity, it provides backup power for workstations, network devices, and home electronics. The intuitive LCD display shows real-time status, and the USB communication port enables automatic shutdown via included software.

Advantages

Line-interactive topology ensures stable voltage regulation without battery drain during minor fluctuations. The simulated sine wave output is compatible with most PFC power supplies. Cold start function allows operation without mains power. Compact tower design saves space.

Suitable for

• Home offices and small businesses
• Network equipment (routers, switches, NAS)
• Desktop computers and monitors
• Security systems and point-of-sale terminals

Key specifications

• UPS Topology: Line-Interactive
• Apparent Power: 1000 VA
• Active Power: 600 W
• Input Voltage Range: 162 - 290 V AC
• Output Voltage (Battery Mode): 230 V AC ±10%
• Output Frequency (Battery Mode): 50/60 Hz ±1 Hz (Auto-sensing)
• Output Waveform: Simulated Sine Wave
• Transfer Time: 2-6 ms (Typical), 10 ms (Max)
• Battery Type: Sealed Lead Acid (Maintenance-Free)
• Battery Configuration: 2x 12V / 7Ah
• Typical Backup Time (Half Load): 26 minutes
• Typical Backup Time (Full Load): 3 minutes
• Output Sockets: 2x Schuko (CEE 7/3), 2x IEC C13
• Communication Ports: 1x USB Type-B
• Display Type: LCD Display
• Protection Features: Overload, Short Circuit, Overcharge, Deep Discharge
• Typical Recharge Time: 4-6 hours to 90% capacity
• Noise Level: < 40 dB
• Cold Start Function: Yes

Recommendations

For optimal performance, connect only critical devices and avoid overloading. The UPS is not designed for motor loads or medical equipment. Regularly test the battery and replace every 3-5 years.
