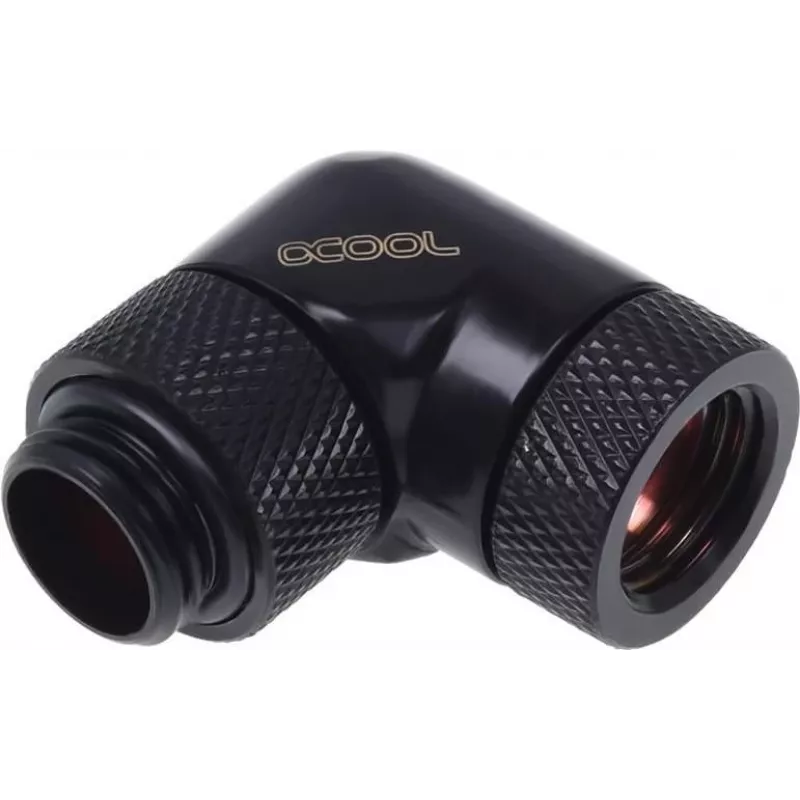

Alphacool HF 90° kääntöadapteri G1/4 ulkokierre - G1/4 sisäkierre - syvänmusta 17057

When space is tight and tubing runs need a sharp turn, the Alphacool HF 90° Rotary Adapter delivers a clean, low-profile solution without sacrificing flow. Unlike fixed elbows, this fitting swivels a full 360° on its G1/4 male thread, so you can orient the female port exactly where you need it after installation. The deep black matte finish blends into dark builds, while the brass body and high-flow design keep your loop efficient.

Highlights

• 90° angled adapter with G1/4 outer thread (male) to G1/4 inner thread (female)
• 360° rotatable swivel joint for flexible orientation
• High-flow (HF) design minimizes restriction
• Solid brass construction with deep black coating
• NBR O-rings for reliable sealing
• Compact dimensions: 31 mm total length, 23 mm outer diameter

In daily use

This adapter is ideal for tight corners in water cooling loops, such as between a radiator and a pump or on a graphics card block. The rotary joint allows you to align the female port precisely, reducing stress on tubing and preventing kinks. The matte black finish resists fingerprints and matches most black fittings and components.

Full specifications

• Fitting type: Angled rotary adapter
• Angle: 90 degrees
• Thread (male): G1/4" AG (outer thread)
• Thread (female): G1/4" IG (inner thread)
• Rotatability: 360° swivel
• Material: Brass
• Color: Deep black
• Surface finish: Matte black coating
• Seal material: NBR O-rings
• Total length: 31 mm
• Outer diameter: 23 mm
• Thread length (male): 5 mm
• Product series: HF (High Flow)
• Application: Connecting water cooling components at a 90-degree angle with rotational flexibility

Final note

Alphacool's HF series is trusted by enthusiasts for its balance of performance and durability. This rotary adapter is a small part that makes a big difference in clean, efficient loop design.
