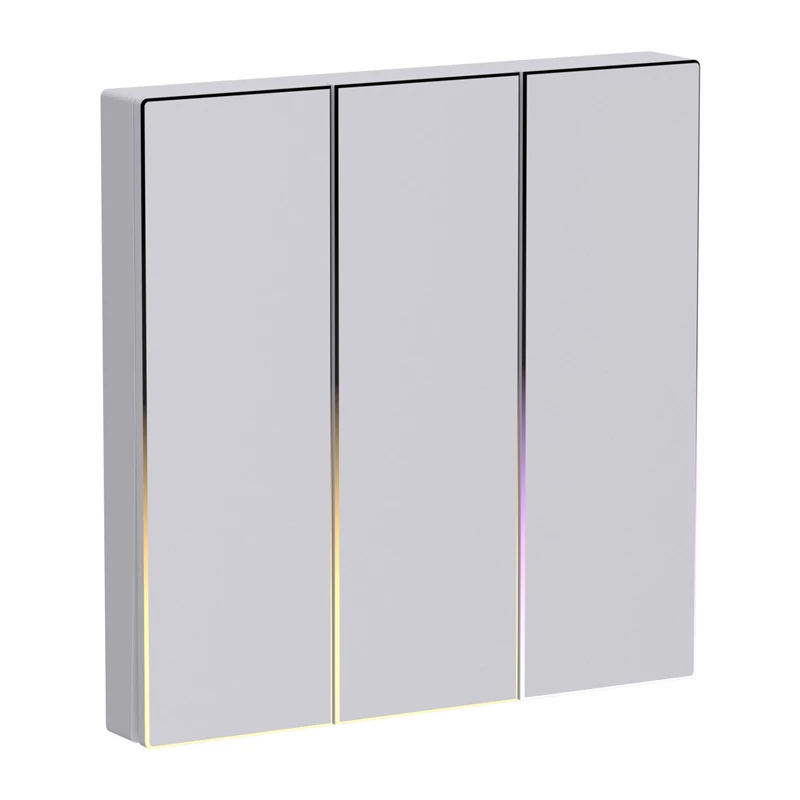

Älykäs valokytkin Avatto TS60-EU-W3 – Wi‑Fi-kosketusohjaus, seinäasennus

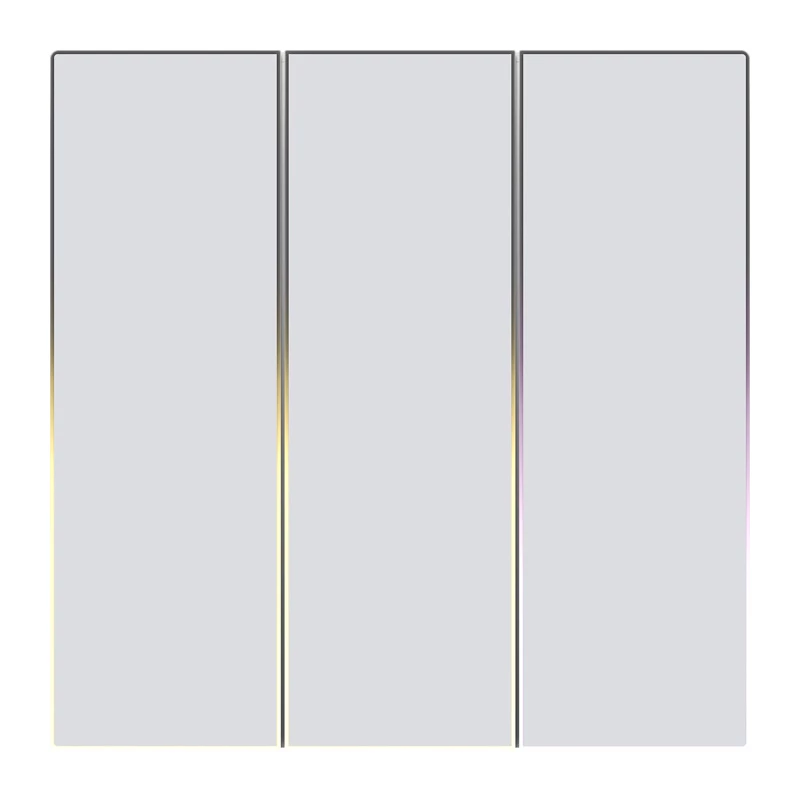

The Avatto TS60-EU-W3 is a smart three-channel light switch that lets you control lights either manually or via a mobile app. It connects over 2.4 GHz Wi-Fi so you can operate lighting from home, the office or remotely. The switch supports three independent circuits and is suitable for rooms with multiple lighting points. The compact white touch panel measures 80 × 80 mm and has a flame-retardant PC plastic housing.

Advantages

The device offers both local touch control and remote operation through the Smart Life or Tuya Smart app. It supports voice assistants and allows creation of schedules and automation scenarios. Soft edge illumination helps locate the switch in the dark, and rated protection materials increase safety. Each channel is rated for up to 800 W (resistive load) with a maximum current of 10 A.

Key specifications

• Manufacturer: Avatto
• Model: TS60-EU-W3
• Version: 3-gang
• Operating voltage: AC 100–240 V (50/60 Hz)
• Maximum load: 800 W per circuit (resistive)
• Maximum current: 10 A
• Wireless frequency: Wi‑Fi 2.4 GHz
• Wi‑Fi standard: IEEE 802.11 b/g/n
• Power consumption in standby mode: 0.1 mA
• Housing material: PC plastic (flame resistant)
• Dimensions: 80 × 80 mm

How to use

Install the switch by connecting wires according to the included wiring diagram and mount it with the supplied screws. To add the device to the app, press and hold the button for 5 seconds until the backlight flashes; the Smart Life or Tuya Smart app will detect the switch and guide you through configuration. After pairing, control each channel via the app, set schedules or link the device to voice assistants for hands-free operation.

Recommendations

For reliable operation, use a stable 2.4 GHz Wi‑Fi network and ensure wiring is performed according to local electrical codes. Do not exceed the specified 800 W per channel and 10 A maximum current. If unsure about installation, consult a qualified electrician.
