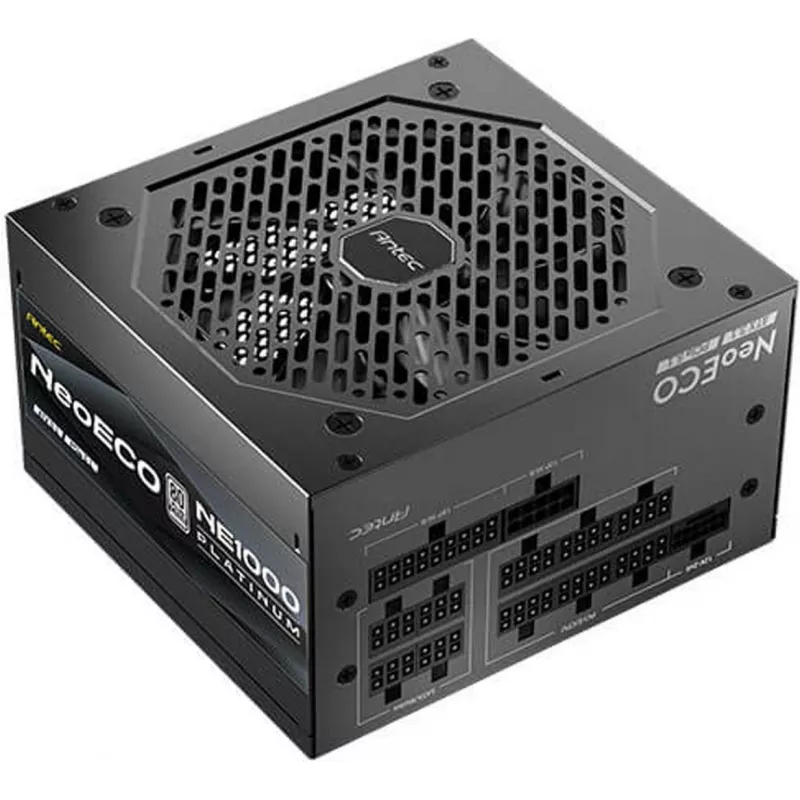

Antec NE1000P EC 80+ Platinum Full Modular ATX 3.1 virtalähde 1000W

The Antec NE1000P EC is a high-performance 1000W power supply designed for demanding PC builds and server applications. With 80 PLUS Platinum certification and full modular cabling, it delivers exceptional efficiency and flexibility. Compliant with ATX 3.1 and PCIe 5.1 standards, it supports the latest graphics cards and ensures stable power delivery.

Advantages

Experience up to 92% efficiency (at 50% load, 115V) for reduced energy costs and heat output. The 120 mm fluid dynamic bearing fan provides quiet and reliable cooling. 100% Japanese capacitors and comprehensive protection features (OVP, UVP, OPP, SCP, OCP, OTP, SIP, NLO) guarantee long-term stability and safety.

Suitable for

• High-end gaming PCs and workstations
• Servers and data centers requiring reliable power
• Enthusiasts building with ATX 3.1 and PCIe 5.1 components

Key specifications

• Total Power: 1000 W
• 80 PLUS Certification: Platinum
• ATX Standard: ATX 3.1
• PCIe Standard: PCIe 5.1
• Modularity: Full Modular
• Form Factor: ATX
• PFC Type: Active PFC
• Fan Size: 120 mm
• Fan Bearing: Fluid Dynamic Bearing (FDB)
• Capacitor Type: 100% Japanese Capacitors
• Protections: OVP, UVP, OPP, SCP, OCP, OTP, SIP, NLO
• MTBF: 100,000 hours
• Efficiency: Up to 92% (at 50% load, 115V)
• Connectors: 1x ATX 24-pin, 2x EPS/CPU 4+4 pin, 1x 12VHPWR (12+4 pin), 4x PCIe 6+2 pin, 12x SATA, 4x Molex
• Warranty: 10 Years

Recommendations

For optimal performance, pair this power supply with a compatible ATX 3.1 motherboard and PCIe 5.1 graphics card. Ensure your case supports ATX form factor and has adequate airflow for the 120 mm fan.
