Antenni DeLOCK 89622

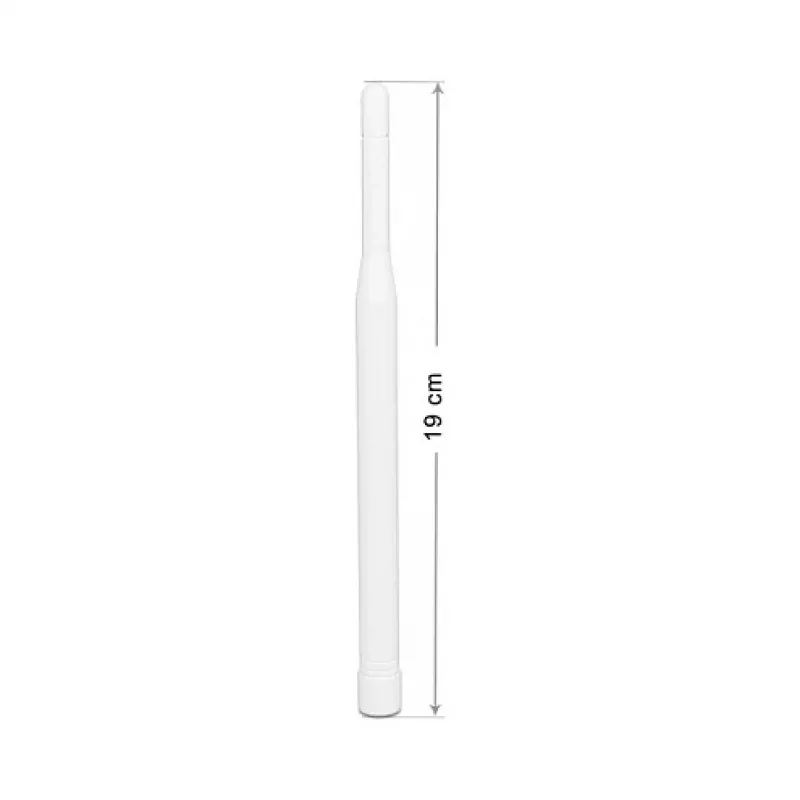

The DeLOCK 89622 antenna is a compact external antenna designed for multi-band wireless communication. It covers frequency ranges from 0.88–0.96 GHz, 1.71–1.88 GHz, 1.85–1.90 GHz and 2.11–2.17 GHz, and supports GSM, UMTS, LTE, ZigBee 928 MHz, DECT, NB-IoT, Z-Wave and LoRa 915 MHz. The antenna has a linear polarization, 50 Ω impedance and an SMA male connector; its height is 190 mm and it is supplied in a polybag.

Advantages

The antenna provides a maximum gain of 2.9 dBi across the supported bands, ensuring improved reception compared with standard untuned antennas. Its multi-band coverage allows a single antenna to be used for several wireless technologies and IoT standards. The SMA male connector and 50 Ω impedance make it compatible with common consumer and industrial radio equipment, while its compact 190 mm form factor and white colour simplify installation and integration.

Suitable for

Key specifications

How to use

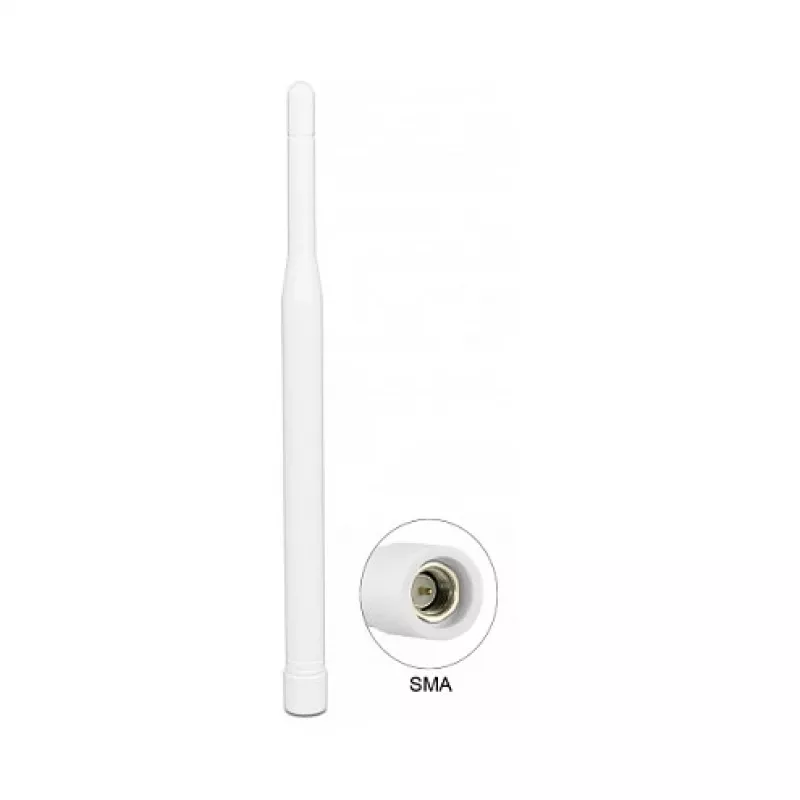

Connect the SMA male connector of the DeLOCK 89622 to a compatible SMA female socket on your router, modem, gateway or radio module. Position the antenna vertically to match its linear polarization for best signal performance. Ensure the antenna is mounted in a location with minimal obstruction and avoid placing it inside fully metal enclosures that could attenuate signals.

Recommendations

For optimal results, test antenna placement and orientation in the actual installation environment and choose the band and device matching your network standard (GSM/UMTS/LTE, NB-IoT, LoRa, etc.). Regularly inspect the connector for corrosion if used in outdoor or humid conditions.
