Antennikannatin Extralink B600 600 mm

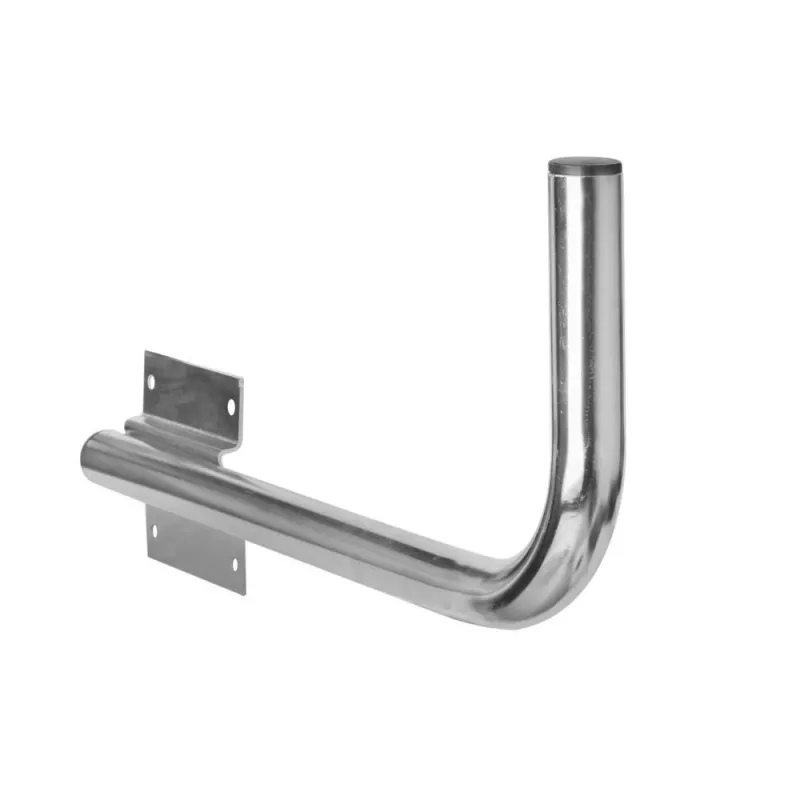

Extralink B600 antenna holder is a robust, galvanized steel wall bracket designed to secure satellite or terrestrial antennas to building facades and other flat surfaces. The bracket combines a 600 mm arm and a 250 mm high brick holder with a 38 x 1.5 mm tube diameter to provide stable, corrosion-resistant support for outdoor antenna installations.

Advantages

The galvanized steel construction ensures long-term resistance to corrosion and weathering while maintaining structural strength. A 600 mm arm provides extended reach from the wall for optimal antenna placement, and the 250 mm brick holder with a 38 x 1.5 mm tube diameter offers compatibility with common antenna mounts. The silver finish is neutral and suitable for residential or commercial facades.

Suitable for

• Mounting satellite antennas on exterior walls or facades
• Installing terrestrial (TV) antennas on houses and commercial buildings
• Situations requiring extended arm length for clear signal line-of-sight

Key specifications

• Brand: Extralink
• Model / MPN: EX.6716
• EAN: 5902560366716
• Material: Galvanized steel
• Arm length: 600 mm
• Brick holder height: 250 mm
• Tube diameter: 38 x 1.5 mm
• Finish: Silver

How to use

Position the Extralink B600 bracket on a suitable flat surface of the facade or wall, mark the fixing holes and secure the brick holder using appropriate anchors or bolts for the wall material. Attach the 600 mm arm and fasten the antenna mast into the 38 x 1.5 mm tube, ensuring all bolts and clamps are tightened. Adjust the antenna direction as required and re-check all fixings after initial tuning and following severe weather.

Recommendations

Use corrosion-resistant anchors and fasteners suitable for the wall material, and verify the load capacity of the mounting surface before installation. Periodically inspect the bracket and fastenings, especially after strong winds or storms, to maintain safe and stable antenna operation.
