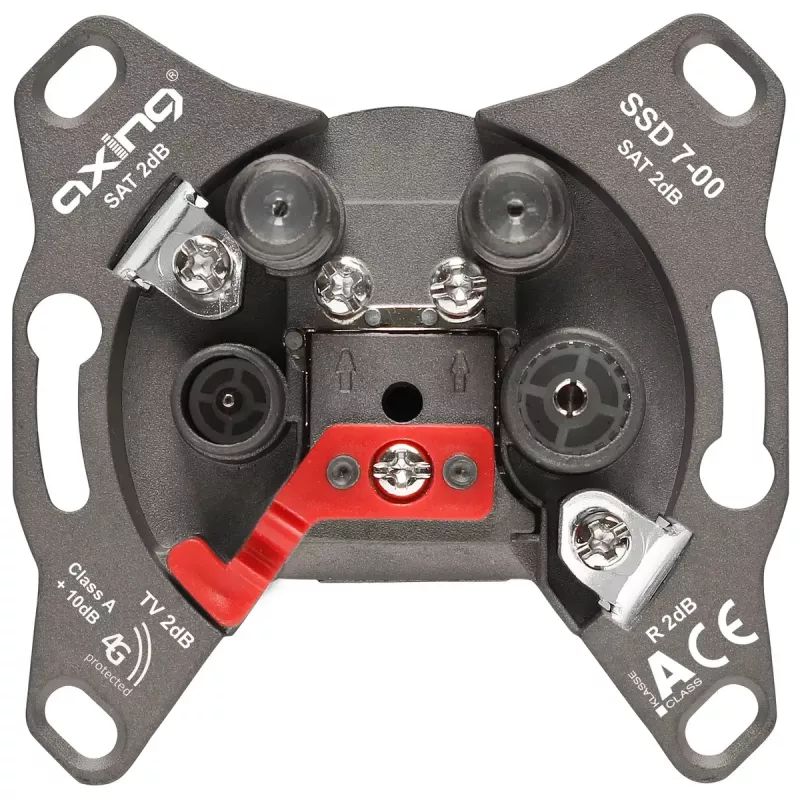

Antennirasiapistorasia 2x SAT + TV + Radio Axing SSD 7-00

The Axing SSD 7-00 socket outlet provides two SAT connections plus dedicated TV and radio outputs in a compact, wall-mounted unit. Designed for installation in residential and commercial reception areas, the outlet supports distribution of satellite, terrestrial television and FM radio signals from a centralized cabling system. Its brown finish and small footprint (68 mm × 39 mm × 68 mm) make it suitable for discreet installation in living rooms, bedrooms, or media cabinets where multiple signal connections are required.

Advantages

The unit combines two satellite sockets with separate TV and radio ports in a single housing, reducing the need for multiple faceplates. Its compact dimensions allow installation in shallow back boxes and tight spaces. The Axing SSD 7-00 is constructed for consistent signal transfer and stable mechanical connection between coaxial plugs and the outlet. The neutral brown color integrates easily with wood or earth-toned interiors.

Suitable for

• Home TV and radio installations requiring satellite and terrestrial signal access
• Multimedia cabinets and living room wall outlets
• Small commercial reception areas and hotel rooms
• Upgrading or consolidating coaxial connections in renovation projects

Key specifications

• Connector types: 2× SAT connectors, 1× TV (terrestrial) connector, 1× FM radio connector
• Form factor: compact wall socket designed for mounting in flush back boxes
• Dimensions: approximately 68 mm (width) × 39 mm (depth) × 68 mm (height)
• Color: brown finish to match warm interior tones
• Signal types supported: satellite (DVB-S/DVB-S2), terrestrial TV (DVB-T/DVB-T2), FM radio

How to use

Install the socket outlet into a suitable flush-mounted back box following local electrical and building regulations. Connect incoming coaxial feeds and distribution cables to the corresponding SAT, TV and radio terminals, ensuring proper impedance matching and secure screw or push connections according to the installer guide. After mounting and securing the faceplate, connect receivers, set-top boxes or radios using standard F-type coaxial cables for satellite and IEC or F-type plugs for TV and radio as applicable, then perform signal level checks to confirm satisfactory reception.

Recommendations

For best performance, use high-quality coaxial cables and properly shielded connectors. Keep cable runs as short as practical and avoid sharp bends. If signal levels are low or multiple rooms require distribution, consider using a line amplifier or professional signal splitter and verify compatibility with satellite and terrestrial equipment.
