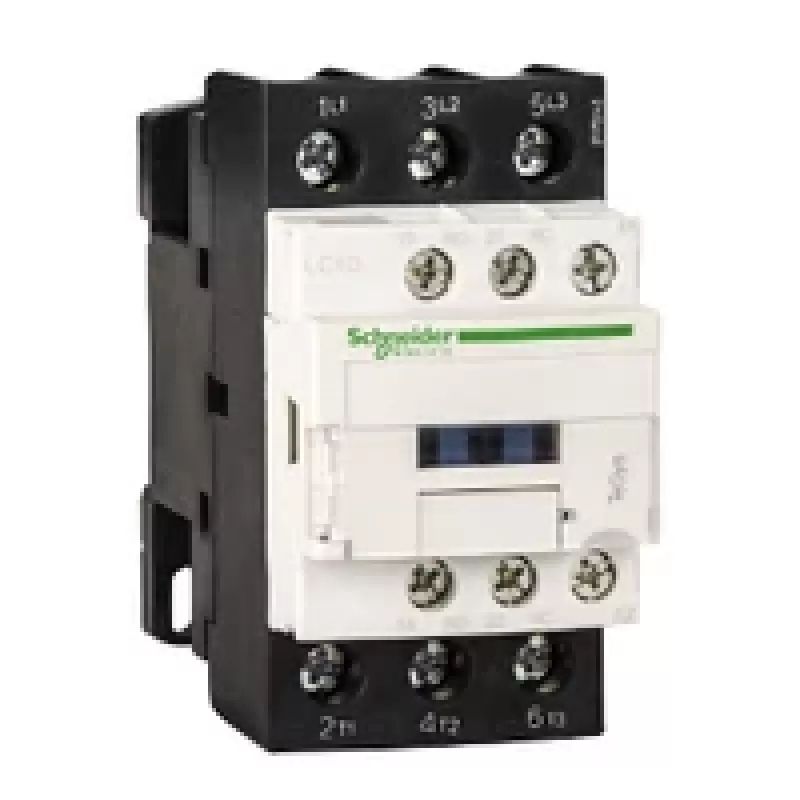

APC LC1D38P7 TeSys D kontakti 3P 38A 230V AC 1NO+1NC

The APC LC1D38P7 is a high-performance contactor from the TeSys D series, designed for reliable motor control and switching applications. With a rated operational current of 38 A in AC-3 category and 60 A in AC-1, it is suitable for a wide range of industrial and commercial installations. The contactor features a 230 V AC 50/60 Hz control circuit and is equipped with one normally open and one normally closed auxiliary contact for flexible integration.

Advantages

Robust design with high electrical durability of 1.6 million cycles in AC-3 ensures long service life. Compact footprint allows easy mounting on rail or plate. Screw clamp terminals provide secure and reliable connections. Complies with international standards IEC 60947-4-1, UL 508, and CSA C22.2 No 14.

Suitable for

• Motor starting and switching in industrial machinery
• Lighting and heating control panels
• HVAC systems
• Pump and compressor control
• Automation and process control

Key specifications

• Product Series: TeSys D
• Number of Poles: 3P
• Rated Operational Current (AC-3): 38 A at ≤ 440 V
• Rated Operational Current (AC-1): 60 A at ≤ 690 V
• Control Circuit Voltage: 230 V AC 50/60 Hz
• Motor Power (AC-3, 400V): 18.5 kW
• Built-in Auxiliary Contacts: 1 NO + 1 NC
• Mounting Type: Rail / Plate
• Terminal Type: Screw Clamp Terminals
• Standards: IEC 60947-4-1, UL 508, CSA C22.2 No 14
• IP Protection Rating: IP20 (front face)
• Operating Temperature: -5 to 60 °C
• Electrical Durability (AC-3): 1.6 Mcycles
• Rated Insulation Voltage (Ui): 690 V (power circuit)
• Rated Impulse Withstand Voltage (Uimp): 6 kV
• Overvoltage Category: III

Recommendations

For optimal performance, ensure proper sizing according to motor full-load current and application duty cycle. Use appropriate overload relay for motor protection. Install in a clean, dry environment within specified temperature range.
