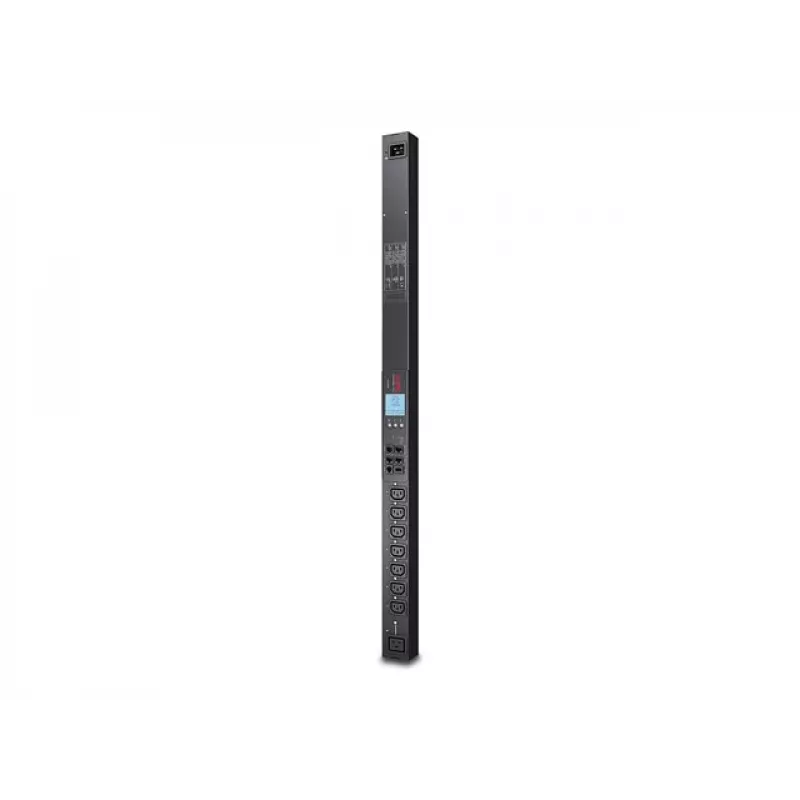

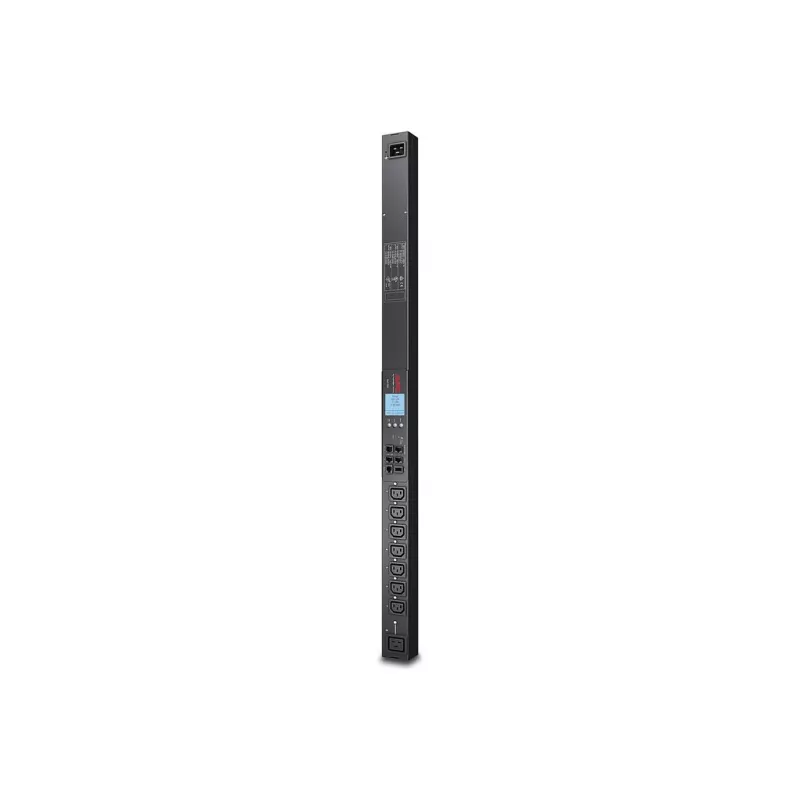

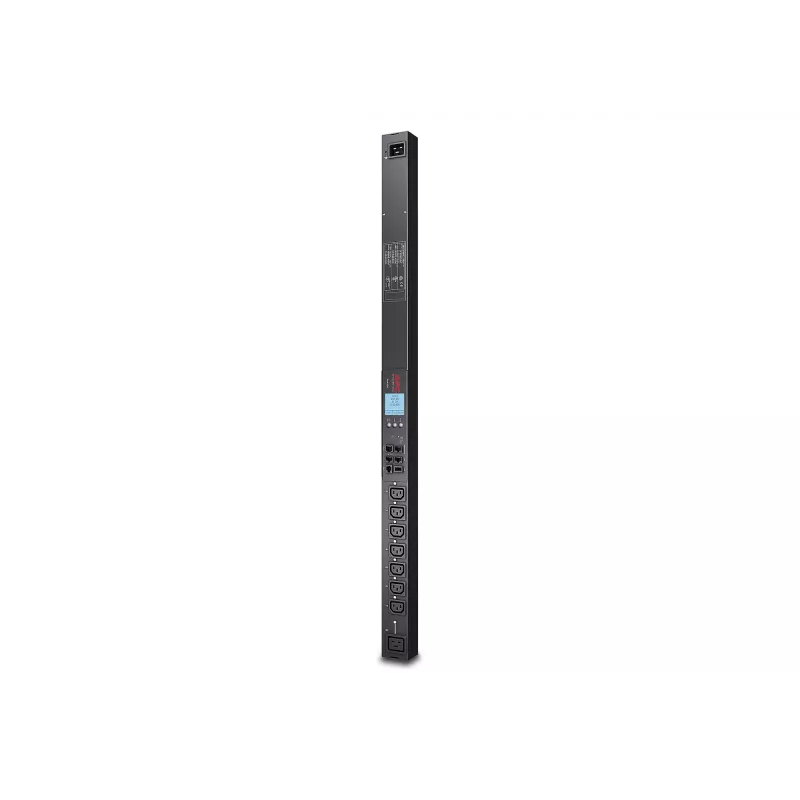

APC Rack PDU 2G, Switched, ZeroU, 20A/208V, 16A/230V, (7) C13 & (1) C19

The APC Rack PDU AP8958 Switched ZeroU 20A/208V 16A/230V is a vertical-mount switched power distribution unit designed for data center racks. It provides eight AC outlets (seven C13 and one C19) and supports real-time monitoring of current, power and voltage. The unit includes features for outlet-level control, locking IEC receptacles, a temperature/humidity sensor port, and low-profile circuit breakers to help manage rack power and protect connected equipment.

Advantages

The AP8958 offers remote outlet on/off control for power recycling and to restrict unauthorized outlet use, along with user-definable power sequencing delays to control the order of equipment power-up and power-down. Current metering and real power monitoring enable remote load visibility, and user-defined alarms warn of potential circuit overloads before critical failures. The PDU integrates with secure Web, SNMP, or Telnet interfaces and is compatible with APC centralized management platforms such as InfraStruxure Central, Capacity Manager, and Change Manager.

Suitable for

• Vertical mounting in server and network equipment racks (ZeroU installations)
• Data centers and server rooms requiring outlet-level control and monitoring
• Environments needing power sequencing and load-shedding to protect critical systems

Key specifications

• Model: AP8958
• Type: Switched, Metered Rack PDU
• Input nominal voltage: 230 V
• Maximum current: 16 A (unit rated for 20A/208V, 16A/230V configurations)
• AC outlets: 8 (7 × C13, 1 × C19)
• Maximum load capacity: 3680 VA
• Weight: 3.23 kg
• Features: outlet-level control, locking IEC receptacles, temp/humidity sensor port, low-profile circuit breakers, current and power metering

How to use

Install the AP8958 vertically in a compatible rack (ZeroU mounting) according to the rack and PDU installation instructions. Connect the PDU to the facility power source appropriate for the unit rating, then attach equipment to the C13 and C19 outlets. Access the PDU through the secure Web interface, SNMP, or Telnet to configure outlet control, set power sequencing delays, enable alarms, and monitor current, voltage and power remotely.

Recommendations

Use outlet lock-out and user-defined alarms to prevent unintended shutdowns; configure power sequencing and load-shedding priorities before deployment to avoid circuit overload during power recovery. Integrate the PDU with APC centralized management tools for consolidated monitoring and configuration.
