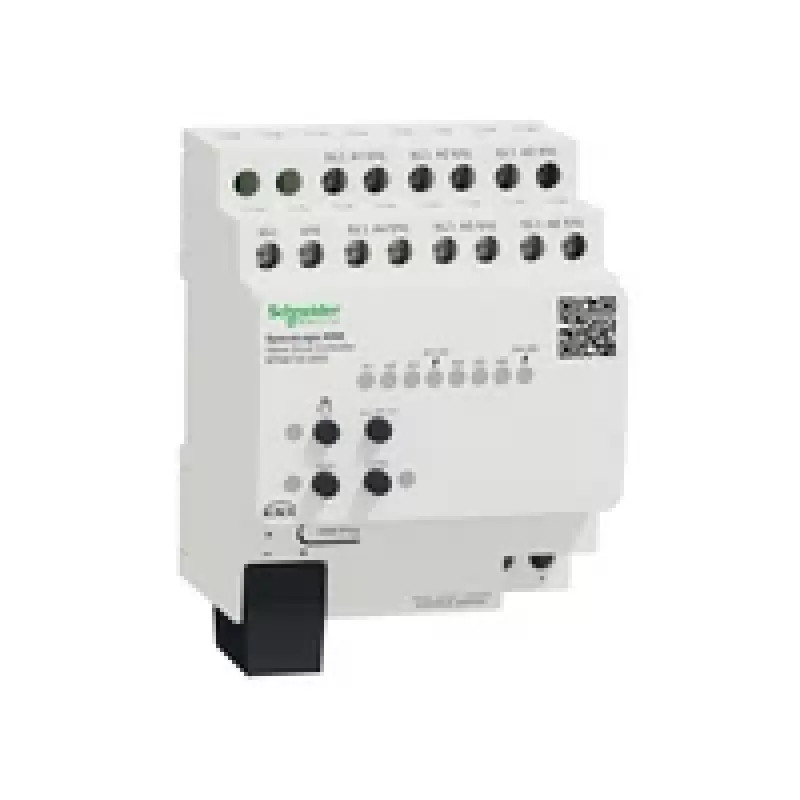

APC SpaceLogic KNX venttiilikäyttö toimilaite MTN6730-0002

The APC SpaceLogic KNX Valve Drive Actuator MTN6730-0002 is a high-quality KNX device designed for precise control of heating and cooling valves in building automation systems. With 2 independent channels, it supports both 2-point (ON/OFF) and pulse width modulation (PWM) control modes, making it suitable for a wide range of valve applications. The actuator is KNX certified and CE compliant, ensuring reliable integration into any SpaceLogic KNX system.

Advantages

This actuator offers flexible control options, manual override via push buttons, and LED status indicators for easy monitoring. Its compact DIN rail design (4 TE) saves space in control cabinets, while screw terminals simplify wiring. The device supports scene integration and provides status feedback, enhancing overall system intelligence.

Suitable for

• Heating and cooling valve control in residential and commercial buildings
• Integration into KNX building automation systems
• Applications requiring 2-point or PWM control
• Projects needing reliable, certified KNX components

Key specifications

• Product Type: KNX Valve Drive Actuator
• Number of Channels: 2
• Bus System: KNX
• Supply Voltage: 24-230 V AC
• Frequency: 50/60 Hz
• Current Consumption: Max. 50 mA
• Output Type: Switching output for electrothermal valve drives
• Max. Switching Current per Channel: 1 A (cos φ = 1)
• Control Modes: 2-point (ON/OFF), Pulse Width Modulation (PWM)
• Manual Operation: Yes, via push buttons
• Indicators: LED for status and manual operation
• Mounting: DIN rail (EN 60715)
• Module Width: 4 TE
• Operating Temperature: 0 to 45 °C
• Storage Temperature: -25 to 70 °C
• Protection Degree: IP20
• Connection Type: Screw terminals
• Functions: Control of heating/cooling valves, status feedback, scene integration
• Compatibility: SpaceLogic KNX system
• Certification: KNX certified, CE compliant

Recommendations

For optimal performance, pair this actuator with compatible SpaceLogic KNX controllers and electrothermal valve drives. Ensure proper wiring and configuration according to KNX standards.
