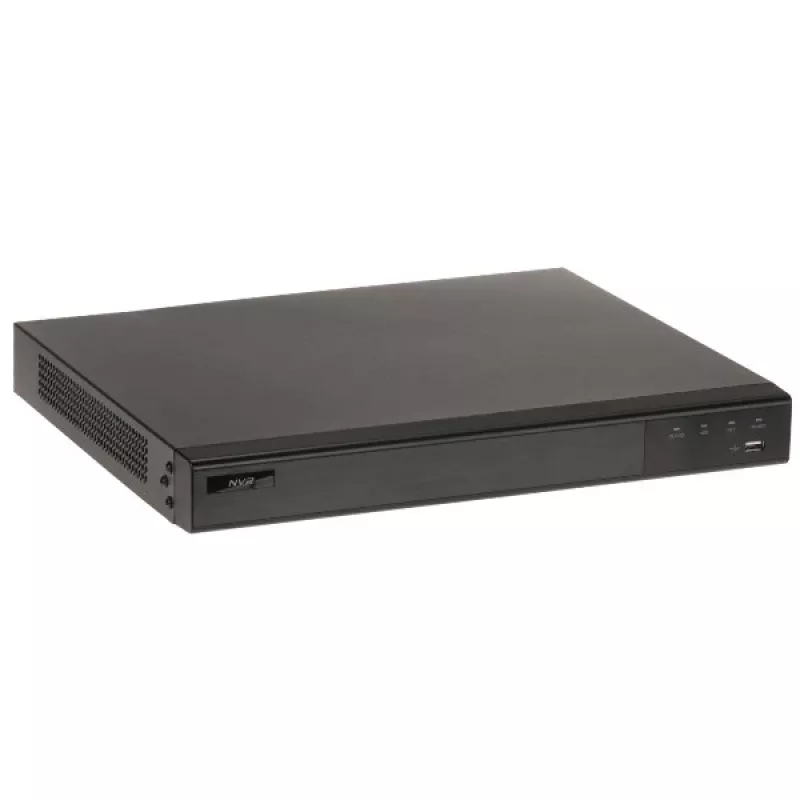

APTI-N3212AI-16P-I4 32-kanavainen 16-PoE IP NVR tekoälyllä

The APTI-N3212AI-16P-I4 is a high-performance 32-channel IP network video recorder with 16 integrated PoE ports, designed for professional surveillance systems. It supports up to 12MP resolution recording and features advanced AI capabilities including perimeter protection, SMD Plus, face detection, and face recognition. With a 256 Mbps incoming bandwidth and H.265+ compression, it ensures efficient storage and smooth video management.

Advantages

This NVR offers a cost-effective all-in-one solution with built-in PoE switch, eliminating the need for separate power injectors. Its AI features enhance security by enabling intelligent detection and alerts. The dual SATA bays support up to 20TB total storage, ideal for long-term recording.

Suitable for

• Medium to large retail stores
• Office buildings and warehouses
• Educational campuses
• Parking lots and public spaces

Key specifications

• Video Input Channels: 32 IP channels
• PoE Ports: 16 (IEEE 802.3af/at, 130W budget)
• Max Recording Resolution: 12MP (4K)
• Video Compression: H.265+/H.265/H.264+/H.264
• Incoming Bandwidth: 256 Mbps
• Outgoing Bandwidth: 200 Mbps
• Video Output: 1x HDMI (up to 4K), 1x VGA (up to 1080p)
• Audio: 1x RCA In / 1x RCA Out
• Alarm: 4x In / 2x Out
• HDD Bays: 2x SATA (up to 10TB each, max 20TB)
• Network: 1x RJ-45 10/100/1000 Mbps
• USB: 1x USB 2.0, 1x USB 3.0
• AI Features: Perimeter Protection (4 Ch), SMD Plus (8 Ch), Face Detection (2 Ch), Face Recognition (2 Ch)
• Synchronous Playback: 1/4/9/16 channels
• Power Supply: AC 100-240V, 50/60Hz
• Operating System: Embedded Linux

Recommendations

For optimal performance, use compatible APTI cameras and high-quality CAT6 cabling. Configure AI rules via the NVR's intuitive interface to maximize security efficiency.
