BCS 128-kanava 8K AI verkkotallennin NVR12808XR-A-8K-Ai

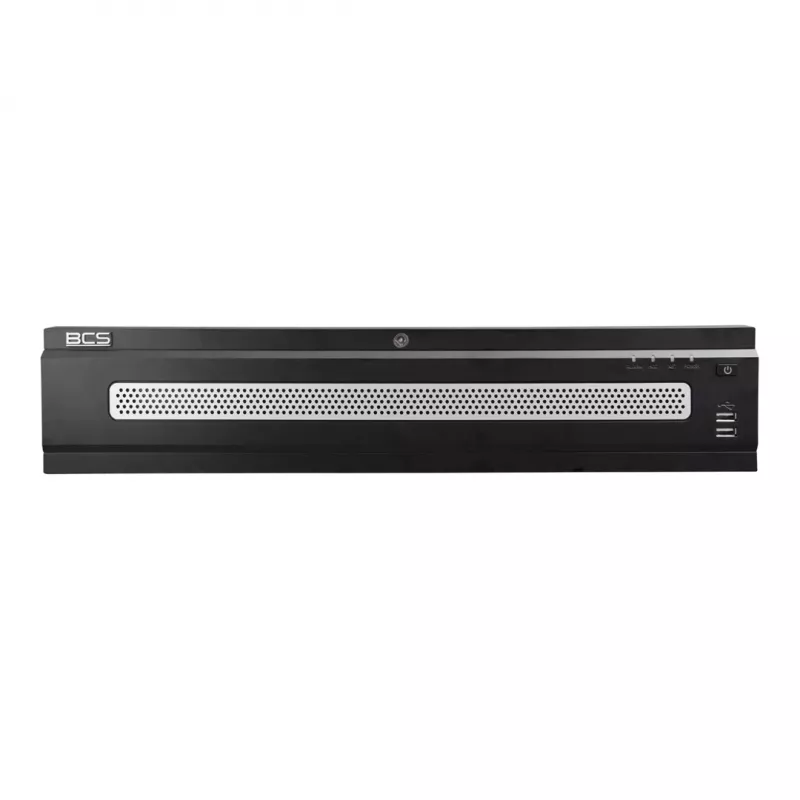

The BCS-L-NVR12808XR-A-8K-Ai is a high-performance 128-channel IP network video recorder designed for large-scale surveillance systems. With support for up to 32MP (8K) resolution recording and advanced AI analytics, this 3U rackmount NVR delivers exceptional video quality and intelligent security features. It offers 8 SATA III HDD bays with up to 128TB total storage capacity and RAID support for data redundancy.

Advantages

This NVR provides 128-channel recording at 8K resolution, ensuring crystal-clear video evidence. AI features include perimeter protection, face detection, ANPR, people counting, and heat mapping, making it ideal for retail, transportation, and enterprise security. The 3U rackmount form factor saves space in server rooms, and RAID support protects critical footage.

Suitable for

• Large commercial buildings and office complexes
• Industrial facilities and warehouses
• Transportation hubs (airports, train stations)
• Retail chains and shopping centers
• Government and public safety installations

Key specifications

• 128 IP camera channels with 384 Mbps incoming/outgoing bandwidth
• Max recording resolution: 32MP (8K)
• Video compression: H.265+/H.265/H.264+/H.264/MJPEG
• 8 SATA III HDD bays, up to 16TB each (128TB total)
• RAID 0/1/5/6/10 support
• 2x HDMI (up to 8K) and 1x VGA (up to 1080p) video outputs
• 16 alarm inputs / 8 alarm outputs
• 2x Gigabit Ethernet ports
• AI: Perimeter protection, face detection, SMD Plus, ANPR, people counting, heat map, POS
• Power consumption: <20W (without HDDs)

Recommendations

For optimal performance, use with BCS 8K IP cameras and enterprise-grade SATA HDDs. Ensure proper ventilation in the rack cabinet. RAID 5 or 6 is recommended for data redundancy.
