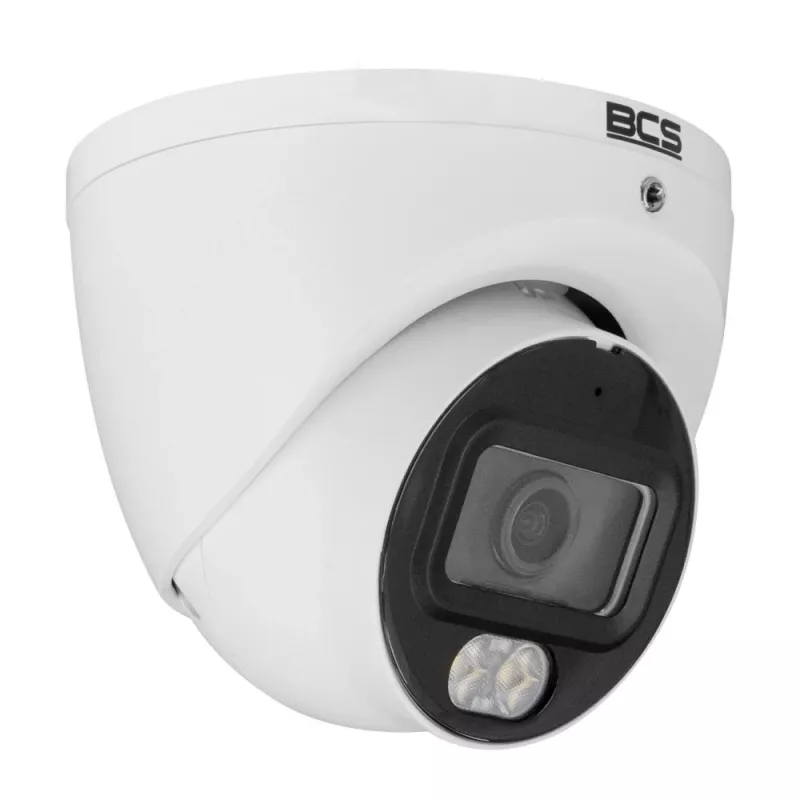

BCS BCS-EA18FWR3L3 8MP analoginen HD-kamera, 2,8mm, IR 30m, IP67

The BCS BCS-EA18FWR3L3 is a high-performance 8 Megapixel analog HD camera designed for professional surveillance. Featuring a 1/2.7" CMOS sensor, it delivers crisp 3840x2160 resolution at 15fps. With 4-in-1 video output (HDCVI, HDTVI, AHD, CVBS), it offers flexible integration. The fixed 2.8mm lens provides a wide 105° horizontal angle of view, and the built-in IR LEDs ensure clear images up to 30m in total darkness. Its IP67-rated metal housing guarantees reliable outdoor operation in temperatures from -30°C to +60°C.

Advantages

This camera combines high resolution with versatile connectivity and robust weatherproofing. The 8MP sensor captures fine details, while the 4-in-1 compatibility simplifies system upgrades. True day/night functionality with ICR and 30m IR range ensures 24/7 surveillance. DWDR and 2D/3D DNR enhance image quality in challenging lighting conditions.

Suitable for

• Outdoor perimeter monitoring
• Parking lots and entrances
• Warehouses and industrial sites
• Retail stores and offices

Key specifications

• Image Sensor: 1/2.7" CMOS
• Resolution: 8 MP (3840x2160)
• Video Output: 4-in-1 (HDCVI, HDTVI, AHD, CVBS)
• Frame Rate: 8M@15fps
• Lens: Fixed 2.8mm, FOV ~105°
• IR Range: Up to 30m
• Min. Illumination: 0.01 Lux (Color), 0 Lux (IR)
• Day/Night: Auto (ICR) / Color / B/W
• DWDR: Yes
• Noise Reduction: 2D/3D DNR
• IP Rating: IP67
• Power: DC 12V, Max 4.6W
• Operating Temperature: -30°C to +60°C
• Housing: Metal
• Connectivity: BNC, DC Jack
• OSD Menu: Yes

Recommendations

For optimal performance, use a compatible DVR supporting 8MP analog HD input and a regulated DC 12V power supply. Ensure proper cable quality for long-distance transmission.
