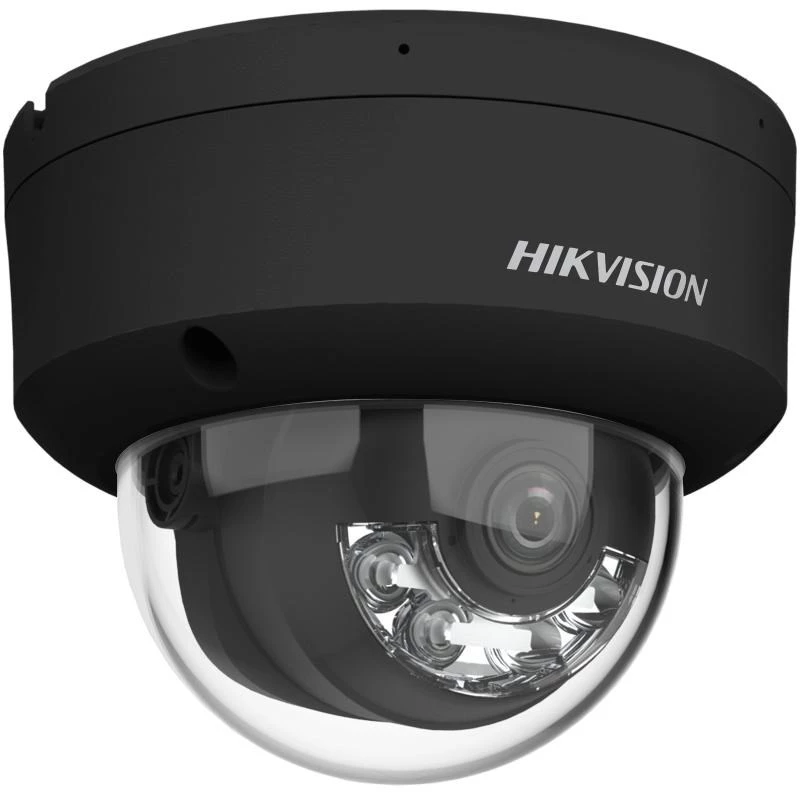

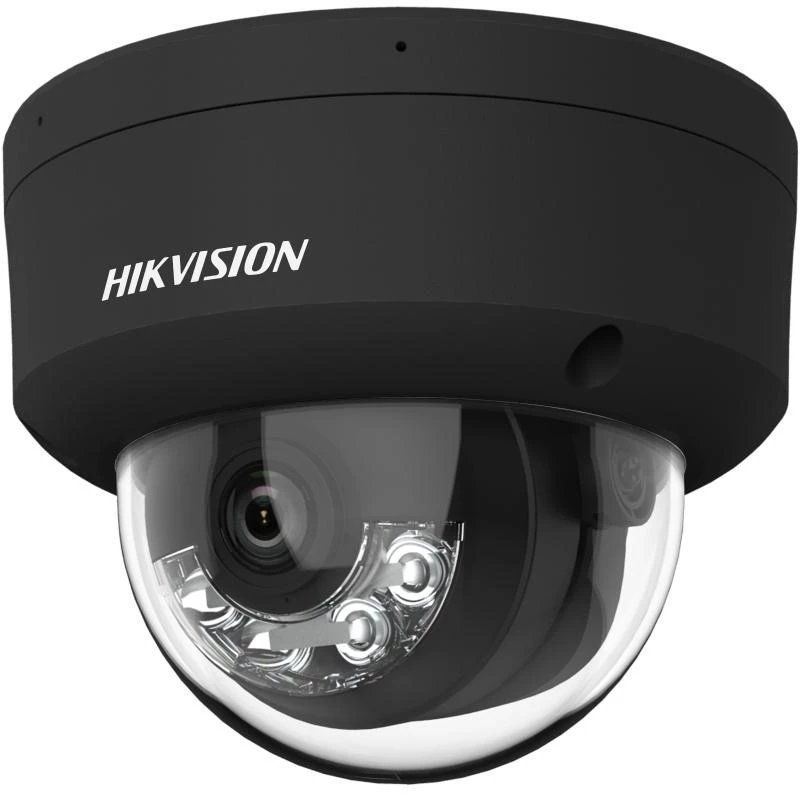

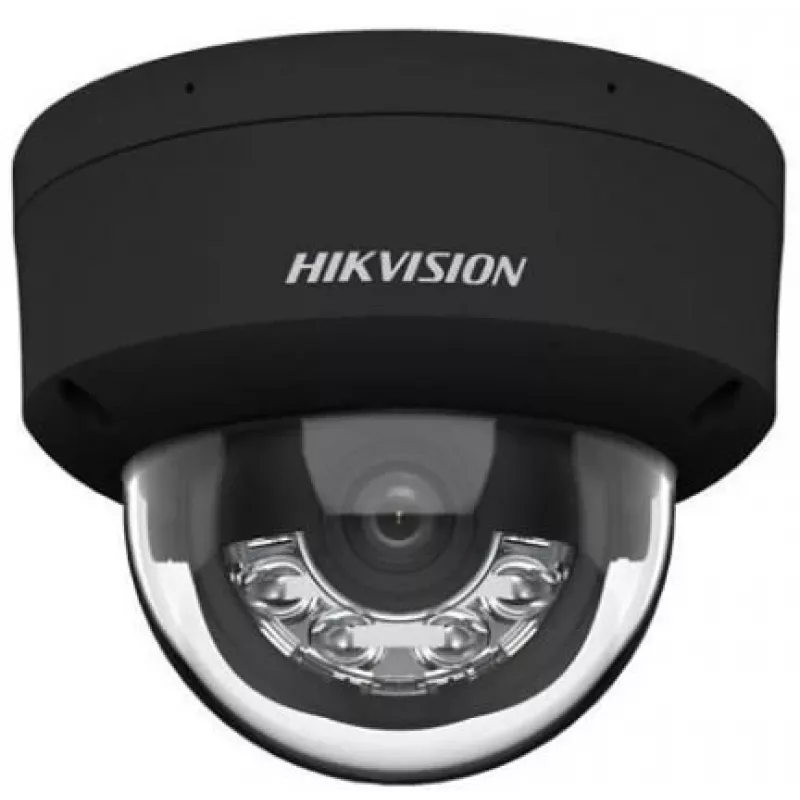

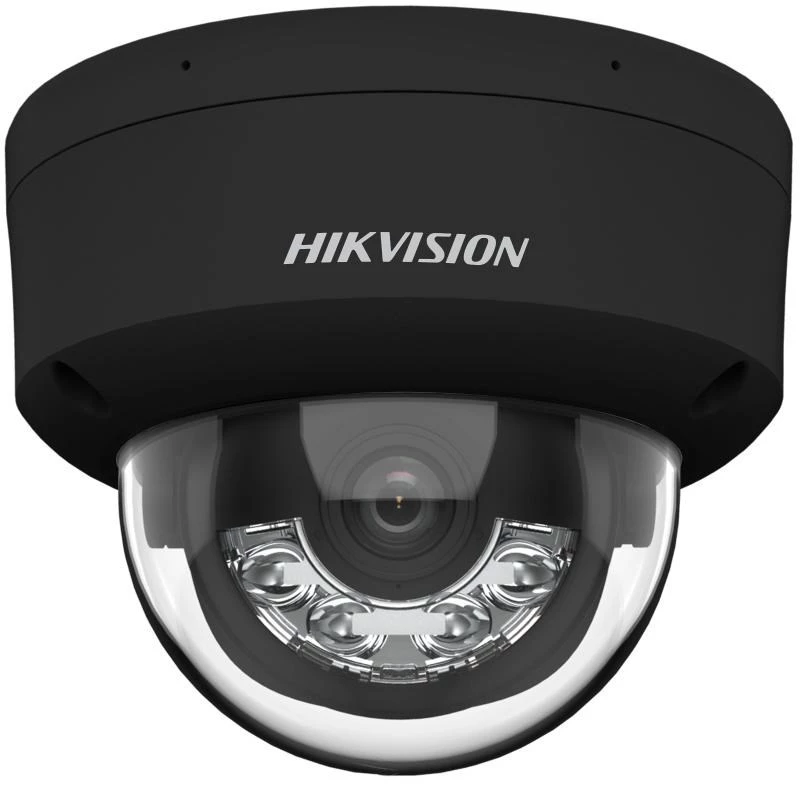

IP-valvontakamera Hikvision Pro Series DS-2CD2147G2H-LISU(2.8MM)

The IP security camera Hikvision Pro Series DS-2CD2147G2H-LISU(2.8MM) is a 4 MP Smart Hybrid Light fixed dome network camera designed for outdoor ceiling or wall mounting. It delivers 2680 x 1520 resolution with a 2.8 mm lens, a 104° horizontal and 54.4° vertical field of view, and 355° rotation capability. The camera uses a CMOS sensor, supports video motion detection, and offers up to 61 m detection distance while maintaining efficient bandwidth and storage usage for reliable surveillance in varied lighting conditions.

Advantages

The Hikvision DS-2CD2147G2H-LISU provides high-resolution imaging with ColorVu technology for improved performance in low light, a wide viewing angle and near-full rotation for flexible coverage, and built-in motion detection to support event-triggered recording. Its wired Ethernet connectivity ensures stable data transmission, and the compact, weather-suitable dome design and 0.525 kg weight make it practical for outdoor ceiling or wall installation.

Suitable for

• Perimeter and entrance monitoring for small to medium outdoor sites
• Parking lots and driveways
• Retail storefronts and exterior building façades
• Public walkways and communal outdoor areas

Key specifications

• Model: Hikvision DS-2CD2147G2H-LISU(2.8MM)
• Resolution: 2680 x 1520 (4 MP)
• Lens: 2.8 mm
• Field of view: 104° horizontal, 54.4° vertical
• Rotation: 355°
• Sensor: CMOS
• Frame rate: 30 fps
• Detection distance: up to 61 m
• Connectivity: Wired Ethernet (no Wi‑Fi)
• Features: Video motion detection, ColorVu low-light imaging
• Mounting: Ceiling or wall
• Placement: Outdoor
• Colour: Black
• Weight: 0.525 kg

How to use

Mount the camera on a stable ceiling or wall surface using appropriate anchors and ensure the dome is oriented to cover the intended area. Connect the camera to a wired Ethernet network for power and data (PoE if supported by your system) and configure the device through Hikvision-compatible management software or a network video recorder. Adjust the viewing angle and rotation to obtain the desired coverage, set motion detection zones and recording schedules, and verify image quality across different lighting conditions.

Recommendations

For reliable outdoor operation, install the camera under an overhang where possible, use surge protection on network cabling, and perform periodic cleaning of the dome cover. Configure motion detection sensitivity and recording retention according to local requirements to balance event capture with storage capacity.
