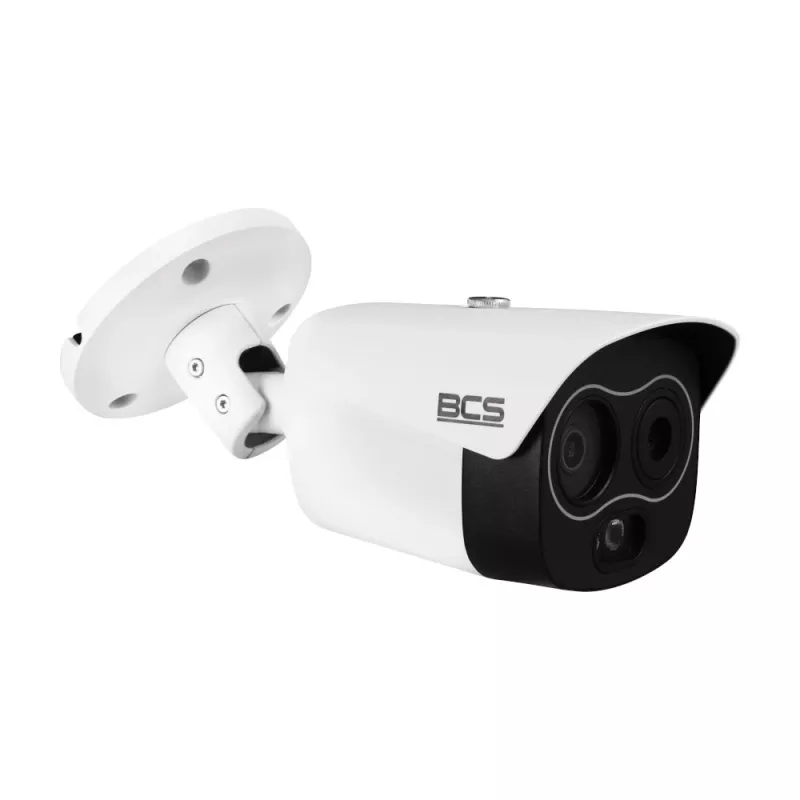

BCS-L-TIP242FR3L-THT-AI1 terminen IP-kamera, 4MP optinen, 256x192 terminen, 4mm objektiivi, AI, IP67

The BCS-L-TIP242FR3L-THT-AI1 is a professional dual-spectrum thermal IP camera combining a 4MP optical sensor with a 256x192 thermal sensor. Designed for critical surveillance and temperature monitoring, it features AI-based fire detection, intrusion detection, and temperature measurement from -20°C to +550°C. With IP67 weatherproof housing and PoE support, it is ideal for outdoor perimeter security and industrial monitoring.

Advantages

Dual-spectrum imaging provides both visible and thermal views for 24/7 situational awareness. AI analytics reduce false alarms by distinguishing humans, vehicles, and fire events. Accurate temperature measurement enables early fire prevention and process control. Rugged IP67 design ensures reliable operation in harsh environments.

Suitable for

• Perimeter security for critical infrastructure
• Industrial temperature monitoring and fire prevention
• Outdoor surveillance in low-light or no-light conditions
• Smart city and traffic monitoring

Key specifications

• Thermal Sensor: 256x192, 12μm pixel pitch, NETD <40mK
• Thermal Lens: 4mm, FOV 50°x37.2°
• Optical Sensor: 4MP 1/2.7" CMOS, 3mm lens, FOV 84°x44.8°
• Temperature Range: -20°C to +550°C, accuracy ±2°C or ±2%
• AI Functions: Fire detection, temperature measurement, human/vehicle detection, line crossing, intrusion
• Video Compression: H.265, H.264, MJPEG
• Max Frame Rate: 25/30fps optical, 25fps thermal
• Storage: MicroSD up to 256GB
• Audio: 1 input, 1 output
• Alarm: 2 input, 2 output
• Network: 1x RJ-45 10/100Mbps
• Power: DC 12V / PoE (802.3af)
• Ingress Protection: IP67
• Operating Temperature: -30°C to +60°C

Recommendations

For optimal performance, use a PoE switch or injector (802.3af). Mount the camera at a height of 3-5 meters for best coverage. Ensure the lens is clean and free from obstructions. For temperature measurement applications, calibrate the camera according to the user manual.
