AQARA Touchscreen Dial V1 (DS-K01D) - kiertokytkin näytöllä

Highlights:

• Multi-Device/Scene Control: Equipped with 2 Relay switches and 6 wireless switches①, users can control on/off of the device through the relay switch, and the touchscreen dial also supports different Aqara devices② control in one screen, such as colors of Aqara light bulbs, the percentage of the curtain open or closed through Aqara curtain driver, the temperature of the Aqara thermostat. What’s more, the touchscreen dial supports adjusting the device by sliding, clicking, and rotating, providing users with a variety of control methods.

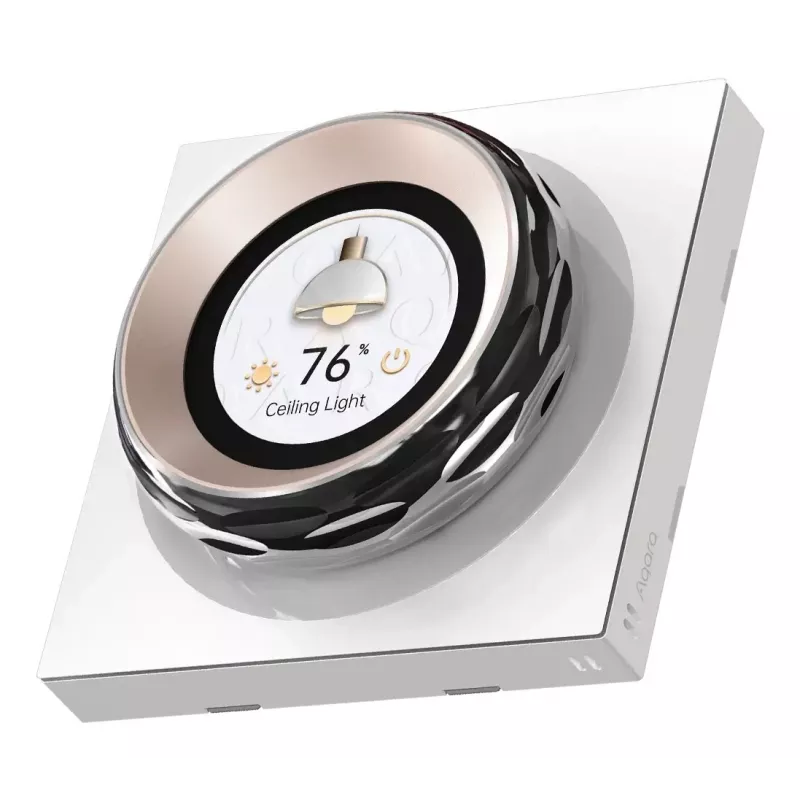

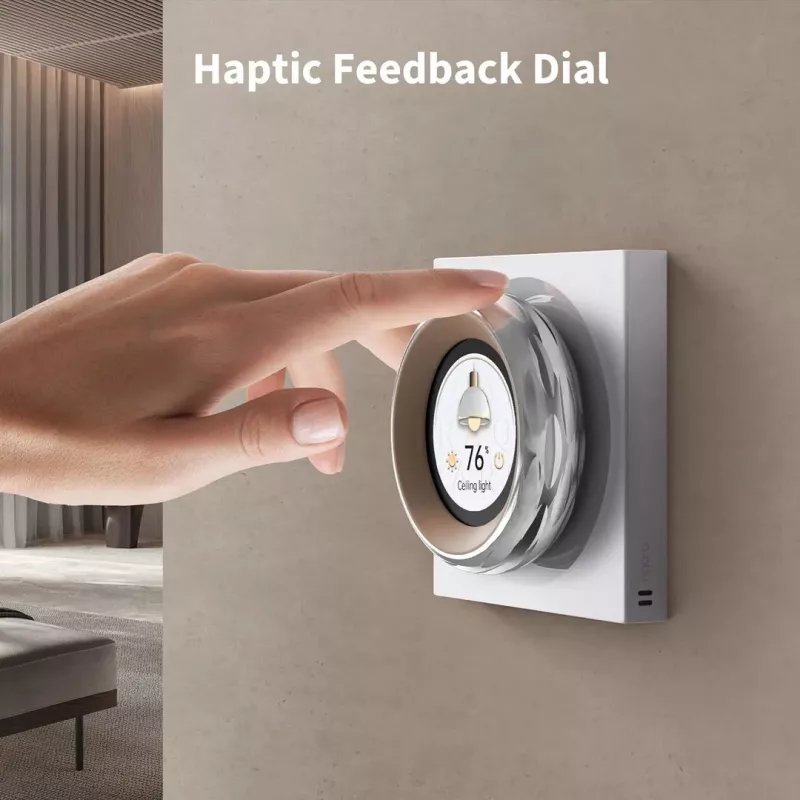

• Haptic Feedback Dial: The Aqara Touchscreen Dial V1 EU is equipped with haptic feedback rotary dial③, which tells the user the accuracy through vibration and sound feedback. Different from other smart switch, it can not only turn on and off, but also adjust the device between 1%-100%, to meet users' needs for precise adjustment.
• Third-Party Compatibility over Wi-Fi: Support dual-band Wi-Fi, which has stronger anti-interference ability. Users can choose the appropriate frequency band according to the actual use range. 5GHz is faster, 2.4GHz has a wider coverage range, and is compatible with Apple HomeKit and Home Assistant. In addition, the switch can connect to Amazon Alexa and Google Home via cloud.
• Temperature & Humidity Sensing: Built-in temperature and humidity sensor, even if the user does not have a temperature and humidity sensor at home, it can also monitor the indoor temperature and humidity④ in real time. What’s more, users can connect the Aqara temperature and humidity sensor and the Aqara thermostat E1 to achieve automatic and personalized temperature adjustment.
• Proximity Activation⑤: The Aqara Touchscreen Dial V1 EU has a built-in presence sensor, allowing users to activate the screen based on distance. Users can trigger the screen to light up according to the actual area of the space, reducing light pollution during use. Users can also set auto-brightness in the screen to ensure optimal visibility and protect your eyes. The switch's default automation allows users to set automation according to their preferences when someone approaches, bringing users a convenient experience.
• Personalized Screen: Provides screen protection for displaying time, date, weather, indoor temperature and humidity. Each screen protection mode has 4 themes. Users can choose a beautiful and personalized UI interface.
• Sleek and Beautiful Design Surface: Adopts advanced sandblasting technology and skin-feeling Matte AG Glass Technology, and the surface is as smooth and warm as skin, and it feels very comfortable. CNC Precision Engraving creates a unique edge design, showing high-end quality in details. Users can feel the pleasant experience brought by the design aesthetics and silky feel.

Disclaimers:

• ① This feature might be unavailable in some third-party Matter ecosystems, but is already supported by the device. To guarantee this functionality, we suggest connecting the device to Aqara Home.
• ② Available types and model may vary based on current compatibility.
• ③The dial doesn't support 'rotate' action in Aqara Home automation, it can only rotate to control compatible Aqara devices on-screen. Also, the dial is not exposed to third-party systems.
• ④Temperature and humidity status can also serve as IF conditions for triggering automations.
• ⑤Proximity activation distance can be set within five different settings from near to far (0.2-0.6-1-1.5-2 meters).

Specifications：

• Product Name: Touchscreen Dial V1 EU
• Model: DS-K01D
• Product Dimensions: 86 × 86 × 62.1 mm (3.39 ×   3.39 ×   2.45 in.)
• Operating Temperature: -10°C ~ 40°C (14°F ~   104°F)
• Operating Humidity: 0 ~ 95% RH, no condensation
• Electrical Rating: 200–240 VAC, 50/60 Hz, Max 8 A (Resistive Load), μ
• Wireless Protocols: Wi-Fi IEEE 802.11 a/b/g/n/ac 2.4GHz/5GHz, Zigbee IEEE802.15.4, Bluetooth

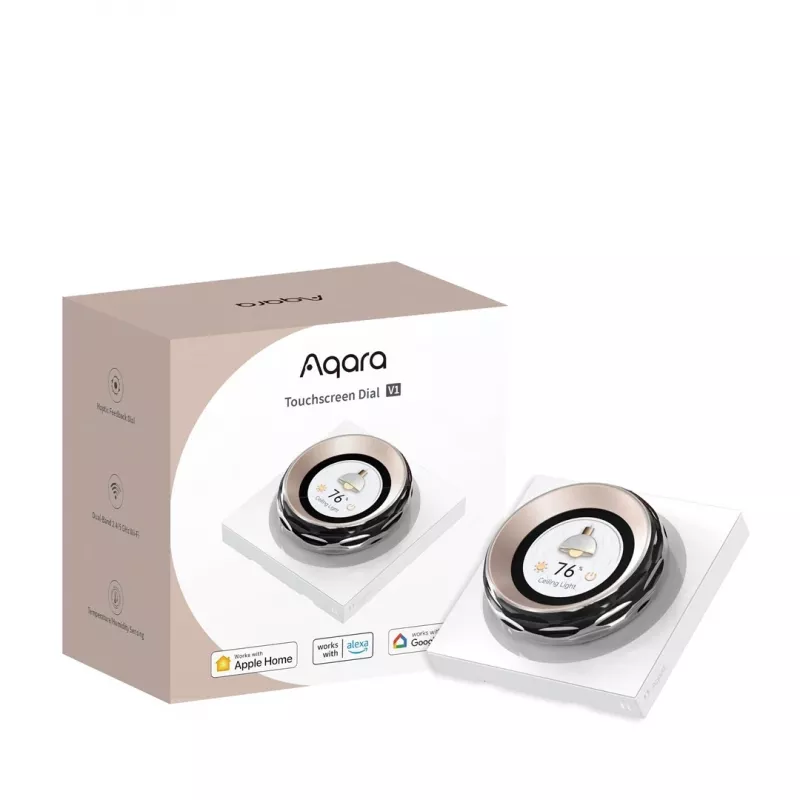

What is in the Box:

• Touchscreen Dial V1 EU × 1,
• User Manual × 1,
• Compliance Statement × 1,
• Screw Kit × 2
