Arduino ABX00135 Modulino joystick -moduuli

Arduino ABX00135 Modulino joystick -moduuli
Arduino ABX00135 Modulino joystick -moduuli
Arduino ABX00135 Modulino joystick -moduuli
Arduino ABX00135 Modulino joystick -moduuli
Arduino ABX00135 Modulino joystick -moduuli
Arduino ABX00135 Modulino joystick -moduuli
Arduino ABX00135 Modulino joystick -moduuli
Arduino ABX00135 Modulino joystick -moduuli
37,39 €
PDF
PDF
Varasto 38 Tuotekoodi 3547118 Malli ABX00135 Takuu 2 vuotta

Toimitus ja palautukset

Arvioitu toimitusaika maanantai 14. joulukuuta
Saat päivitykset yksityiskohtaisen seurantajärjestelmän kautta
Maksuvaihtoehdot
MaksukorttiVisaMastercardPayPalApple PayGoogle PayTilisiirto

Esitä kysymys – AI-avustaja vastaa heti.

Kuvaus

Adding analog joystick control to your Arduino projects can be tricky—wiring potentiometers, buttons, and pull-up resistors takes time and often leads to messy breadboards. The Arduino Modulino Joystick solves this by integrating a 2-axis analog joystick with a push-button on a compact, breadboard-friendly board. Just plug it into your Arduino, Raspberry Pi, or any microcontroller with a 5-pin header and start reading X, Y, and button states immediately.

Who is it for

This module is for makers, robotics enthusiasts, and game developers who need precise analog input for their projects. Whether you're building a robot controller, a custom gamepad, or an interactive installation, the Modulino Joystick provides reliable, self-centering control.

Main features

  • 2-axis analog joystick with self-centering lever for smooth, precise control
  • Integrated push-button activated by pressing the joystick down
  • Operates on 3.3V to 5V DC, compatible with Arduino, Raspberry Pi, ESP32, and other microcontrollers
  • Simple 5-pin interface: VCC, GND, VRX, VRY, SW
  • Compact PCB (34 x 26 mm) with standard 0.1" pitch for breadboard or PCB mounting
  • Durable FR-4 PCB and plastic joystick in blue and black

Specifications

  • Product Type: Joystick Module
  • Control Type: 2-Axis Analog (X, Y)
  • Button Type: 1x Digital Push-Button
  • Output Interface: Analog Voltage (X, Y axes), Digital (Button)
  • Operating Voltage: 3.3V - 5V DC
  • Connectivity: 5-Pin Header (VCC, GND, VRX, VRY, SW)
  • Sensor Technology: Potentiometer
  • Mounting: Breadboard Compatible, PCB Mount
  • PCB Dimensions (L x W): 34 x 26 mm
  • Total Height (with lever): 32 mm
  • Lever Type: Self-centering
  • Material: FR-4 PCB, Plastic Joystick
  • Color: Blue PCB, Black Joystick

Tips

Connect the module to your microcontroller's analog inputs for X and Y axes, and a digital input for the button. The joystick's resting position outputs approximately half of VCC on both axes; use the Arduino map() function to convert readings to a useful range. For breadboard use, solder header pins or use a 5-pin female-to-male jumper cable.

Tekniset tiedot

Tekniset tiedot
Analogiset tattiohjaimet
1
EAN
7630049205802
Kategoria
Joystick-moduuli
Korkeus
32 mm
Laitetyyppi
Joystick
Laitteen liitäntä
5-Pin Header
Leveys
34 mm
Liitäntätekniikka
Langallinen
Malli
ABX00135
Merkki
Arduino
MPN
ABX00135
Painikkeiden määrä
1

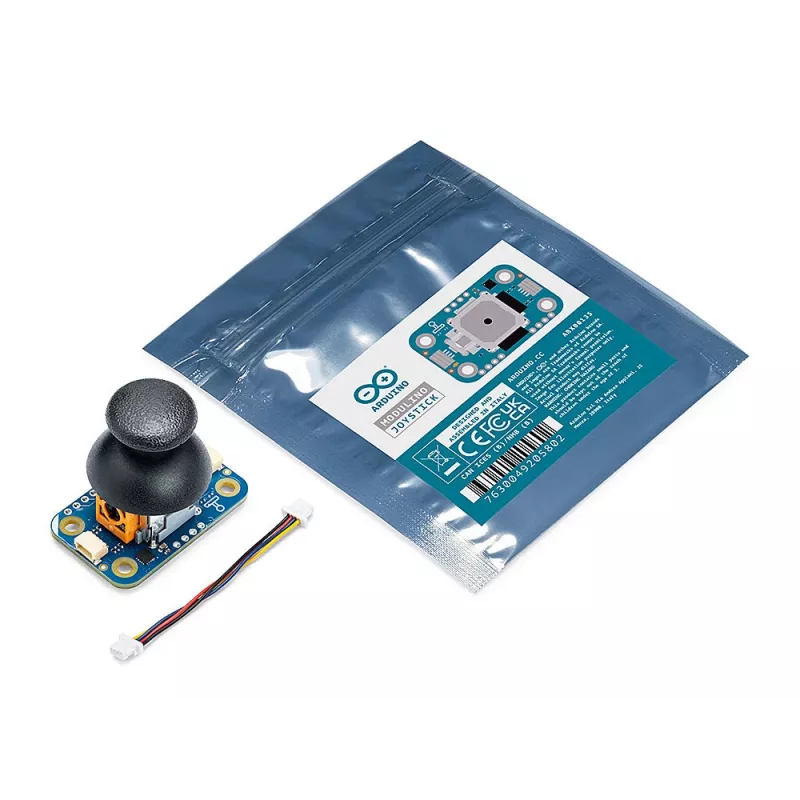

Pakkauksen sisältö
1x Joystick Module
Syvyys
26 mm
Tuotteen väri
Musta
Virtalähde
DC
Yhteensopivuus
Arduino, Raspberry Pi, ESP32, mikro-ohjaimet
