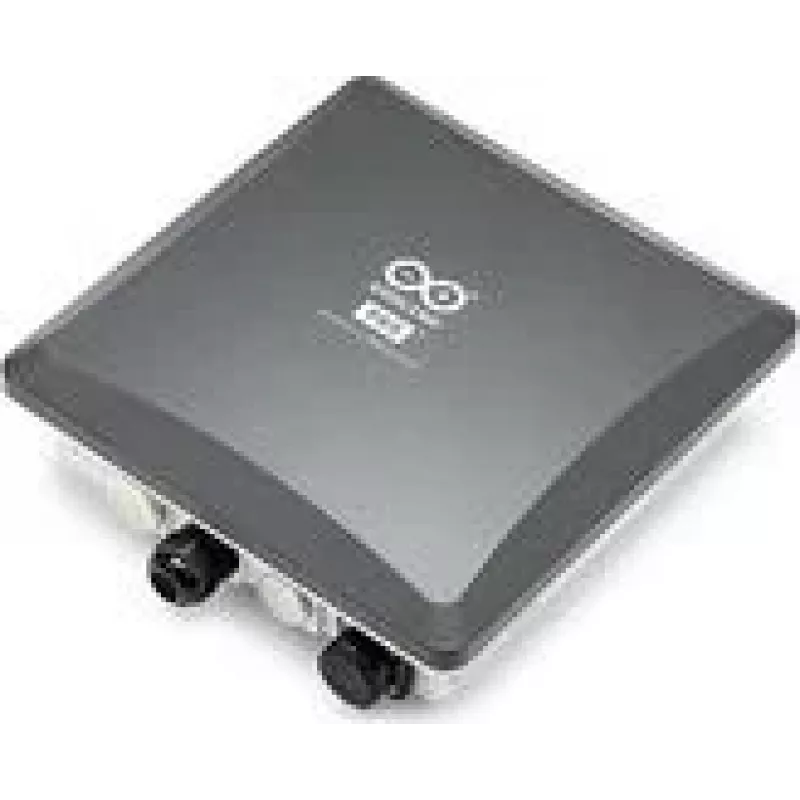

Arduino WisGate Edge PRO Europe LoRaWAN yhdyskäytävä (TPX00095)

The WisGate Edge PRO is a professional-grade LoRaWAN gateway engineered for outdoor industrial deployments. Unlike typical indoor gateways, it combines a rugged IP67 enclosure with multiple backhaul options—Ethernet, Wi-Fi, and 4G LTE—to ensure reliable connectivity in remote or harsh environments.

Highlights

• LoRaWAN gateway for EU868 band with Semtech SX1303 chipset
• Quad-core MediaTek MT7628AN processor with 512 MB RAM and 8 GB eMMC
• Integrated GPS, 4G LTE, Wi-Fi, and Ethernet for flexible backhaul
• IP67-rated enclosure for outdoor use, operating from -30°C to 65°C
• Powered by OpenWrt with secure boot and VPN support

In daily use

Deploy the WisGate Edge PRO on a wall or pole to collect data from LoRaWAN sensors across a wide area. Its eight uplink channels and one downlink channel handle high-density sensor networks, while the integrated GPS provides accurate time synchronization and location. Manage the gateway remotely via web UI or SSH, and connect it to your network using PoE or a 12V DC supply.

Full specifications

• Frequency Band: EU868 (863-870 MHz)
• LoRa Chipset: Semtech SX1303
• LoRa Channels: 8 uplink / 1 downlink (Half-duplex)
• Processor: MediaTek MT7628AN (Quad-core Cortex-A7 1.2 GHz)
• RAM: 512 MB DDR3
• Storage: 8 GB eMMC
• Backhaul: Ethernet (RJ45), Wi-Fi (2.4 GHz), 4G LTE Cat 4 (SIM slot)
• GPS: Integrated u-blox MAX-7Q
• Power Input: DC 12V (terminal block), PoE (802.3af/at)
• Antenna Connectors: 1x N-type (LoRa), 1x RP-SMA (Wi-Fi), 1x SMA (GPS), 1x SMA (Cellular)
• Enclosure Rating: IP67
• Operating Temperature: -30°C to 65°C
• Operating System: OpenWrt
• Security: Secure Boot, Hardware Watchdog, VPN (OpenVPN, IPsec)
• Management: Web UI, SSH
• LoRaWAN Version: 1.0.3 (Class A/B/C)
• Mounting: Wall / Pole Mount

Final note

Built for reliable outdoor LoRaWAN connectivity, the WisGate Edge PRO is a solid choice for industrial IoT networks.
