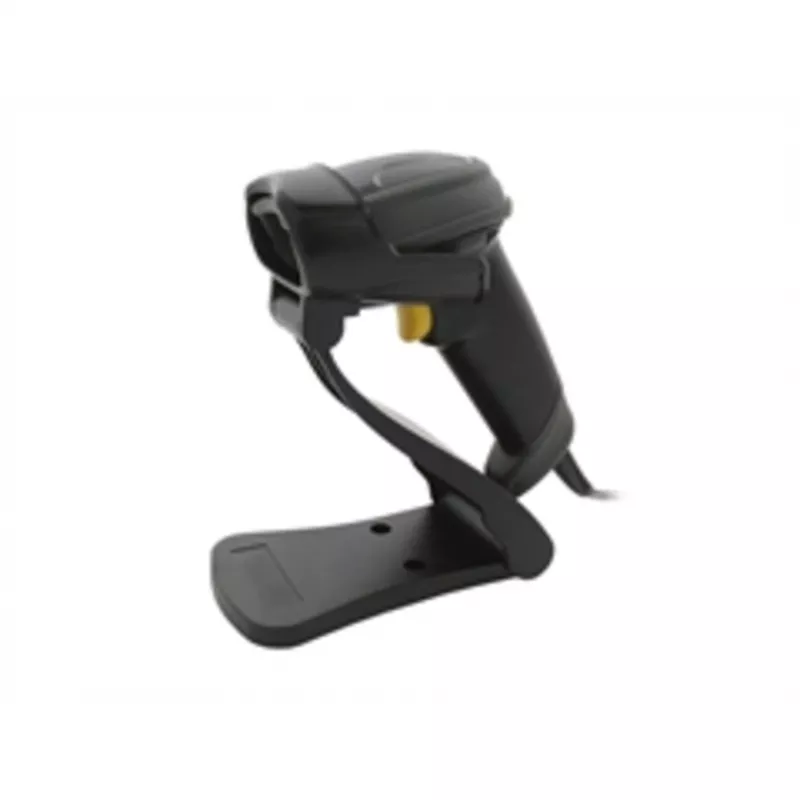

ARTDEV AS1320-U-B 2D USB-viivakoodiskanneri musta

The ARTDEV AS1320-U-B is a high-performance 2D area imager barcode scanner designed for fast and reliable scanning of both 1D and 2D barcodes. With a wired USB interface, this handheld scanner offers plug-and-play simplicity, making it an ideal choice for retail, logistics, and industrial environments. Its compact and ergonomic design ensures comfortable use during extended scanning sessions.

Advantages

Equipped with a CMOS sensor and white LED illumination, the AS1320-U-B delivers accurate reads even on damaged or poorly printed barcodes. The scanner supports a wide range of symbologies including QR codes, Data Matrix, and PDF417. With a drop resistance of 1.5 meters and an IP42 rating, it is built to withstand daily wear and tear. The 1.8-meter cable provides flexibility in setup, and the beeper and LED indicators offer clear feedback for successful scans.

Suitable for

• Retail point-of-sale systems
• Warehouse and inventory management
• Logistics and shipping applications
• Healthcare and laboratory tracking
• Manufacturing and production line scanning

Key specifications

• Scanner Type: 2D Area Imager
• Connectivity: Wired USB
• Sensor: CMOS, 640 x 480 pixels
• Light Source: White LED (Illumination), Red LED (Aiming)
• Drop Resistance: 1.5 m
• IP Rating: IP42
• Operating Temperature: -20°C to 60°C
• Cable Length: 1.8 m
• Input Voltage: DC 5V
• Current Consumption: Max 120 mA
• Scan Angle: 40° Horizontal, 30° Vertical
• Depth of Field: 40-230 mm (13 mil UPC), 40-220 mm (20 mil QR)
• Indicators: Beeper, LED
• Colour: Black

Recommendations

For optimal performance, ensure the scanner is connected to a USB port that provides stable 5V power. The device is compatible with Windows, Linux, and mobile operating systems. Regular cleaning of the scan window is recommended to maintain reading accuracy.
