ARTDEV sarja/RS232 25-nastainen liitäntä AP-8150v2/v3:lle ja AP-8220:lle

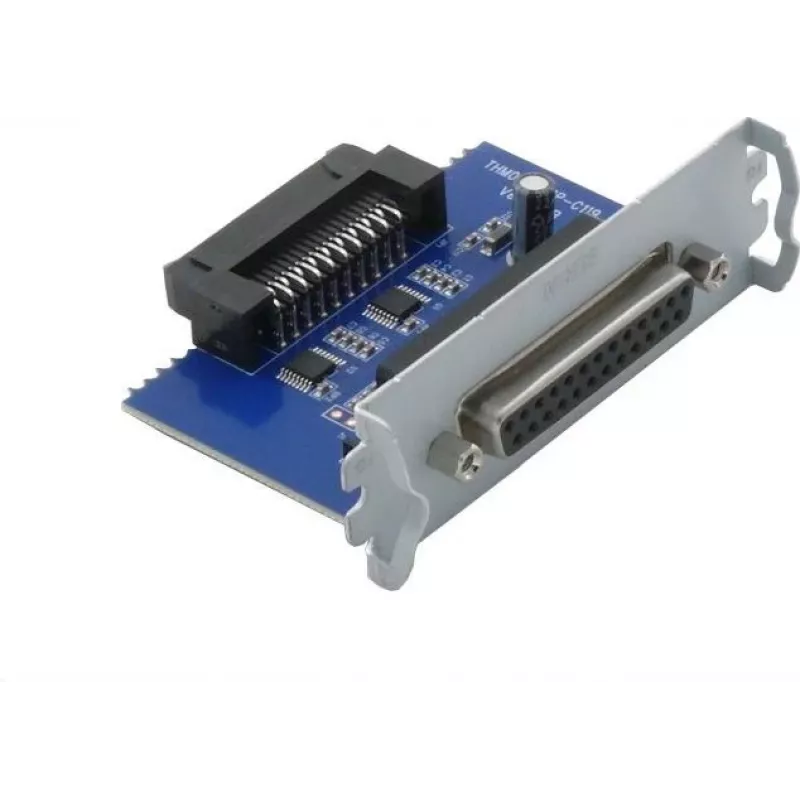

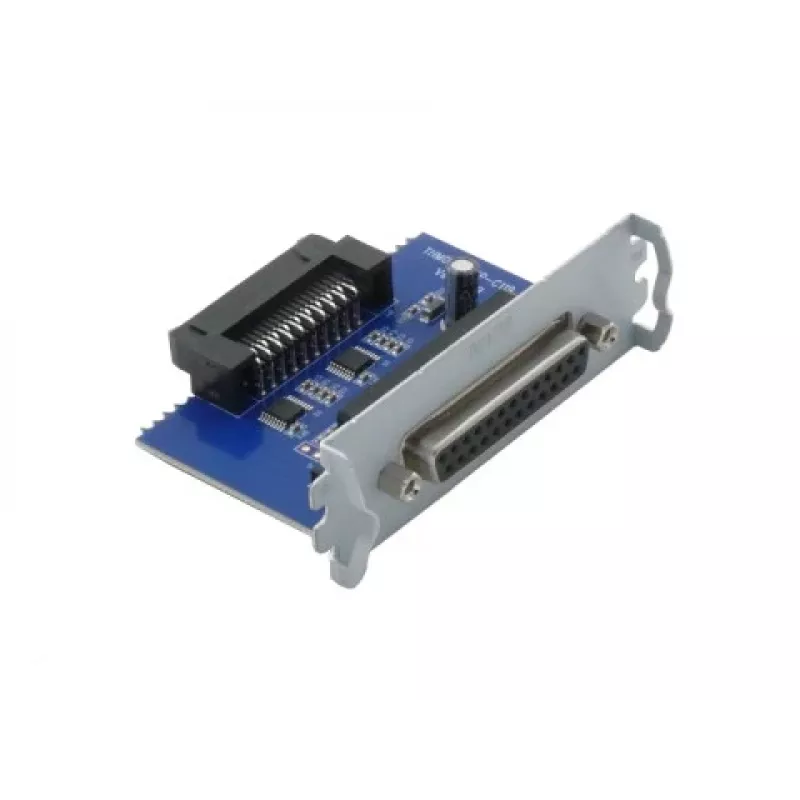

The ARTDEV Serial/RS232 25-pin Interface is a high-quality internal expansion module designed to add a legacy RS232 serial port to compatible ARTDEV industrial devices. This plug-in module enables reliable asynchronous full-duplex communication at data rates up to 115.2 kbps, making it ideal for connecting older serial peripherals, industrial controllers, and data acquisition equipment.

Advantages

Seamlessly integrates with ARTDEV AP-8150v2, AP-8150v3, and AP-8220 systems. Provides a standard DB25 male connector for direct connection to RS232 devices. Powered directly by the host system, eliminating the need for an external power supply. Easy plug-and-play installation with no additional configuration required.

Suitable for

• Industrial automation and control systems
• Legacy device connectivity (printers, modems, sensors)
• Data communication and monitoring applications
• Replacing or expanding serial ports on compatible ARTDEV platforms

Key specifications

• Product Type: Serial Interface Module
• Interface Standard: RS232
• Connector: D-Sub 25-pin (DB25) male
• Number of Ports: 1
• Data Transfer Rate: Up to 115.2 kbps
• Form Factor: Internal expansion board
• Host Interface: Proprietary internal connector
• Operating Mode: Asynchronous, full-duplex
• Power Source: Supplied by host system
• Compatibility: ARTDEV AP-8150v2, AP-8150v3, AP-8220

Recommendations

For optimal performance, ensure your host device is running the appropriate serial driver for your operating system. This module is a direct replacement for the original ARTDEV serial interface and is fully tested for compatibility.
