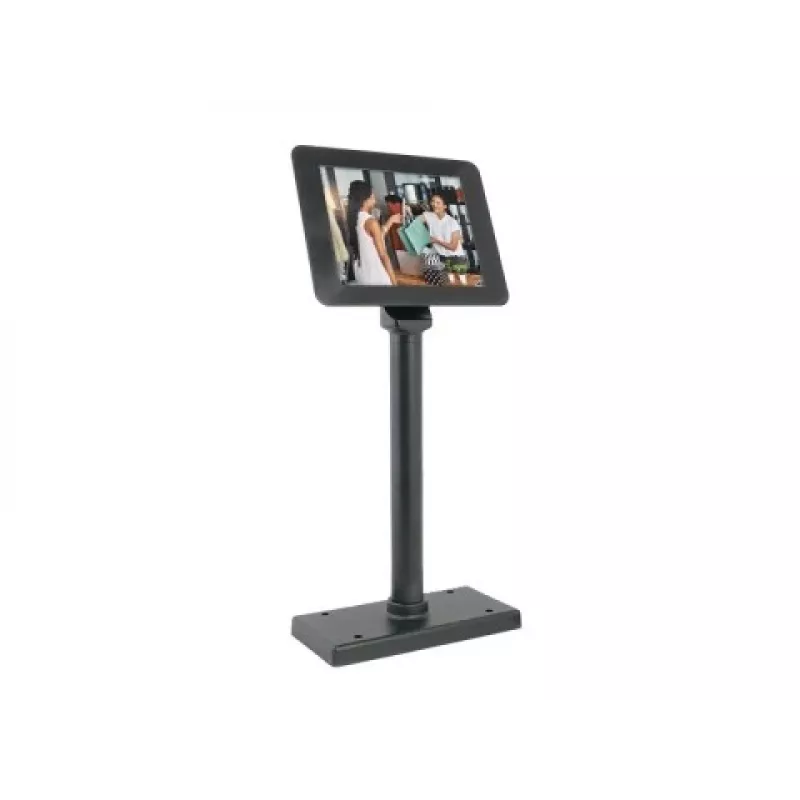

ARTDEV SD800-C 8 tuuman True Flat kosketusnäyttö POS-monitori USB-C DisplayPort Alt Mode, 1024x768, PCAP

With a 1024 x 768 resolution on an 8-inch True Flat TFT LCD, the ARTDEV SD800-C delivers crisp detail for point-of-sale and interactive kiosk applications. The projected capacitive touchscreen responds to touch via USB, while the USB-C port carries both video (DisplayPort Alt Mode) and power, reducing cable clutter.

Overview

The SD800-C is built around an 8-inch LED-backlit panel with a 4:3 aspect ratio, 300 cd/m² brightness, and a 600:1 contrast ratio. Its 140° horizontal and 120° vertical viewing angles keep the screen readable from off-center positions. The monitor is powered entirely through its USB-C connection, eliminating the need for a separate power brick.

What stands out

• USB-C with DisplayPort Alt Mode and Thunderbolt compatibility for single-cable video and power
• True Flat edge-to-edge glass design for easy cleaning and modern aesthetics
• VESA 75x75mm mounting pattern for flexible installation on stands, walls, or poles
• Compact 8-inch size ideal for POS terminals, self-service kiosks, and industrial control panels

Technical details

• Display: 8-inch True Flat TFT LCD, LED backlight
• Resolution: 1024 x 768 (XGA), 4:3 native aspect ratio
• Brightness: 300 cd/m² typical
• Contrast ratio: 600:1 typical
• Response time: 15 ms typical
• Viewing angles: 140° horizontal, 120° vertical
• Touchscreen: Projected capacitive (PCAP), USB interface
• Video input: USB-C (DisplayPort Alt Mode, Thunderbolt compatible)
• Power: USB-C powered (5V DC)
• Mounting: VESA 75x75 mm
• Operating temperature: 0°C to 40°C
• Storage temperature: -20°C to 60°C
• Operating humidity: 10% to 90% non-condensing

Our verdict

The ARTDEV SD800-C is a purpose-built touch monitor for modern POS and kiosk deployments. Its USB-C single-cable connectivity and VESA mounting make installation straightforward, while the True Flat PCAP touchscreen ensures reliable, responsive interaction in high-traffic environments.
