Asennusjalusta Hekatron AP 143 A paloilmoitinjärjestelmiin

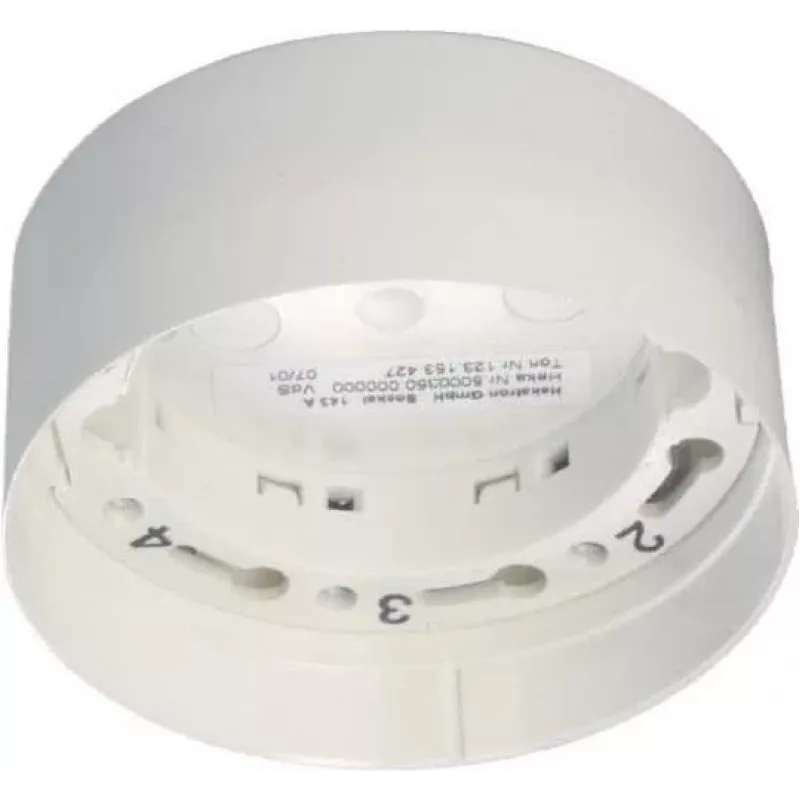

Mounting Base Hekatron AP 143 A for Fire Alarm Systems — Hekatron Vertriebs GmbH is a dedicated base plate engineered to provide secure mechanical and electrical connection between compatible Hekatron detectors and fire alarm wiring. The AP 143 A is designed for straightforward installation and removal, enabling reliable detector seating and easy replacement while preserving the original system integrity in commercial and residential alarm installations.

Advantages

The mounting base offers a precise fit for compatible Hekatron detectors, ensuring consistent contact and stable operation. Its construction supports easy alignment during installation and secure locking to prevent accidental loosening. The design simplifies routine maintenance and detector replacement without the need to disturb fixed wiring, reducing service time and preserving circuit continuity.

Suitable for

• Securing Hekatron-compatible smoke and heat detectors in commercial buildings
• Residential fire alarm installations requiring original Hekatron components
• Maintenance and replacement operations where fast detector swap-out is needed
• New installations that follow manufacturer specifications for system compatibility

Key specifications

• Function: Fixed mounting base for compatible fire detectors
• Connection type: Mechanical locking and electrical contact interface designed for matched detector pins
• Material characteristics: Durable plastic construction suitable for indoor alarm environments
• Mounting: Surface or recessed mounting compatible with standard junction boxes and conduits where applicable
• Maintenance: Enables detector removal without disturbing fixed wiring

How to use

Mount the base on a prepared surface or junction box using appropriate screws and anchors for the substrate. Connect the alarm wiring to the base’s contact terminals following the fire alarm system wiring diagram and local electrical codes. Seat the compatible Hekatron detector onto the base, align the contacts and engage the locking mechanism until the detector is secure. For detector replacement, disengage the lock, lift the detector off the base and fit the new detector onto the base until it locks into place.

Recommendations

Install and service the mounting base only as part of an overall Hekatron system using compatible detectors to maintain system certification and reliability. Verify wiring connections and perform functional testing after installation. Avoid exposure to direct sunlight and harsh chemicals; inspect periodically for secure attachment and contact cleanliness.
