Asennussarja Bachmann 911.500 valkoinen

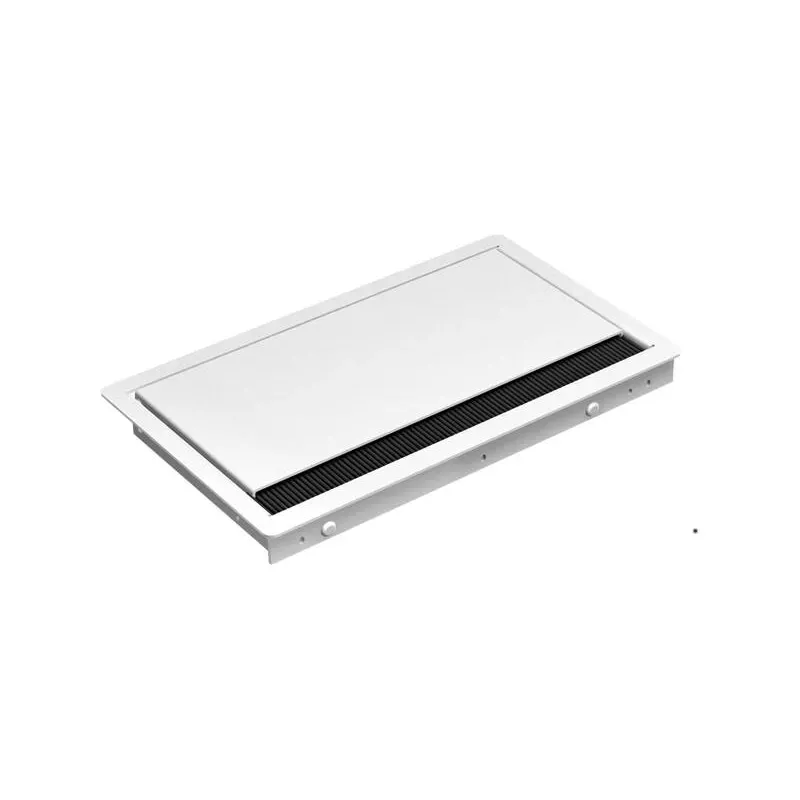

Bachmann CONI COVER short white (911.500) is a compact built-in frame designed for flush mounting in desks or tables. The short version has an R5 corner radius and a 24 mm installation depth, making it suitable for tabletops with a minimum thickness of 16 mm. Fixing is performed with four screws inserted from the inside through holes on the long sides of the frame. The unit is supplied with fitting instructions and cut-out dimensions.

Advantages

The CONI COVER short in satin white (RAL9010) provides a neat, low-profile finish and is compatible with a wide range of duct and furniture systems. Its integrated brush insert closes the opening even when cables pass through, and the product is particularly suitable for retrofitting installations. Outer dimensions are 248 x 149 mm.

Suitable for

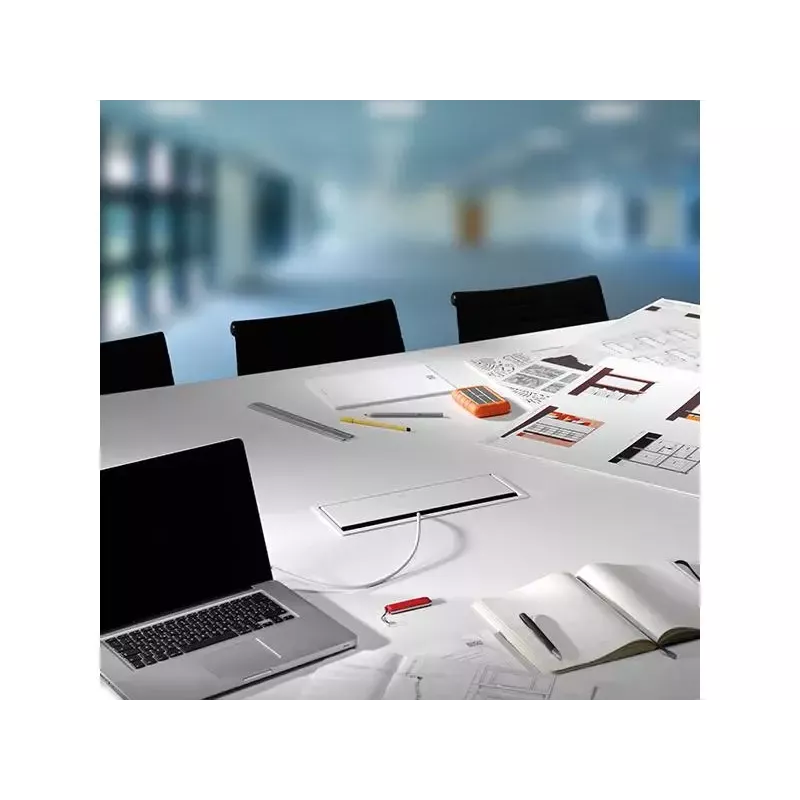

• Flush mounting in desks and worktops
• Retrofitting cable access in office furniture
• Use with various ducting and furniture systems
• Applications requiring a low installation depth (24 mm)

Key specifications

• Colour: Satin white RAL9010
• Outer dimensions: 248 x 149 mm
• Installation depth: 24 mm
• Minimum tabletop thickness: 16 mm

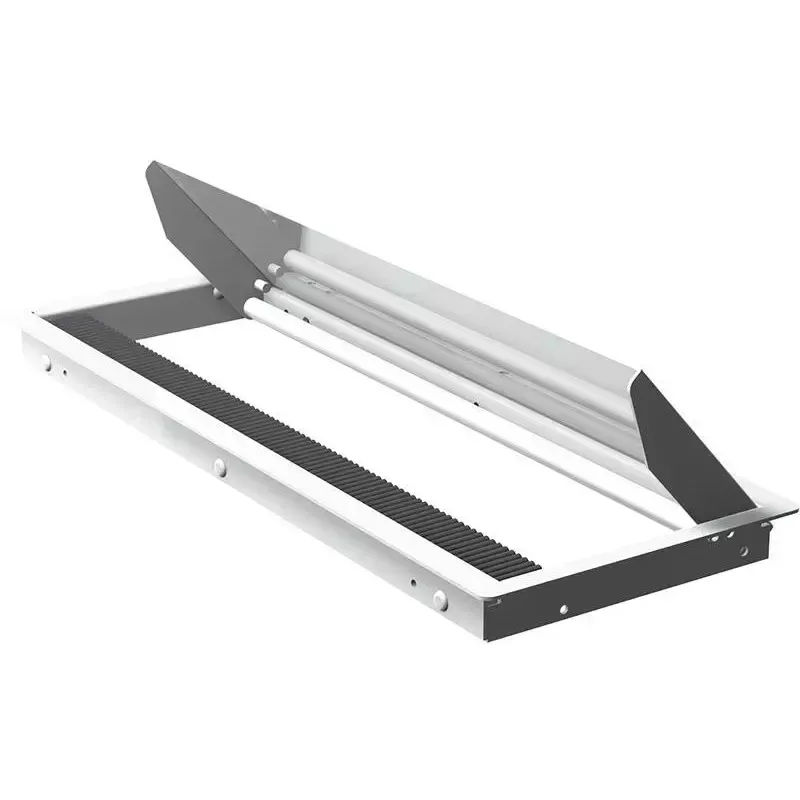

• Fixing: 4 screws from inside

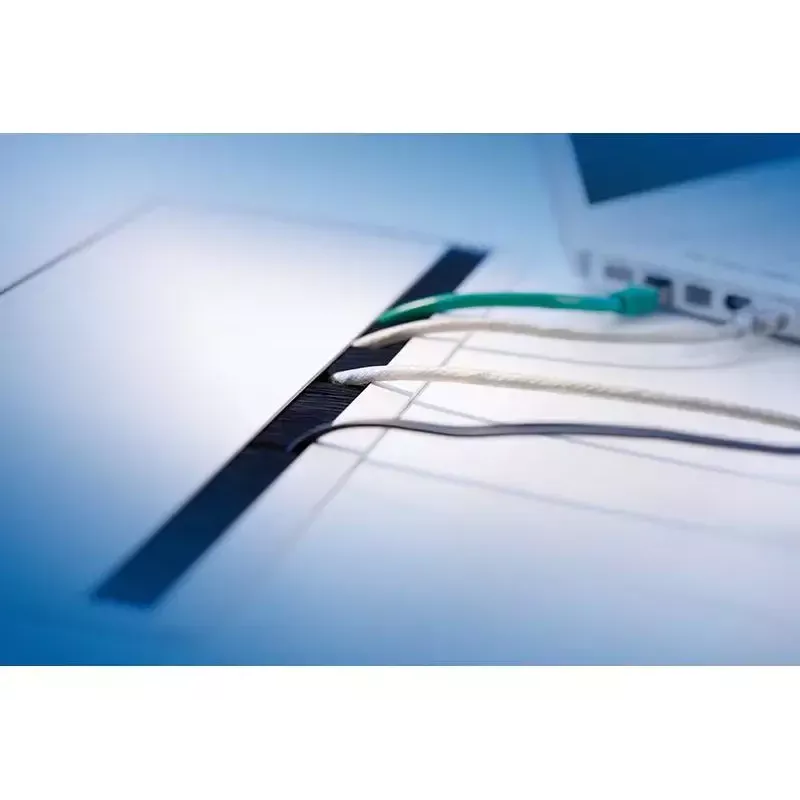

• Integrated brush insert for cable passage
• MPN: 911.500
• EAN: 4016514032051

How to use

Cut the required opening in the tabletop following the supplied cut-out dimensions. Place the built-in frame into the cut-out with the R5 corner radius aligned for a flush fit. From the inside, secure the frame to the tabletop using the four screws through the provided holes on the long sides. Insert cables through the brush insert to maintain a closed appearance while allowing cable passage. Refer to the fitting instructions included with the unit for detailed steps and measurements.

Recommendations

Ensure the tabletop thickness is at least 16 mm and check the cut-out dimensions against the supplied template before drilling. Use appropriate screw types for the tabletop material and route cables carefully to avoid damage to the brush insert.
