Asennussarja EFB Elektronik ET-25188.1

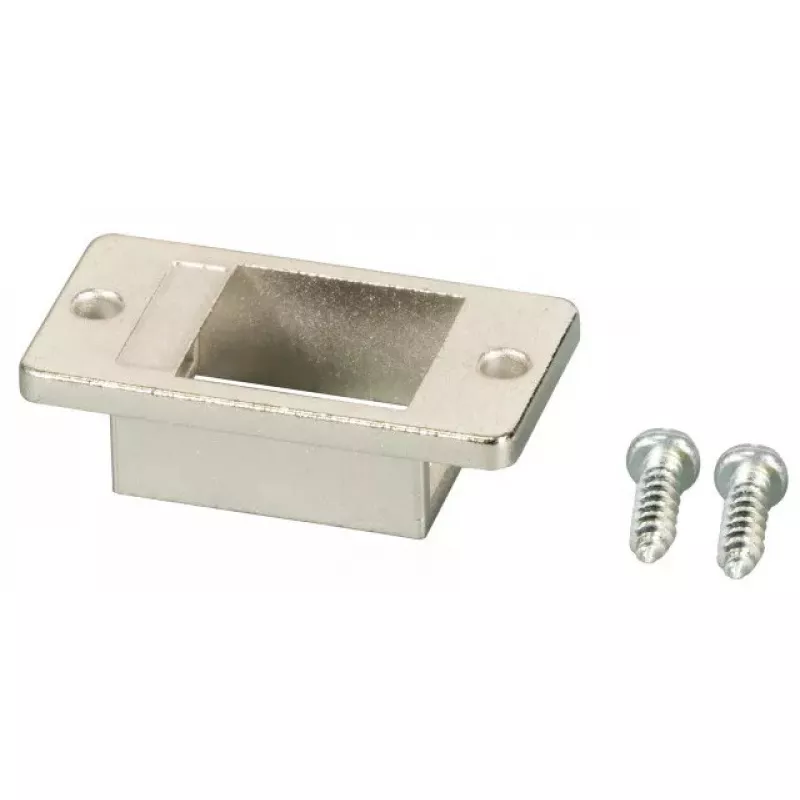

Mounting Kit EFB Elektronik ET-25188.1 is a compact installation frame for one keystone or adapter, made from zinc die-cast with a stainless-steel appearance. The frame is designed for universal use on flat surfaces, cable ducts or wood and metal covers and provides a straight 0° outlet with a breakout hole sized 24 x 18 mm. The kit includes a 1-port installation frame (modules not included) and two installation screws.

Advantages

The zinc-diecast housing offers durability and dimensional stability while the stainless-steel finish gives a corrosion-resistant surface. Its universal design fits a wide range of mounting situations and the compact dimensions (35.5 mm length, 19.2 mm width, 9.8 mm height) make it suitable for narrow installation spaces. Delivered ready for fast installation with the necessary screws included.

Suitable for

• Mounting a single keystone jack or adapter
• Installation on flat surfaces such as walls or panels
• Use in cable ducts and on wood or metal covers
• Applications requiring a straight 0° outlet

Key specifications

• Material: zinc die-cast (stainless steel appearance)
• Outlet angle: 0° (straight)
• Breakout hole: 24 x 18 mm
• Dimensions (L × W × H): 35.5 × 19.2 × 9.8 mm
• Scope of delivery: 1× installation frame 1-Port (without modules), 2× installation screws
• MPN: ET-25188.1, Brand: EFB Elektronik, EAN: 4049759186142

How to use

Mark the desired mounting position on a flat surface or cover, cut or punch a matching opening if needed, and align the breakout hole (24 × 18 mm) with the cable or connector path. Insert the keystone or adapter into the frame (module not included), position the frame against the surface, and fix it with the two supplied installation screws. Ensure the outlet is oriented at 0° for a straight cable exit and check that the assembly is firm before connecting any cables.

Recommendations

For a secure and long-lasting installation, use screws and wall plugs appropriate for the mounting surface. Avoid over-tightening the screws to prevent deformation of the zinc-diecast frame. Select compatible keystone modules or adapters that match the 24 × 18 mm breakout opening.
