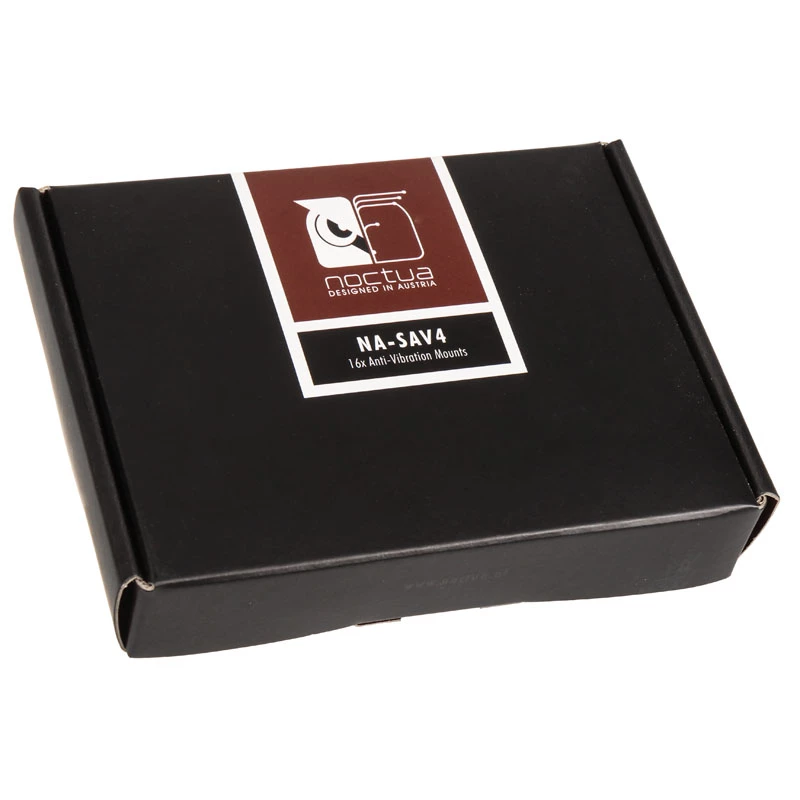

Asennussarja Noctua NA-SAV4 ruskea

The Noctua NA-SAV4 is a mounting kit that contains 16 NA-AV4 anti-vibration mounts designed for installing up to four case fans. The mounts replace standard fan screws and allow quick, vibration-free installation in standard fan mounting holes. Their flat case-side ends sit flush with the chassis panel to maintain a neat exterior appearance.

Advantages

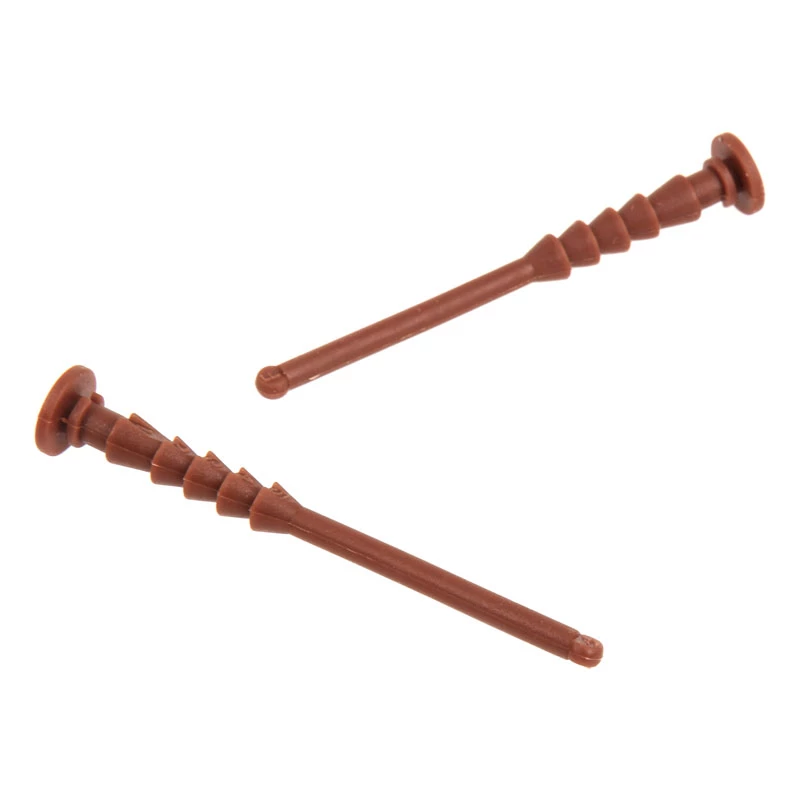

NA-AV4 mounts provide defined, numbered pawls that accommodate both standard open-corner fans (pawl 1) and closed-corner fans with thicknesses of 10, 14, 15, 20 or 25 mm (pawls 2–5). This flexibility makes the mounts suitable for slim and non-standard fans where other anti-vibration solutions may not fit. The rubberized design reduces vibration transfer to the case while replacing conventional screws for faster, tool-free installation.

Suitable for

• Mounting up to four 40 mm–120 mm case fans using anti-vibration mounts
• Installing slim fans with closed corners (10, 14, 15, 20 or 25 mm thickness)
• Replacing standard fan screws to reduce vibration and noise transmission

Key specifications

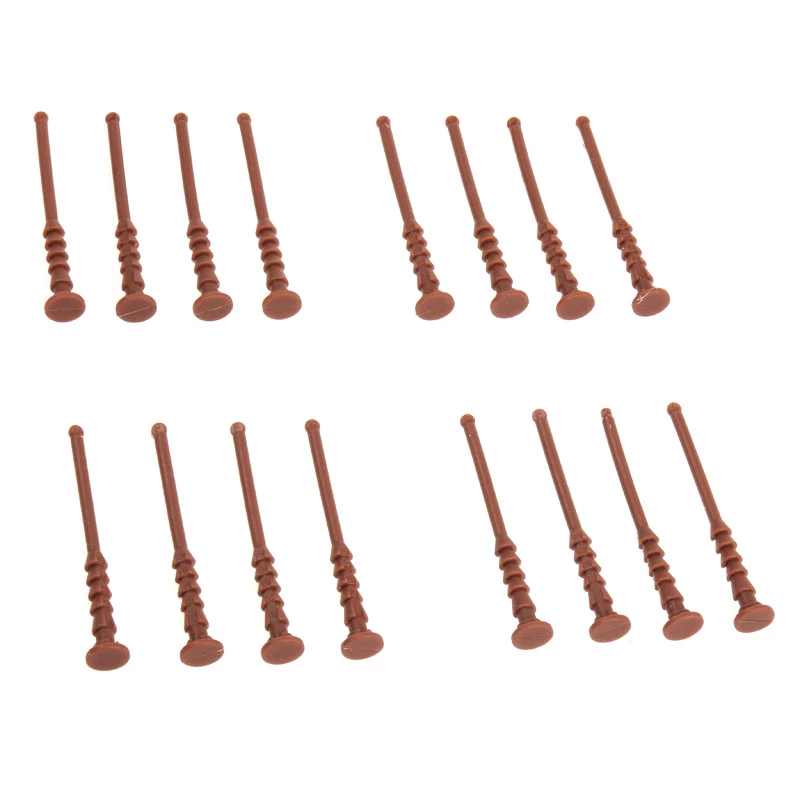

• Contents: 16 × NA-AV4 anti-vibration mounts (sufficient for up to 4 fans)
• Compatible fan corner types: open-corner and closed-corner (pawls 1–5)
• Supported closed-corner thicknesses: 10, 14, 15, 20, 25 mm
• Colour: Brown
• Manufacturer MPN: NA-SAV4
• EAN: 9010018200256

How to use

Remove any existing fan screws and insert the NA-AV4 mounts through the fan’s mounting holes into the case panel. Select the appropriate numbered pawl position to match the fan corner type and thickness, then push the mount until it locks securely. The flat case-side end will sit flush with the chassis. No tools are required for installation; to remove, pull the mount out from the case side.

Recommendations

For best anti-vibration performance, ensure each fan corner uses the correct pawl number for its corner design and thickness. Verify that the mounts sit flush on the case panel and check alignment before powering the system.
