ASUS ROG Equalizer 12V-2x6 PCIe 5.1 / ATX 3.1 -näytönohjaimen virtakaapeli, 0,75 m, 16 AWG, musta (90YE00BN-B0QA00)

The ASUS ROG Equalizer is a high-performance 12V-2x6 GPU power cable engineered to deliver cooler, safer and more balanced power to modern high-end graphics cards. Fully compliant with the ATX 3.1 and PCIe 5.1 specifications, this 0.75 m cable replaces the standard 12V-2x6 (16-pin) power lead supplied with a power supply and addresses the uneven current distribution and connector overheating that can affect demanding GPU configurations.

Advantages

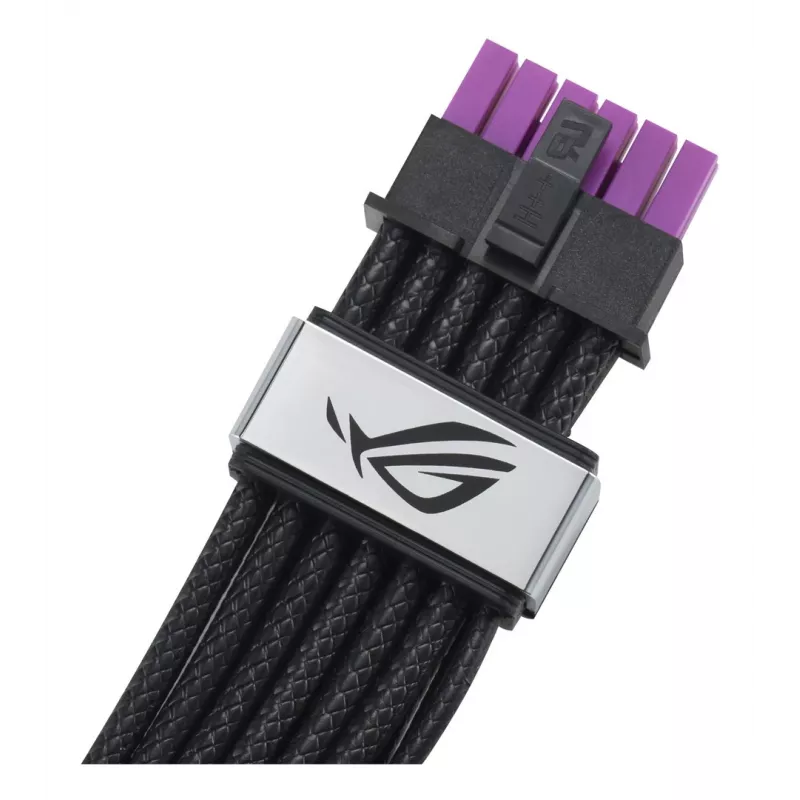

At the heart of the ROG Equalizer is a current-balancing bridge built into the GPU-side connector: all six 12 V conductors converge on a shared current rail, with a second rail doing the same for the ground conductors. This equalises the load across the individual pins instead of letting a single overloaded wire run hot, helping to keep connector temperatures comfortably below the 105 degC material limit. Each pin is rated to handle a short-term peak of up to 17 A, far beyond the roughly 9.2 A per wire of a conventional 12V-2x6 cable. Tin-plated oxygen-free copper conductors offer ultra-high conductivity and low resistance, while gold-plated spring contacts on the GPU-side connector reduce contact resistance and survive repeated plug cycles.

Suitable for

• High-end gaming and workstation PCs using a 12V-2x6 / 12VHPWR graphics card
• GeForce RTX 40 and RTX 50 series and other GPUs drawing high power through a single 16-pin connector
• Enthusiasts and system builders who want safer, cooler power delivery and tidier cable management
• Upgrading an existing ATX 3.1 / PCIe 5.1 power supply with a higher-quality 12V-2x6 cable

Key specifications

• Brand: ASUS ROG
• Model: ROG Equalizer
• Manufacturer part number (MPN): 90YE00BN-B0QA00
• EAN: 4711636451680
• Type: Internal 12V-2x6 GPU power cable
• Connectors: 12V-2x6 (16-pin) on both ends, straight
• Standards: ATX 3.1 and PCIe 5.1 compliant
• Current rating: up to 17 A peak per pin
• Conductor: tin-plated oxygen-free copper, 16 AWG
• Cable length: 0.75 m (750 mm)
• Colour: black braided sleeve

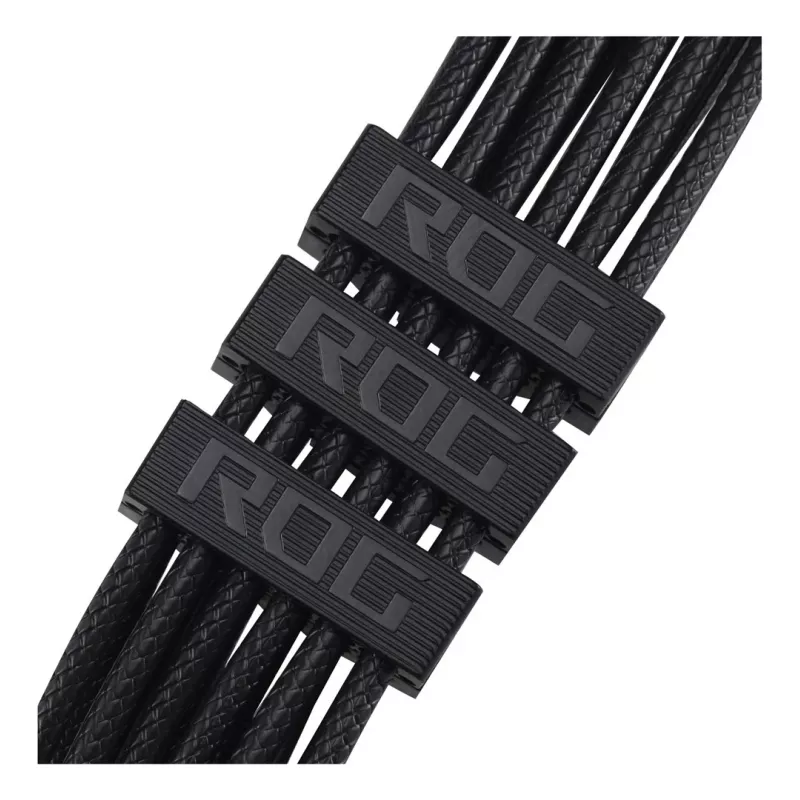

• Included: cable with quick-release cable comb (x3) and quick start guide
• Warranty: 3 years

How to use

Power down the system and disconnect it from the mains. Plug the cable into the 12V-2x6 (PCIe 5.1) output on an ATX 3.1 power supply, then route it to the graphics card and seat the GPU-side connector fully until it clicks. Use the supplied quick-release cable combs to keep the wires neat and evenly spaced, then close the case and power on.

Recommendations

If you run a high-wattage graphics card through a single 16-pin connector, the ROG Equalizer is an inexpensive upgrade that meaningfully improves power-delivery safety. Always ensure the connector is fully inserted at both ends before powering up to take full advantage of the balanced-current design.
