ASUS Z11PA-D8 palvelinemo - Dual Socket P LGA 3647, Intel C621, SSI CEB, IPMI

Harness the power of dual Intel Xeon Scalable processors with the ASUS Z11PA-D8, a server motherboard engineered for uncompromising performance in data centers and workstations. Supporting up to 1TB of DDR4 memory and featuring advanced remote management, this SSI CEB board delivers the scalability and reliability your critical workloads demand.

Overview

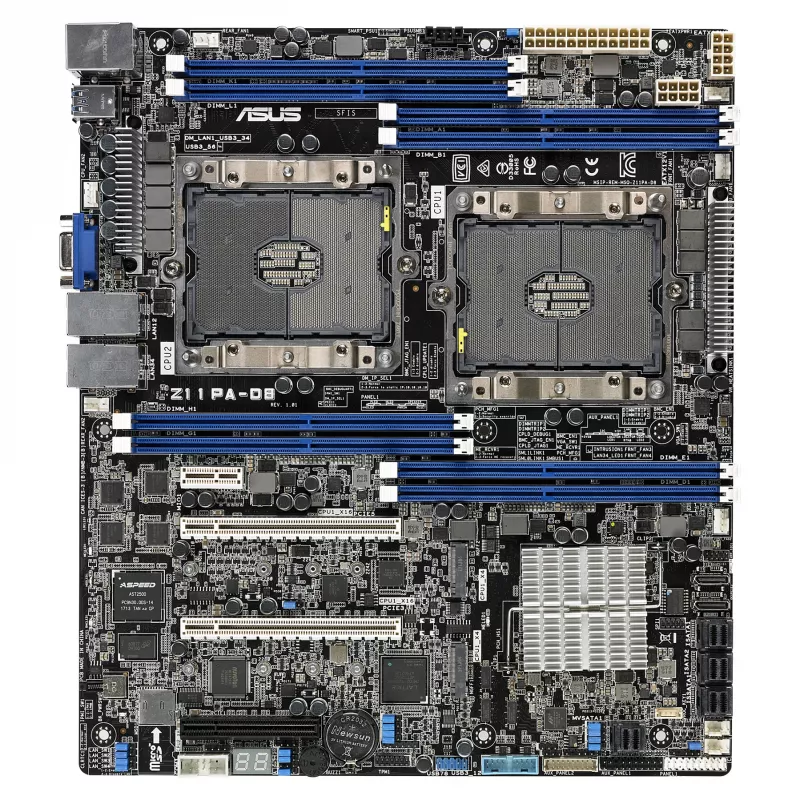

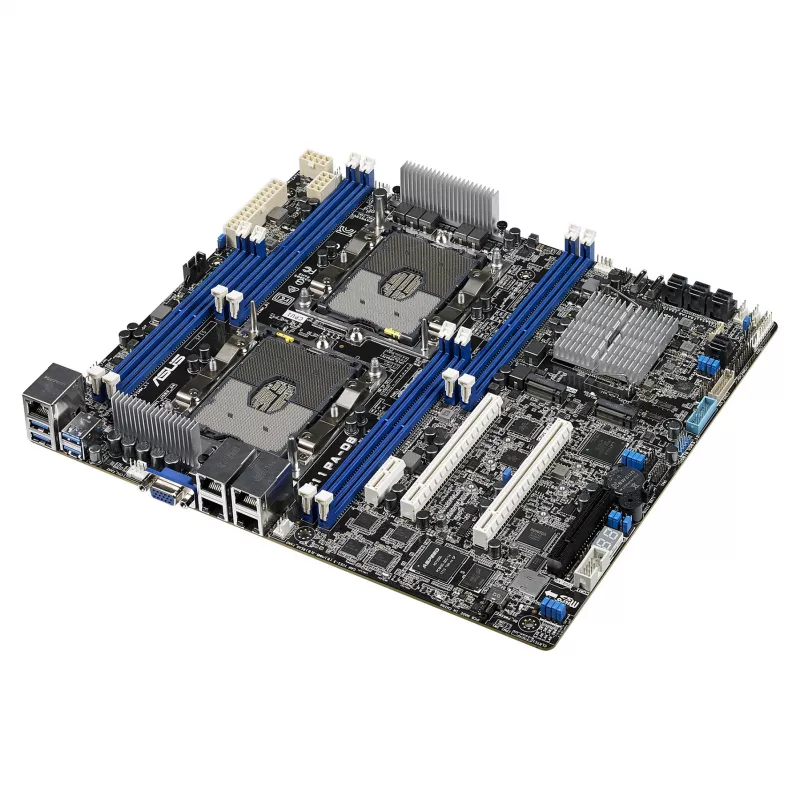

The ASUS Z11PA-D8 is built on the Intel C621 chipset, offering a robust platform for dual Intel Xeon Scalable processors (Skylake-SP and Cascade Lake-SP). With eight DIMM slots supporting RDIMM, LRDIMM, and 3DS LRDIMM modules, it provides exceptional memory bandwidth and capacity. The SSI CEB form factor (12" x 10.5") ensures compatibility with a wide range of server chassis, while comprehensive management features simplify remote administration.

What stands out

• Dual Socket P (LGA 3647) support for Intel Xeon Scalable processors, up to 28 cores per CPU.
• Eight DDR4 DIMM slots with support for up to 1TB of 3DS LRDIMM memory, ideal for memory-intensive applications.
• Integrated ASMB9-iKVM management module with IPMI 2.0 for out-of-band server monitoring and control.
• Dual Intel I210AT Gigabit LAN ports plus a dedicated management LAN port for reliable network connectivity.
• Flexible storage options: 8 x SATA 6Gb/s and 2 x OCuLink ports (supporting up to 4 NVMe or 8 SATA devices) for high-speed data access.

Technical details

• CPU Socket: Dual Socket P (LGA 3647)
• Supported CPUs: Intel Xeon Scalable Processors (Skylake-SP / Cascade Lake-SP)
• Chipset: Intel C621
• Form Factor: SSI CEB (12" x 10.5")
• Memory Slots: 8 x DDR4 DIMM slots
• Memory Type: DDR4 RDIMM, LRDIMM, 3DS LRDIMM
• Max Memory Capacity: Up to 1TB (3DS LRDIMM) / 512GB (RDIMM/LRDIMM)
• PCIe Expansion Slots: 2 x PCIe 3.0 x16, 1 x PCIe 3.0 x8, 1 x PCIe 3.0 x4
• M.2 Slots: 1 x M.2 (PCIe 3.0 x4, 2242/2260/2280/22110)
• Storage Interfaces: 8 x SATA 6Gb/s, 2 x OCuLink (for 4 x NVMe or 8 x SATA)
• LAN Ports: 2 x Gigabit Ethernet (Intel I210AT), 1 x Management LAN
• Onboard Graphics: Aspeed AST2500 with 64MB VRAM
• Management Solution: ASMB9-iKVM (IPMI 2.0)

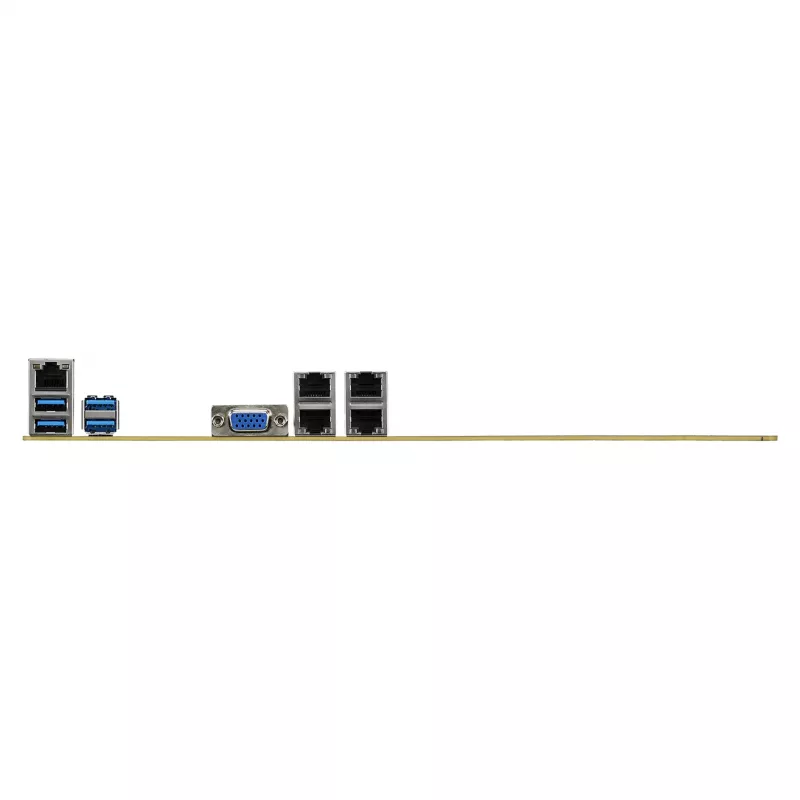

• Rear USB Ports: 2 x USB 3.0, 2 x USB 2.0
• Power Connectors: 1 x 24-pin ATX, 2 x 8-pin ATX 12V
• RAID Support: Intel C621 RAID 0, 1, 5, 10 (SATA)

Our verdict

The ASUS Z11PA-D8 is a formidable foundation for dual-socket server builds, combining massive memory capacity, versatile storage options, and enterprise-grade management in a standard form factor.
