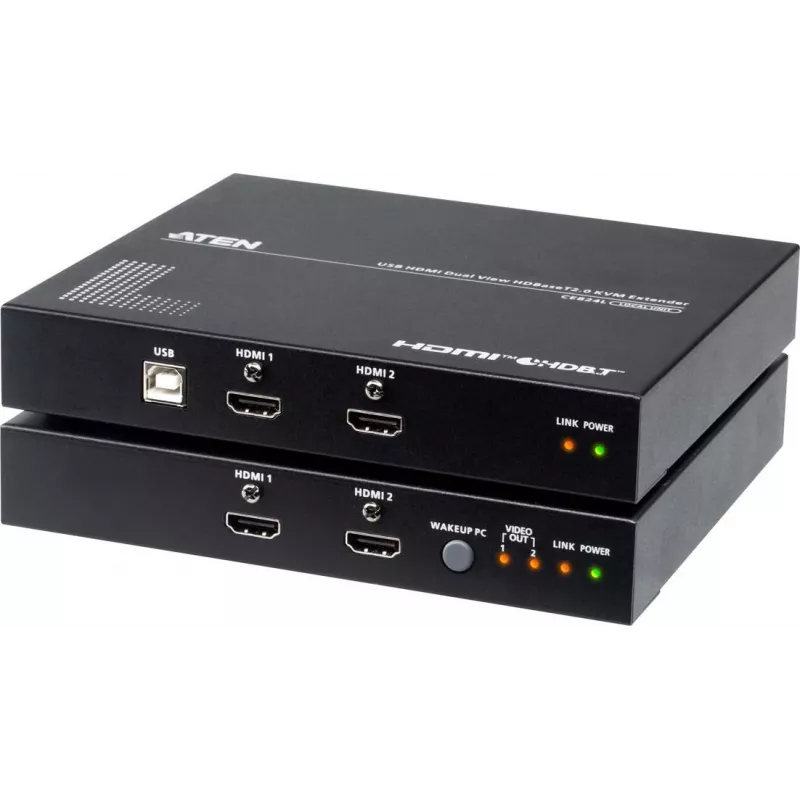

ATEN CE824 USB-HDMI Dual-View HDBaseT 2.0 KVM-jatko

The ATEN CE824 is a high-performance USB-HDMI Dual-View KVM Extender utilizing HDBaseT 2.0 technology to extend your workstation up to 150 meters over a single Cat 5e/6/6a/7 cable. It supports dual HDMI displays with resolutions up to 4K @ 30Hz, providing a seamless and lag-free experience for demanding applications.

Advantages

With near-zero latency and Power over HDBaseT (PoH), the remote unit is powered directly from the local unit, eliminating the need for an additional power supply at the remote end. The extender supports USB 2.0 peripherals, stereo audio, and RS-232 serial control, making it ideal for extending KVM consoles in control rooms, digital signage, and industrial environments.

Suitable for

• Control room operators requiring dual-monitor setups
• Digital signage and video wall management
• Industrial automation and remote workstation access
• Broadcast and post-production studios

Key specifications

• KVM Technology: HDBaseT 2.0
• Video Input (Local Unit): 2x HDMI
• Video Output (Remote Unit): 2x HDMI
• USB Ports (Local Unit): 1x USB Type B (PC), 1x USB Type A (Console)
• USB Ports (Remote Unit): 4x USB Type A (Peripherals)
• Max Resolution: 3840 x 2160 @ 30Hz
• Max Extension Distance (4K): 100m (Cat 6a/7)
• Max Extension Distance (1080p): 150m (Cat 5e/6/6a/7)
• Video Features: Dual View, HDCP 2.2 Compatible, EDID Technology
• USB Standard: USB 2.0 Full Speed (12 Mbps)
• Audio Support: Stereo Audio (Line-in/out)
• Serial Communication: RS-232 (DB-9)
• Power over HDBaseT (PoH): Yes
• Latency: Near-zero
• Control Methods: Pushbutton, RS-232, OSD
• Cable Requirement: Cat 5e/6/6a/7
• ESD Protection: 8KV Contact / 15KV Air
• Mounting Options: Rack Mountable (with optional kit)

Recommendations

For optimal performance at 4K resolution, use Cat 6a or Cat 7 cabling. The extender is compatible with all major operating systems and supports HDCP 2.2 for protected content.
