ATEN CL5708N Rack-konsoli 48,3 cm (19") musta 1HE

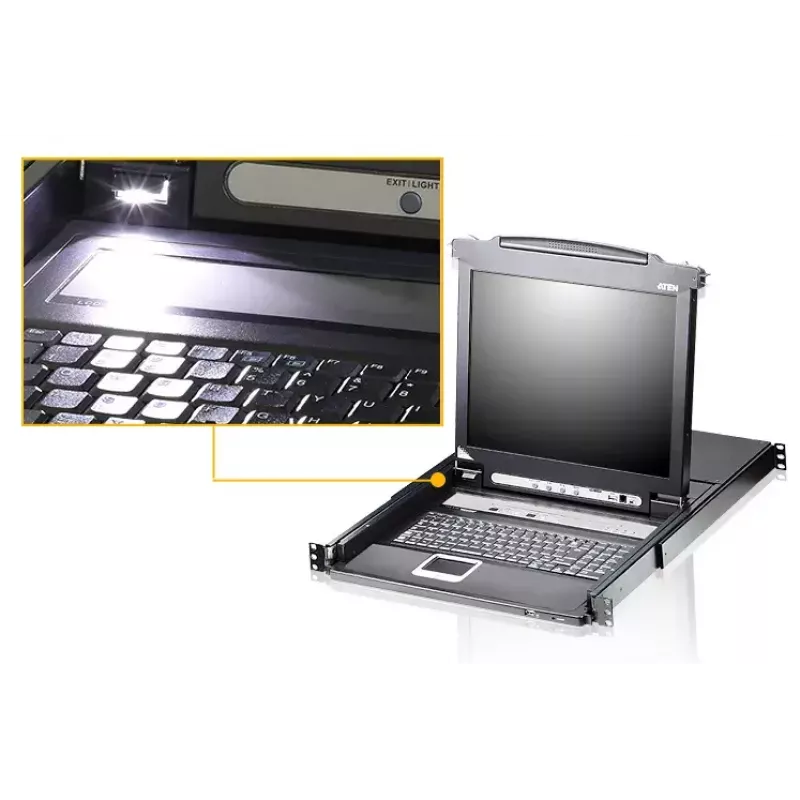

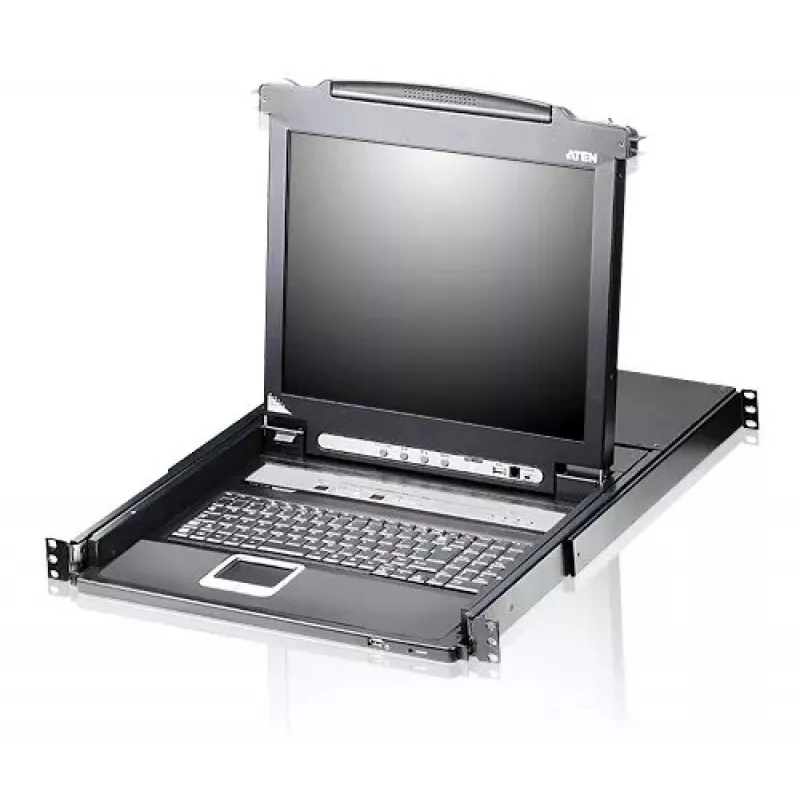

The ATEN CL5708N Rack mounting Black KVM switch provides centralized control of up to 8 computers from a single keyboard, video and mouse (KVM) console. The unit integrates a 19" LED-backlit LCD display with a maximum resolution of 1280 x 1024 pixels in a 1U rack-mountable sliding housing, allowing convenient access in server racks while saving space. Constructed from metal and plastic, the CL5708N supports USB mouse connectivity and offers configurable scanning intervals to suit continuous monitoring and routine server management.

Advantages

The CL5708N consolidates a keyboard, 19" LCD monitor and touchpad into a single 1U rackable enclosure, reducing the need for multiple consoles in a server room. Its support for USB mouse connections ensures compatibility with modern peripherals, while the durable metal and plastic construction is designed for rack-mounted environments. The device's configurable scan interval and daisy-chain capability allow scalable monitoring of multiple systems from one console.

Suitable for

• Data center rack cabinets where space efficiency is required
• Small to medium server rooms managing up to 8 servers from a single console
• Environments that require USB mouse support for administrative tasks
• Setups that may expand using daisy-chained KVM switches for larger installations

Key specifications

• Maximum number of computers controlled: 8
• Integrated display size: 19" LED-backlit LCD
• Maximum display resolution: 1280 x 1024 pixels
• Rack mounting: 1U, slideaway design
• Mouse port type: USB
• Construction materials: metal and plastic
• Scan interval range: configurable between 1 and 255 seconds
• Product colour: Black
• Weight: 13.39 kg

How to use

Install the CL5708N into a compatible 1U rack slot using the supplied mounting hardware and slide it into place. Connect the console keyboard and USB mouse to the front-panel ports and route video and peripheral cables from each target computer to the corresponding KVM ports on the rear panel. Power the unit and use the front-panel controls or on-screen display to select the active computer, adjust the display resolution to the supported maximum, and configure the scan interval. For larger deployments, connect additional compatible KVM switches in a daisy-chain arrangement to expand control up to the supported limit.

Recommendations

For reliable operation, mount the switch in a stable rack location with adequate ventilation, use high-quality USB and video cabling, and configure an appropriate scan interval to balance monitoring frequency and console responsiveness. When expanding the installation by daisy-chaining, verify cable lengths and compatibility to maintain signal integrity.
