LevelOne 19" widescreen LCD KVM-telinekonsoli, US-näppäimistö

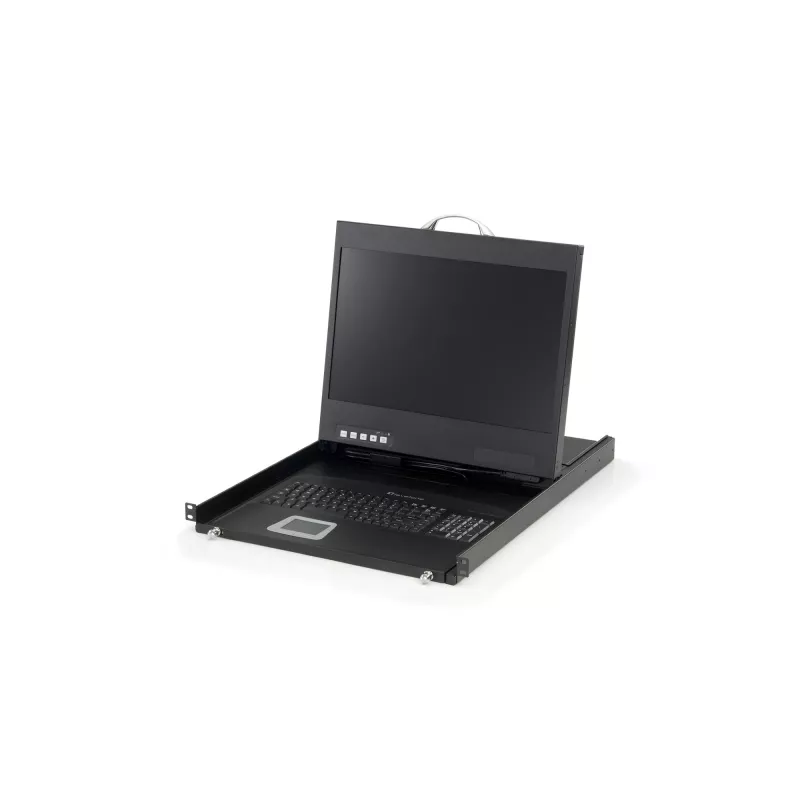

The LevelOne KVM-8901 is a compact modular KVM console drawer designed for installation in a standard 19-inch server rack. It accepts an optional KVM module (KCM-0832 or KCM-1632) to provide connectivity for either 8 or 16 computers and includes a 19-inch retractable LCD monitor (19:10) with a maximum resolution of 1440 x 900, an integrated keyboard and a built-in touchpad. The unit supports daisy-chaining up to eight KCM-0832/1632 modules to enable centralized control of up to 128 computers and offers both manual and automatic monitoring options.

Advantages

The modular design allows flexibility in capacity by installing the appropriate KVM module (8- or 16-port). Dual-interface support (PS/2 and USB) ensures compatibility with a wide range of servers and workstations. A compact 19-inch retractable display, integrated keyboard and touchpad save rack space and simplify access. Support for auto scan mode, OSD menus and keyboard hotkeys makes system monitoring and computer selection straightforward. Password protection restricts access to authorized users only.

Key specifications

• Model: LevelOne KVM-8901
• Compatible KVM modules: KCM-0832 (8-port), KCM-1632 (16-port)
• Maximum connected computers (with daisy-chaining): up to 128 (8 units)
• Display: 19-inch retractable LCD, aspect ratio 19:10
• Maximum resolution: 1440 x 900
• Interfaces: PS/2 and USB (dual interface for keyboard/mouse)
• Switching: Keyboard hotkeys and On-Screen Display (OSD) menus
• Auto scan mode: supported
• Access control: password protection
• Supported platforms: Windows, Mac OS X, Sun, Linux

How to use

Install the KVM-8901 into a standard 19-inch rack and fit the required KVM module (KCM-0832 or KCM-1632) depending on the number of computers to be managed. Connect each computer to the module using the appropriate cables and chain additional KVM modules if more ports are required. Power on the console and connected computers, then use keyboard hotkeys or the OSD menu to select and switch between computers. Enable auto scan mode when continuous monitoring of selected systems is needed. Configure password protection through the OSD to restrict access.

Recommendations

For reliable operation, use the LevelOne KVM modules specified (KCM-0832 or KCM-1632) and quality PS/2 or USB cables. When managing large installations, plan the daisy-chain layout to maintain signal integrity and assign unique passwords to prevent unauthorized access.
