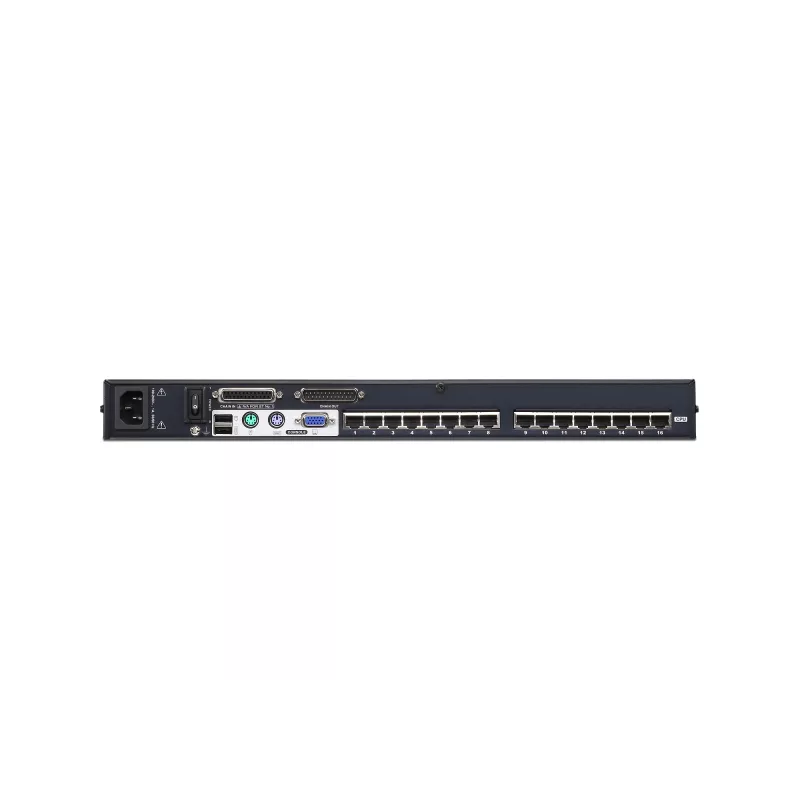

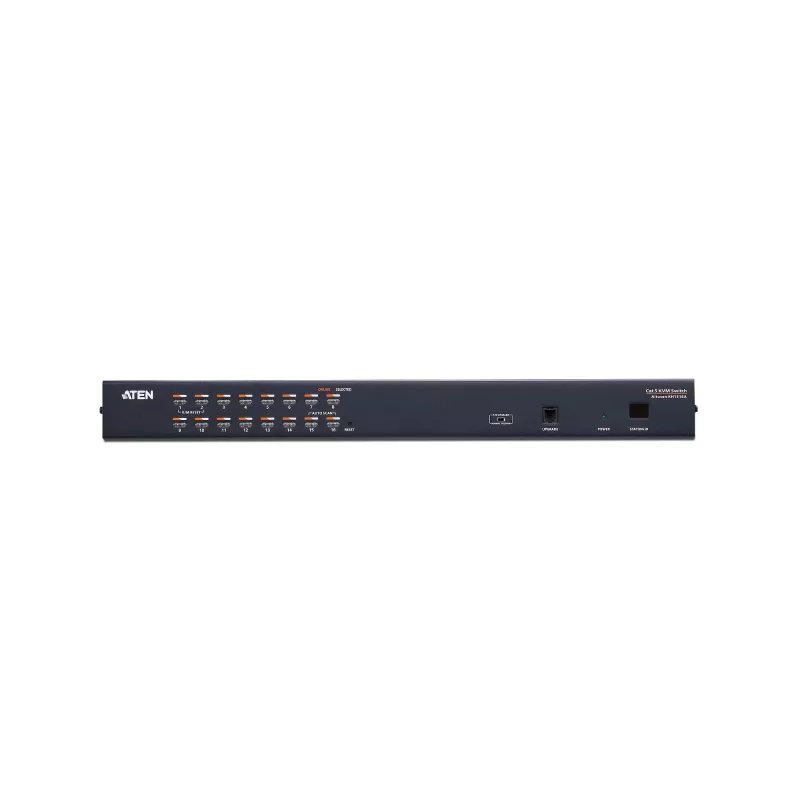

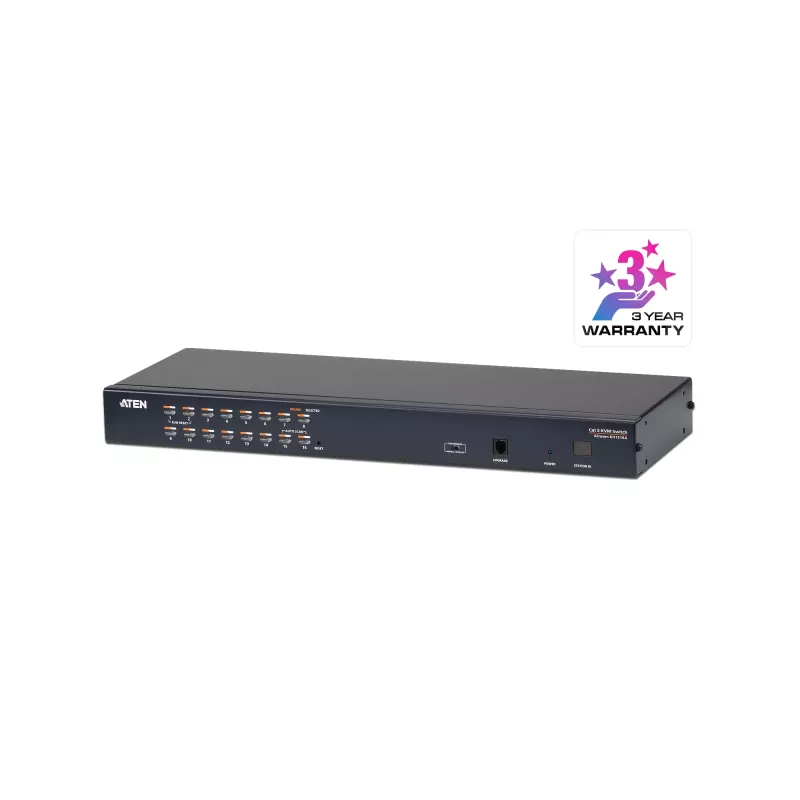

ATEN KH1516A KVM-kytkin musta

The ATEN KH1516A KVM switch allows one keyboard, monitor and mouse (KVM) console to control up to 16 directly connected computers using space-saving RJ-45 connectors and Cat 5e/6 cabling. The unit supports mixed KVM console and computer combinations (USB and PS/2) and offers high video quality with support for resolutions up to 1600x1200@60Hz at distances up to 40 meters and 1280x1024@75Hz up to 50 meters. The KH1516A is firmware-upgradeable and can be daisy-chained with up to 31 additional units to manage as many as 512 computers from a single console.

Advantages

The KH1516A provides compact, high-density KVM switching with RJ-45/Cat 5e/6 cabling to reduce cable bulk and simplify installation. It supports multiple access methods—front-panel pushbuttons, hotkeys and a multi-language OSD—and accommodates mixed-platform environments including PC, Mac, Sun and serial systems. Security and user management include two-level password protection with one administrator and up to ten user accounts, configurable per-port access rights, auto-scan and broadcast mode for simultaneous command execution across connected systems. Firmware is upgradeable via the supplied cable and adapter series.

Suitable for

• Data centers and server rooms requiring centralized control
• IT closets and network operation centers managing multiple servers
• Environments with mixed USB and PS/2 computers
• Installations where cable space and rack density are priorities

Key specifications

• Model: ATEN KH1516A
• Ports: 16 computer ports (Cat 5e/6 via RJ-45)
• Console interfaces: Keyboard (USB, PS/2), Mouse (USB, PS/2), Video (VGA)
• Video support: up to 1600x1200@60Hz (up to 40 m); 1280x1024@75Hz (up to 50 m)
• Security: 1 administrator and up to 10 user accounts, two-level password protection
• Switching methods: Front-panel pushbuttons, hotkey, OSD (multi-language)
• Daisy chain: Up to 31 additional KH1516A units (control up to 512 computers)
• Included accessories: Firmware upgrade cable, power cord (0AD8-0C05-24EG), rack mount kit, foot pad set (4 pcs), user instructions
• Color: Black

How to use

Connect the KVM console (keyboard, monitor, mouse) to the console ports, then connect each target computer to the KH1516A using Cat 5e/6 cabling and the appropriate KVM adapter cables. Select connected computers using the front-panel pushbuttons, hotkey sequence or the on-screen display. Configure user accounts and port access rights via the OSD to restrict or grant control as required. For larger installations, daisy-chain additional KH1516A units using the recommended cabling and adapters to expand control to more servers.

Recommendations

Use quality Cat 5e or Cat 6 cables and ATEN KA7000-series adapter cables for reliable video and peripheral signals. Place the unit in a ventilated rack space and perform firmware updates using the supplied firmware upgrade cable when updates are available to ensure compatibility and security.
