ATEN USB - HDMI - Cat5e/6 KVM-sovitinkaapeli (CPU-moduuli)

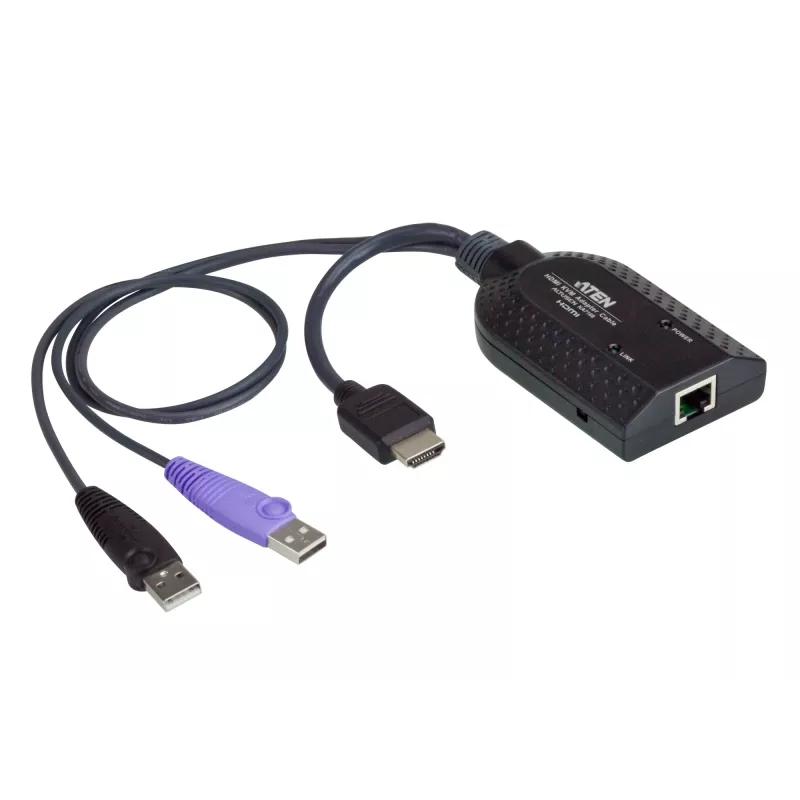

The ATEN KVM Adapter Cable KA7168-AX connects a KVM switch to a target computer using HDMI for video and USB for peripheral/CAC reader support. It functions as a compact CPU module with an HDMI output, a USB keyboard/data plug and an RJ-45 connector for extension over Cat5e/6, combining small size and light weight with improved signal compensation and delay skew technologies to deliver enhanced video quality.

Advantages

The KA7168-AX supports HDMI output and provides a USB connection for Smart Card/CAC support on compatible systems. Its lightweight, compact design makes it easy to install and route in constrained spaces. Enhanced signal compensation and delay skew technologies improve video clarity over extended cable runs. The adapter is compatible with many ATEN KVM switches for streamlined integration.

Suitable for

• Connecting a KVM switch to a desktop or workstation with HDMI and USB ports
• Extending keyboard, video and mouse signals over Cat5e/6 cabling
• Use where a compact, lightweight CPU module is required
• Environments that need Smart Card/CAC reader support (check switch compatibility)

Key specifications

• Model: KA7168-AX
• Video output: HDMI
• USB: USB keyboard/peripheral plug; supports Smart Card/CAC where supported by switch
• Connector for extension: RJ-45 (Cat5e/6)
• Weight: 0.104 kg
• Dimensions (approx.): 91 mm depth, 21.2 mm height
• Colour: Black

How to use

Connect the HDMI and USB plugs of the KA7168-AX to the corresponding ports on the target computer, then connect the RJ-45 end to the KVM switch or Cat5e/6 extension cable. Ensure the target computer is powered on and the KVM switch is configured to the appropriate port. If Smart Card/CAC reader functionality is required, confirm that your specific ATEN KVM switch model supports that feature before use.

Recommendations

Do not expect virtual media or CAC reader functions with certain ATEN switch models (for example: KH1508A, KH1516A, KH1508Ai, KH1516Ai, KL1508A, KL1516A, KL1508Ai, KL1516Ai, KH2508A, KH2516A, KN2116A, KN4116, KN2132, or KN4132). For best video performance, use quality Cat5e/6 cabling and avoid excessive cable lengths beyond recommended ranges.
