AUO näyttö 11,6", 1366x768, 60Hz, mattapintainen, 30-pin, oikea

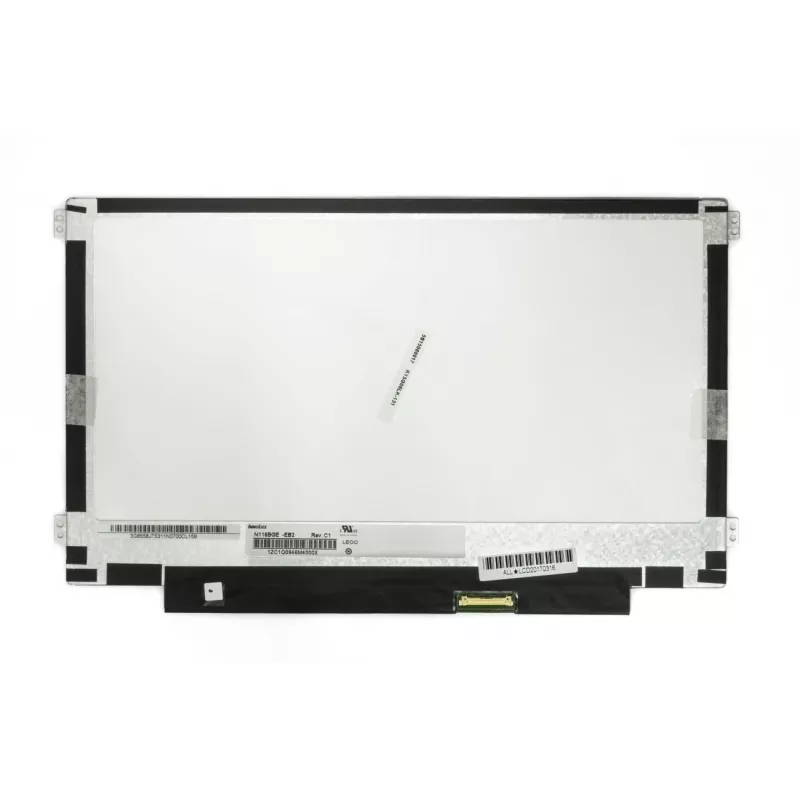

A cracked or dim laptop screen makes the whole device unusable. This AUO LC300549 11.6-inch LCD panel restores a bright, clear display with a matte finish that reduces glare in office lighting or near windows. It replaces the original panel in compatible laptops using a 30-pin eDP connector on the right side.

Who is it for

This panel is for repair technicians and confident DIYers who need a reliable replacement screen for a laptop with an 11.6-inch display, 1366x768 resolution, and a 30-pin eDP connection on the right. It is a bare panel without a bezel or mounting brackets, so you reuse the existing frame from the old screen.

Main features

• 11.6-inch LCD with 1366x768 (WXGA) resolution and 16:9 aspect ratio
• Matte (anti-glare) surface reduces reflections
• 60 Hz refresh rate for smooth everyday use
• 30-pin eDP connector positioned on the right side (viewed from the back)
• LED backlight, TFT active matrix, no touchscreen

Specifications

• Brand: AUO
• Model: LC300549
• Screen size: 11.6 inch
• Resolution: 1366 x 768
• Refresh rate: 60 Hz
• Panel type: LCD
• Backlight: LED
• Surface: Matte (anti-glare)
• Connector: 30-pin eDP, right side
• Touchscreen: No
• Bezel included: No
• Mounting brackets included: No
• Interface voltage: 3.3V

Tips

Before ordering, confirm your laptop uses a 30-pin eDP connector on the right and that the original screen is 11.6 inches with 1366x768 resolution. Handle the panel by its edges and use an anti-static wrist strap to avoid damage.
