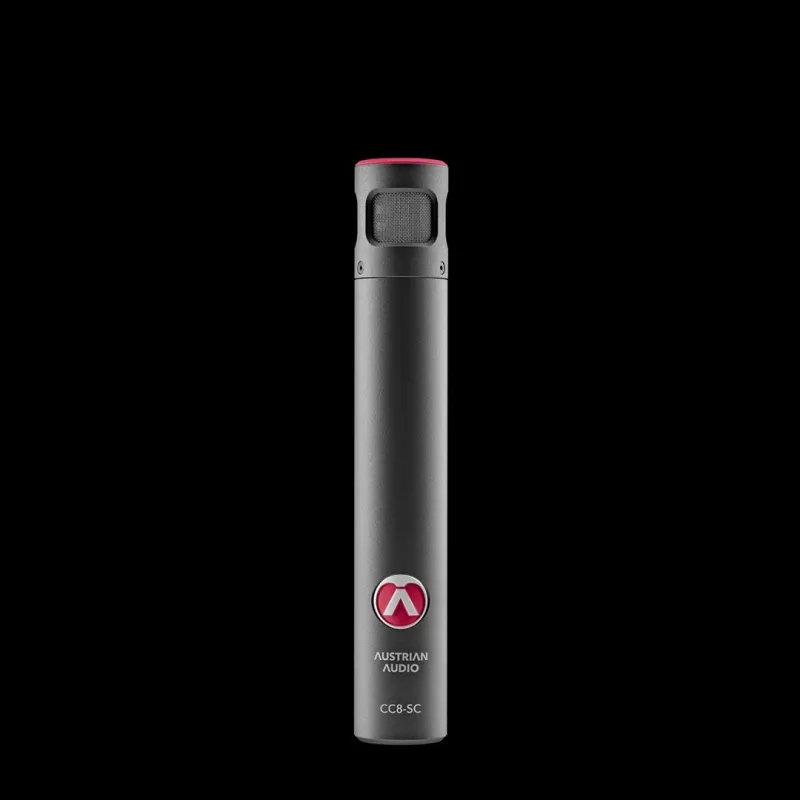

Austrian Audio CC8-SC kondensaattorimikrofoni

The Austrian Audio CC8-SC is a professional true condenser microphone featuring a small diaphragm and cardioid polar pattern. Designed for studio and stage applications, it delivers exceptional clarity and detail across a wide frequency range of 20 Hz to 20 kHz. With switchable pads (-10 dB, -20 dB) and high-pass filters (60 Hz, 120 Hz), the CC8-SC offers versatile control for capturing instruments, vocals, and more.

Advantages

True condenser capsule (OCC7) ensures accurate sound reproduction. Low self-noise (16 dB SPL A-weighted) and high dynamic range (140 dB) make it ideal for critical recording. The -20 dB pad allows handling of extreme SPL up to 156 dB. Robust construction and XLR connectivity guarantee reliable performance.

Suitable for

• Studio recording of acoustic instruments, overheads, and vocals
• Live sound reinforcement for instruments and vocals
• Broadcast and podcasting applications
• Field recording and location sound

Key specifications

• Transducer Principle: True Condenser
• Polar Pattern: Cardioid
• Frequency Range: 20 Hz - 20 kHz
• Sensitivity: 15 mV/Pa
• Equivalent Noise Level: 16 dB SPL (A-weighted)
• Max SPL: 156 dB SPL (with -20 dB pad)
• Impedance: 275 Ohms
• Recommended Load Impedance: > 1 kOhm
• Supply Voltage: 48 V Phantom Power (P48)
• Current Consumption: 2.2 mA
• Connector: XLR 3-pin
• Switchable Pad: -10 dB, -20 dB
• Switchable High-Pass Filter: 60 Hz (2nd order), 120 Hz (2nd order)
• Capsule Type: OCC7 True Condenser Capsule
• Diaphragm Type: Small Diaphragm
• Dynamic Range: 140 dB

Recommendations

The Austrian Audio CC8-SC is a versatile and high-quality condenser microphone suitable for a wide range of professional audio applications. Its transparent sound and robust features make it a valuable addition to any studio or live sound setup.
